LeeBoy 8520C: transport dimensions, weight and how it ships overseas
At 8 ft 6 in (2.59 m) wide, the LeeBoy 8520C is wider than a container door in one piece (7 ft 8 in / 2.34 m), so it ships whole on a 40 ft flat rack (7 in / 0.19 m over width, 5 in / 0.13 m over height). RoRo is the alternative where a lane serves your port.
- Transport length
- 13 ft 10 in / 4.22 m
- Transport width
- 8 ft 6 in / 2.59 m
- Transport height
- 6 ft 10 in / 2.08 m
- Weight
- 22,100 lb / 10,024 kg

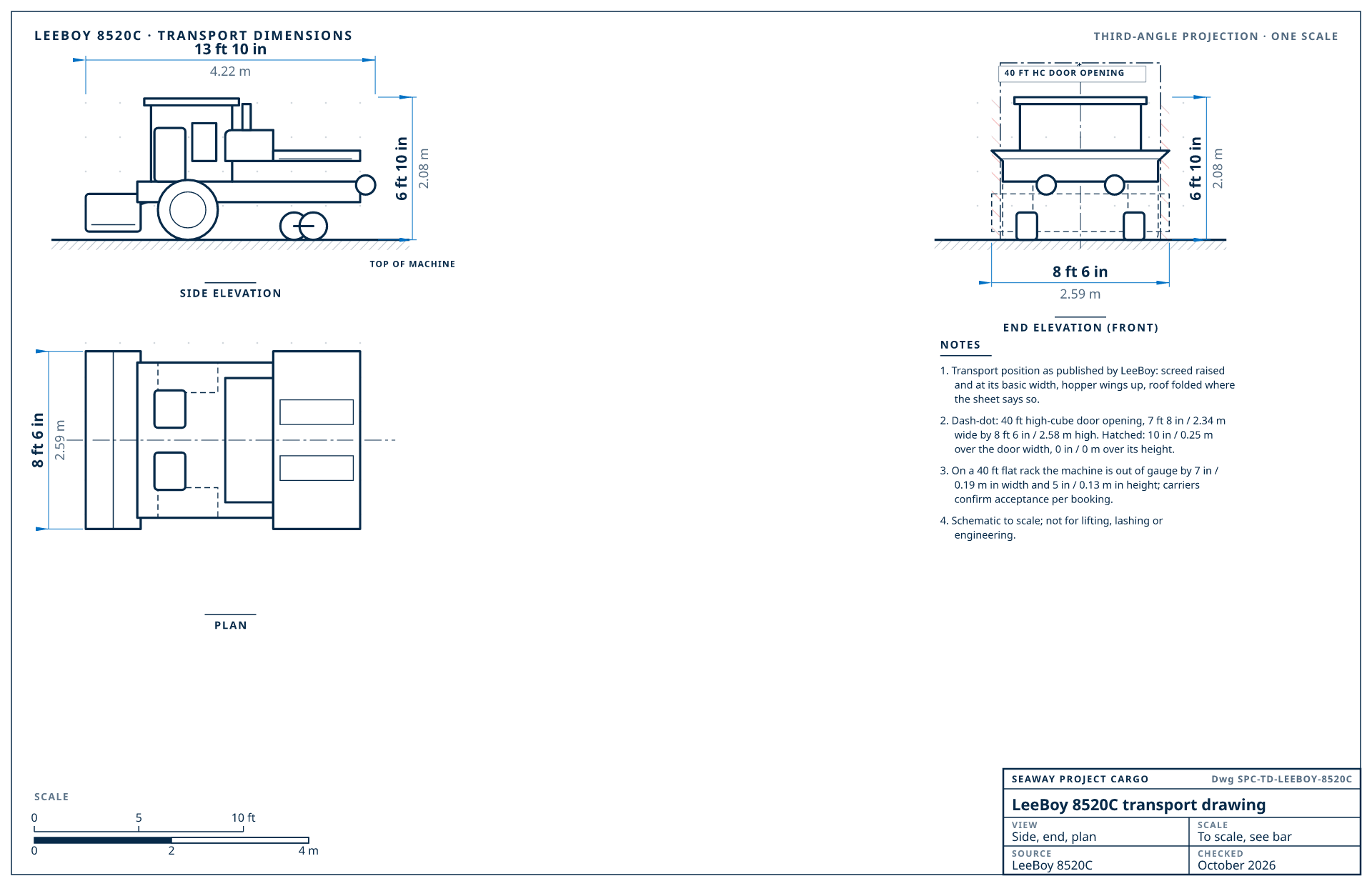

LeeBoy 8520C transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from LeeBoy's published transport dimensions. Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
LeeBoy 8520C transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 13 ft 10 in / 4.22 m | transport position, with the standard screed |
| Transport width | 8 ft 6 in / 2.59 m | hopper wings up |
| Transport height | 6 ft 10 in / 2.08 m | travel height: roof folded or exhaust, as the manufacturer prints it |
| Weight | 22,100 lb / 10,024 kg | weight with the standard screed |
| Maximum paving width | 15 ft 6 in / 4.72 m | with screed extensions; the extensions ship crated |
| Machine type | Commercial asphalt paver | |
| Configuration | With the 4,150 lb Legend HD Pro screed. Length and width in transport; 14 ft 10 in (4.52 m) long overall and 10 ft (3.05 m) wide with the hopper wings down. Height to the high deck, 6 ft 8 in (2.03 m) on the low deck. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a LeeBoy 8520C, best first
Cheapest first: the shipping cost ladder
We price every machine from the bottom rung up. A machine only moves up a rung when a measurement rules out the cheaper method.
LeeBoy 8520C is 8 ft 6 in / 2.59 m wide, over the 7 ft 8 in / 2.34 m container door, so shipping it whole starts on the next rung up.
- Rung 1
Container
Lowest cost
When: Fits through a 7 ft 8 in / 2.34 m × 8 ft 6 in / 2.58 m door and under 59,500 lb / 27,000 kg, whole or after we take off the bucket, boom, cab or wheels.
- Rung 2
Flat rack
Mid cost
Best fit for LeeBoy 8520C
When: Too wide or tall for a container door, but within 14 ft 9 in / 4.5 m wide, 13 ft 1 in / 4 m tall and 86,000 lb / 39,000 kg on one rack.
- Rung 3
RoRo
Mid cost
When: Drives or tows aboard, under 19 ft 8 in / 6 m tall and 110 US tons / 100,000 kg, going to a port with regular RoRo sailings.
- Rung 4
Breakbulk
Highest cost
When: Past flat-rack and roll-trailer limits, or shipped as modules lifted aboard piece by piece.
Worked out from the dimensions above against container, flat rack and RoRo limits. RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | 40 ft flat rackBest fit | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (7 in / 0.19 m over width, 5 in / 0.13 m over height). |
| 2 | 40 ft high-cube container | After disassembly, across containers | Taken apart and loaded across one or more 40 ft containers, with open-tops for tall pieces: screed off and exhaust stack and beacons off. We survey the machine first and quote this next to shipping it whole. How we containerize |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Where machines like the LeeBoy 8520C go
GuyanaTransit 7-11 daysCommercial pavers for road and site work, to Georgetown.
Quote to Guyana
PanamaTransit 8-14 daysPavers on flat racks or by RoRo to Manzanillo or Balboa.
Quote to Panama
HondurasTransit 10-16 daysCommercial pavers on flat racks to Puerto Cortés.
Quote to Honduras
Preparing a LeeBoy 8520C for export
- The hopper, conveyors, augers and screed are cleaned of asphalt, the hopper wings raised and the screed locked up.
- Batteries are disconnected and the machine is chocked and lashed through its tie-down points.
LeeBoy 8520C shipping questions
Does a LeeBoy 8520C fit in a shipping container?
At 8 ft 6 in (2.59 m) wide, the LeeBoy 8520C is wider than a container door in one piece (7 ft 8 in / 2.34 m), so it ships whole on a 40 ft flat rack (7 in / 0.19 m over width, 5 in / 0.13 m over height). RoRo is the alternative where a lane serves your port. It can also be containerized after disassembly (screed off and exhaust stack and beacons off), across one or more containers; we survey it first and quote both.
How much does a LeeBoy 8520C weigh for shipping?
LeeBoy lists the LeeBoy 8520C at 22,100 lb (10,024 kg) (weight with the standard screed); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a LeeBoy 8520C?
13 ft 10 in × 8 ft 6 in × 6 ft 10 in (4.22 × 2.59 × 2.08 m) (length × width × height) in transport position, from LeeBoy's published specifications for the LeeBoy 8520C.
What has to come off a LeeBoy 8520C to ship it?
To containerize it: screed off and exhaust stack and beacons off. Our crew does the work, crates and labels every part, and loads the pieces across one or more containers, with documentation for reassembly. Shipped whole on a flat rack or RoRo, it needs little or no disassembly.
Can a LeeBoy 8520C ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
