Genie S-65: transport dimensions, weight and how it ships overseas

We load the Genie S-65 in 1 × 40 ft high cube, from our own loading records. Shipped whole, it goes on a 40 ft flat rack (4 in / 0.09 m over width, 2 ft 6 in / 0.77 m over height), or RoRo where a lane serves your port.

Transport length: 24 ft 11 in / 7.6 m
Transport width: 8 ft 2 in / 2.49 m
Transport height: 8 ft 11 in / 2.72 m
Weight: 22,300 lb / 10,102 kg

Quote my Genie S-65 Call Specialist

Genie S-65 transport drawing

Scroll sideways to read the drawing, or turn your phone.

Download the Genie S-65 drawing (PNG)

1920 × 1240 px. Free to use with a link to this page.

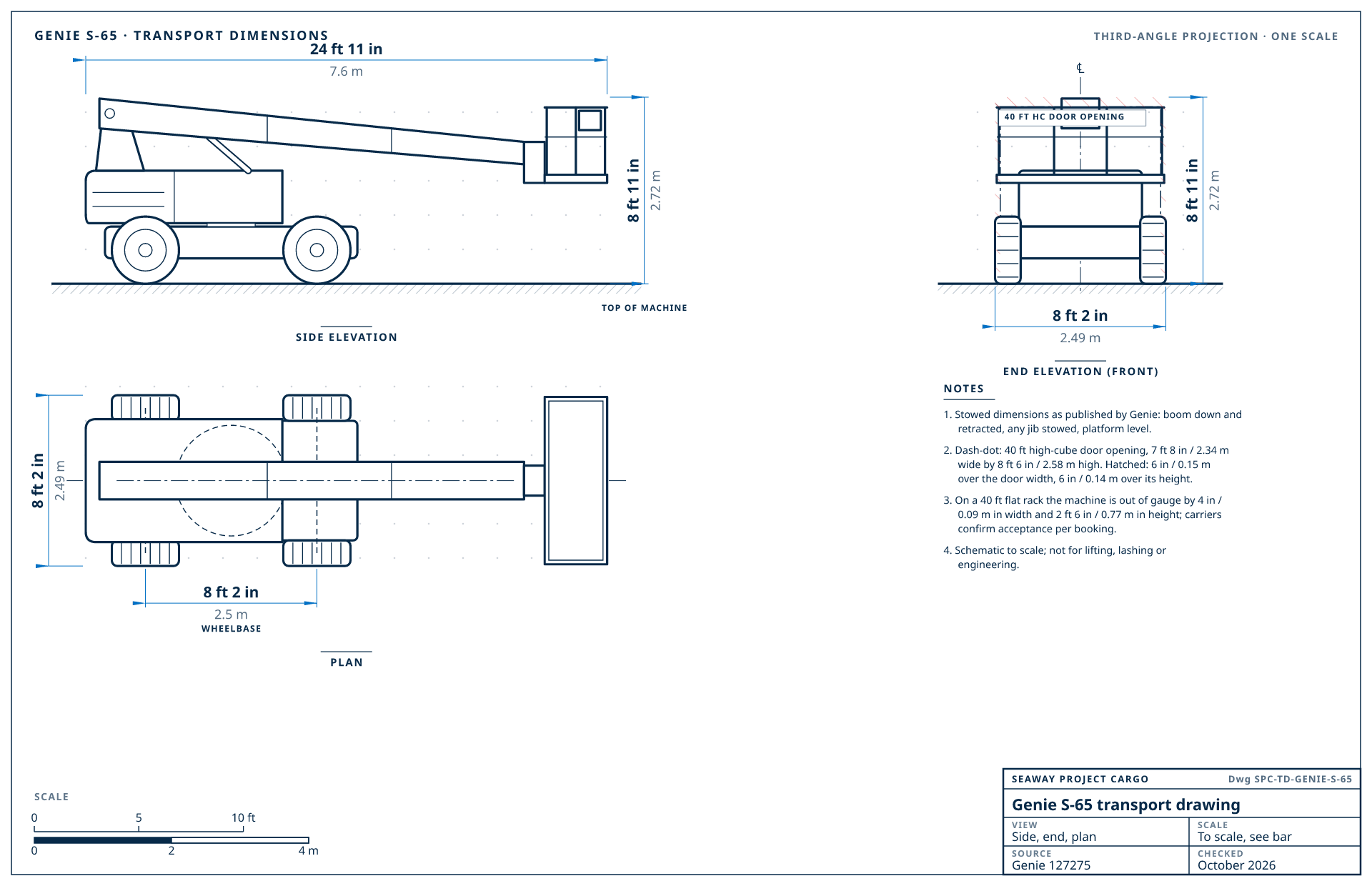

Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Genie's published transport dimensions (127275, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.

Genie S-65 transport specifications

Specification	Value	Basis
Transport length	24 ft 11 in / 7.6 m	stowed: boom down and retracted, platform level
Transport width	8 ft 2 in / 2.49 m	over the tyres
Transport height	8 ft 11 in / 2.72 m	stowed, to the top of the boom or the platform rails
Weight	22,300 lb / 10,102 kg	operating weight
Platform height	65 ft / 19.81 m	maximum, to the platform floor
Horizontal outreach	56 ft 1 in / 17.1 m
Platform	8 ft / 2.44 m	standard platform, 3 ft / 0.91 m deep
Tail swing radius	4 ft / 1.22 m	turntable tail swing, as the manufacturer prints it
Wheelbase	8 ft 2 in / 2.5 m
Ground clearance	1 ft 3 in / 0.37 m
Machine type	Boom lift
Configuration	Telescopic boom, jib, 8 ft × 3 ft (2.44 × 0.91 m) platform, 4WD, air-filled tyres. Length with the jib tucked under for transport; 30 ft 11 in (9.42 m) stowed with the jib in line.

Manufacturer documents

Links and figures checked October 2026. Linked from the manufacturer; we do not host them.

Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.

Every way to ship a Genie S-65, best first

Loaded by Seaway

How we load the Genie S-65

We have dismantled and loaded the Genie S65 for export before. It goes in 1 × 40 ft high cube.

1 × 40 ft high cube
Before loading, as on every boom lift wider than the box: platform off, wheels off. Our loading sheet does not list the steps for this one, so the survey confirms them.

1 × 40 ft high cube: main machine

From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.

Get a quote with this plan See every model in this series

Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.

#	Best method	Fit	Preparation
1	Our usual plan: 1 × 40 ft high cubeBest fit	From our loading records	platform off and wheels off (typical)
2	40 ft flat rack	Out-of-gauge	Ships assembled, blocked and lashed; out-of-gauge surcharge applies (4 in / 0.09 m over width, 2 ft 6 in / 0.77 m over height).
3	RoRo	Where a RoRo lane serves the destination	Drives on assembled where a RoRo lane serves the destination.
4	Breakbulk	Fits as is	Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port.

See how we containerize heavy equipment

Comparable aerial lifts from other brands

Machine	L × W × H (transport)	Weight	Ships
Genie S-65	24 ft 11 in × 8 ft 2 in × 8 ft 11 in (7.6 × 2.49 × 2.72 m)	22,300 lb / 10,102 kg	1 × 40 ft high cube
JLG 600AJ	29 ft × 8 ft 2 in × 8 ft 4 in (8.83 × 2.48 × 2.54 m)	22,700 lb / 10,292 kg	1 × 40 ft high cube
Snorkel TB60	30 ft 10 in × 8 ft 2 in × 8 ft 10 in (9.4 × 2.49 × 2.69 m)	21,700 lb / 9,860 kg	1 × 40 ft high cube
JLG 600S	28 ft 7 in × 8 ft 2 in × 8 ft 2 in (8.71 × 2.48 × 2.5 m)	21,600 lb / 9,819 kg	1 × 40 ft high cube
JLG 601S	27 ft 5 in × 8 ft × 8 ft 4 in (8.36 × 2.44 × 2.54 m)	21,500 lb / 9,752 kg	1 × 40 ft high cube

Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.

Where machines like the Genie S-65 go

MexicoTransit 5-14 days
Boom lifts by truck across the border or in containers to Manzanillo.
Quote to Mexico
AustraliaTransit 28-35 days
Strict biosecurity cleaning; tyres, turntable and chassis pockets are washed before loading.
Quote to Australia
United Arab EmiratesTransit 20-28 days
Booms for construction and facilities work, in high cubes to Jebel Ali.
Quote to United Arab Emirates

Preparing a Genie S-65 for export

The boom is stowed and retracted, the turntable rotation lock pin set where fitted, and the platform controls covered.
Batteries are disconnected and the machine is chocked and lashed through its tie-down points.

Genie S-65 shipping questions

Does a Genie S-65 fit in a shipping container?

Not in one piece: at 8 ft 2 in (2.49 m) wide it is wider than a 40 ft high-cube door (7 ft 8 in / 2.34 m). Taken apart, it goes in 1 × 40 ft high cube, the plan from our loading records.

How much does a Genie S-65 weigh for shipping?

Genie lists the Genie S-65 at 22,300 lb (10,102 kg) (operating weight); the bill of lading uses your machine's own weight.

What are the shipping dimensions of a Genie S-65?

24 ft 11 in × 8 ft 2 in × 8 ft 11 in (7.6 × 2.49 × 2.72 m) (length × width × height) in transport position, from Genie's published specifications for the Genie S-65.

What has to come off a Genie S-65 to ship it?

For 1 × 40 ft high cube, typically: platform off and wheels off. A boom lift wider than the box comes in with the platform and wheels off; the survey confirms it for your machine. Our crew does the work, crates and labels the loose parts and documents everything for reassembly.

Can a Genie S-65 ship RoRo?

Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
