Genie ZX-135/70: transport dimensions, weight and how it ships overseas
The Genie ZX-135/70 usually goes in 1 × 40 ft open top, from our loading records for related models (Genie ZX 135). Shipped whole, it goes RoRo where a lane serves your port.
- Transport length
- 42 ft 5 in / 12.93 m
- Transport width
- 8 ft 2 in / 2.49 m
- Transport height
- 10 ft 2 in / 3.09 m
- Weight
- 46,500 lb / 21,092 kg

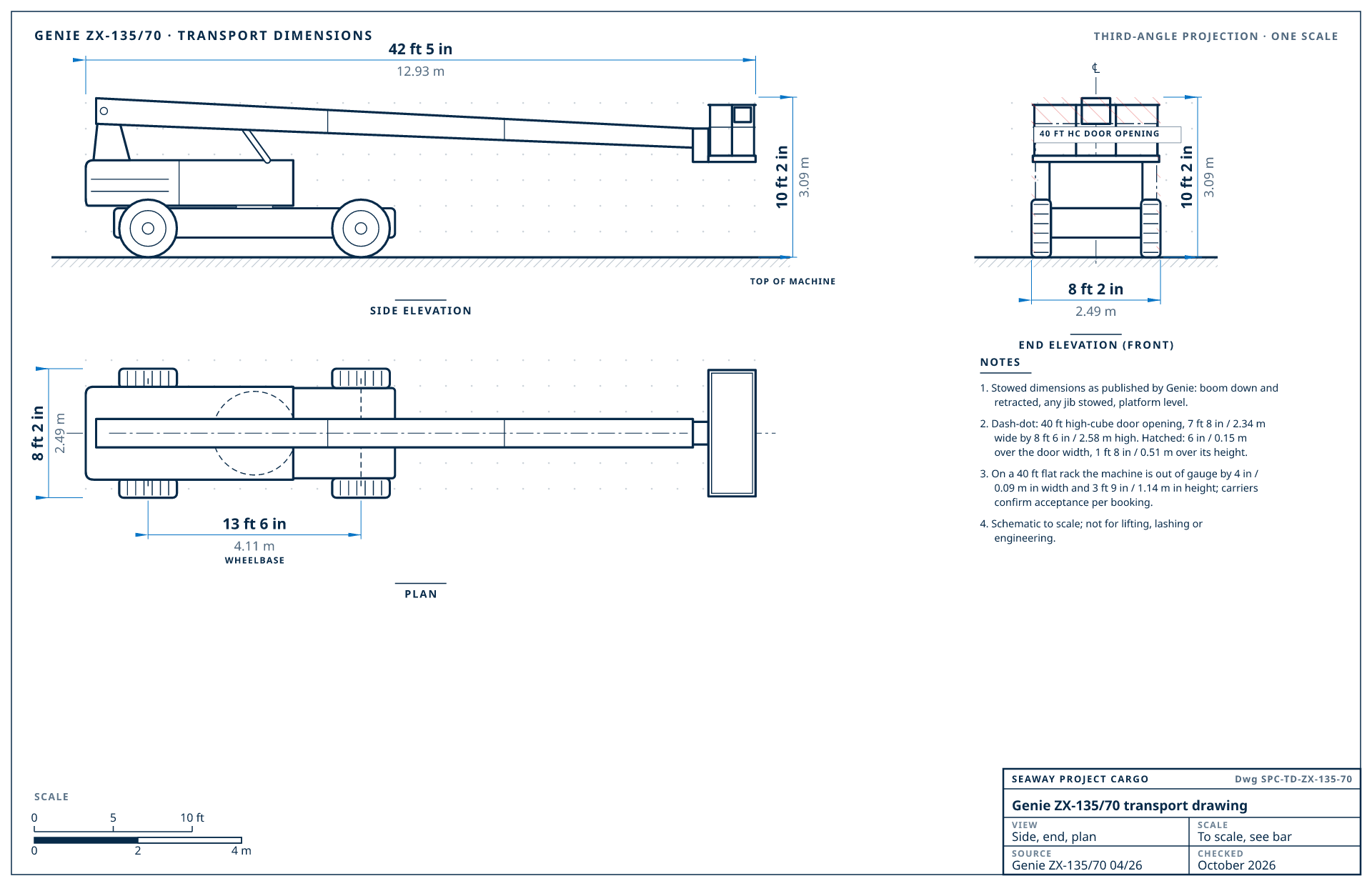

Genie ZX-135/70 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Genie's published transport dimensions (ZX-135/70 04/26, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Genie ZX-135/70 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 42 ft 5 in / 12.93 m | stowed: boom down and retracted, platform level |
| Transport width | 8 ft 2 in / 2.49 m | over the tyres |
| Transport height | 10 ft 2 in / 3.09 m | stowed, to the top of the boom or the platform rails |
| Weight | 46,500 lb / 21,092 kg | operating weight |
| Platform height | 135 ft / 41.15 m | maximum, to the platform floor |
| Horizontal outreach | 69 ft 9 in / 21.26 m | |
| Platform | 8 ft / 2.44 m | standard platform, 3 ft / 0.91 m deep |
| Wheelbase | 13 ft 6 in / 4.11 m | |
| Ground clearance | 1 ft 3 in / 0.38 m | |
| Machine type | Boom lift | |
| Configuration | Articulating boom, 8 ft × 3 ft (2.44 × 0.91 m) platform, 4WD, foam-filled tyres. Width with the axles retracted. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Genie ZX-135/70, best first
Loaded by Seaway
How we load the Genie ZX-135/70
Our loading records list earlier and sister models of the Genie ZX-135/70 (Genie ZX 135). The usual plan is 1 × 40 ft open top, 1 ft 6 in / 0.46 m over the side walls.
- 1 × 40 ft open top, 1 ft 6 in / 0.46 m over the side walls
- Before loading, as on every boom lift wider than the box: platform off, wheels off. Our loading sheet does not list the steps for this one, so the survey confirms them.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft open top, 1 ft 6 in / 0.46 m over the side wallsBest fit | From our loading records | platform off and wheels off (typical) |
| 2 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 3 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Comparable aerial lifts from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Genie ZX-135/70 | 42 ft 5 in × 8 ft 2 in × 10 ft 2 in (12.93 × 2.49 × 3.09 m) | 46,500 lb / 21,092 kg | 1 × 40 ft open top, 1 ft 6 in / 0.46 m over the side walls |
| JLG 1500SJ | 43 ft × 8 ft 2 in × 10 ft (13.11 × 2.49 × 3.04 m) | 48,000 lb / 21,772 kg | 1 × 40 ft open top, 1 ft 6 in / 0.46 m over the side walls |
| JLG 1350SJP | 38 ft 11 in × 8 ft 2 in × 10 ft (11.86 × 2.49 × 3.04 m) | 44,800 lb / 20,300 kg | 1 × 40 ft open top, 1 ft 6 in / 0.46 m over the side walls |
| JLG 1250AJP | 37 ft 7 in × 8 ft 2 in × 9 ft 11 in (11.45 × 2.49 × 3.02 m) | 44,000 lb / 19,958 kg | 1 × 40 ft open top, 1 ft / 0.3 m over the side walls |
| JLG 120SXJ | 35 ft 11 in × 8 ft 2 in × 10 ft (10.95 × 2.49 × 3.05 m) | 43,500 lb / 19,732 kg | 1 × 40 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Genie ZX-135/70 go
MexicoTransit 5-14 daysBoom lifts by truck across the border or in containers to Manzanillo.
Quote to Mexico
AustraliaTransit 28-35 daysStrict biosecurity cleaning; tyres, turntable and chassis pockets are washed before loading.
Quote to Australia
United Arab EmiratesTransit 20-28 daysBooms for construction and facilities work, in high cubes to Jebel Ali.
Quote to United Arab Emirates
Preparing a Genie ZX-135/70 for export
- The boom is stowed and retracted, the turntable rotation lock pin set where fitted, and the platform controls covered.
- Batteries are disconnected and the machine is chocked and lashed through its tie-down points.
Genie ZX-135/70 shipping questions
Does a Genie ZX-135/70 fit in a shipping container?
Not in one piece: at 8 ft 2 in (2.49 m) wide it is wider than a 40 ft high-cube door (7 ft 8 in / 2.34 m). Taken apart, it goes in 1 × 40 ft open top, 1 ft 6 in / 0.46 m over the side walls, the plan from our loading records.
How much does a Genie ZX-135/70 weigh for shipping?
Genie lists the Genie ZX-135/70 at 46,500 lb (21,092 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Genie ZX-135/70?
42 ft 5 in × 8 ft 2 in × 10 ft 2 in (12.93 × 2.49 × 3.09 m) (length × width × height) in transport position, from Genie's published specifications for the Genie ZX-135/70.
What has to come off a Genie ZX-135/70 to ship it?
For 1 × 40 ft open top, typically: platform off and wheels off. A boom lift wider than the box comes in with the platform and wheels off; the survey confirms it for your machine. Our crew does the work, crates and labels the loose parts and documents everything for reassembly.
Can a Genie ZX-135/70 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
