Genie S-80: transport dimensions, weight and how it ships overseas
We load the Genie S-80 in 1 × 40 ft high cube, from our own loading records. Shipped whole, it goes on a 40 ft flat rack (4 in / 0.1 m over width, 2 ft 9 in / 0.85 m over height), or RoRo where a lane serves your port.
- Transport length
- 36 ft 5 in / 11.1 m
- Transport width
- 8 ft 2 in / 2.5 m
- Transport height
- 9 ft 2 in / 2.8 m
- Weight
- 35,400 lb / 16,057 kg

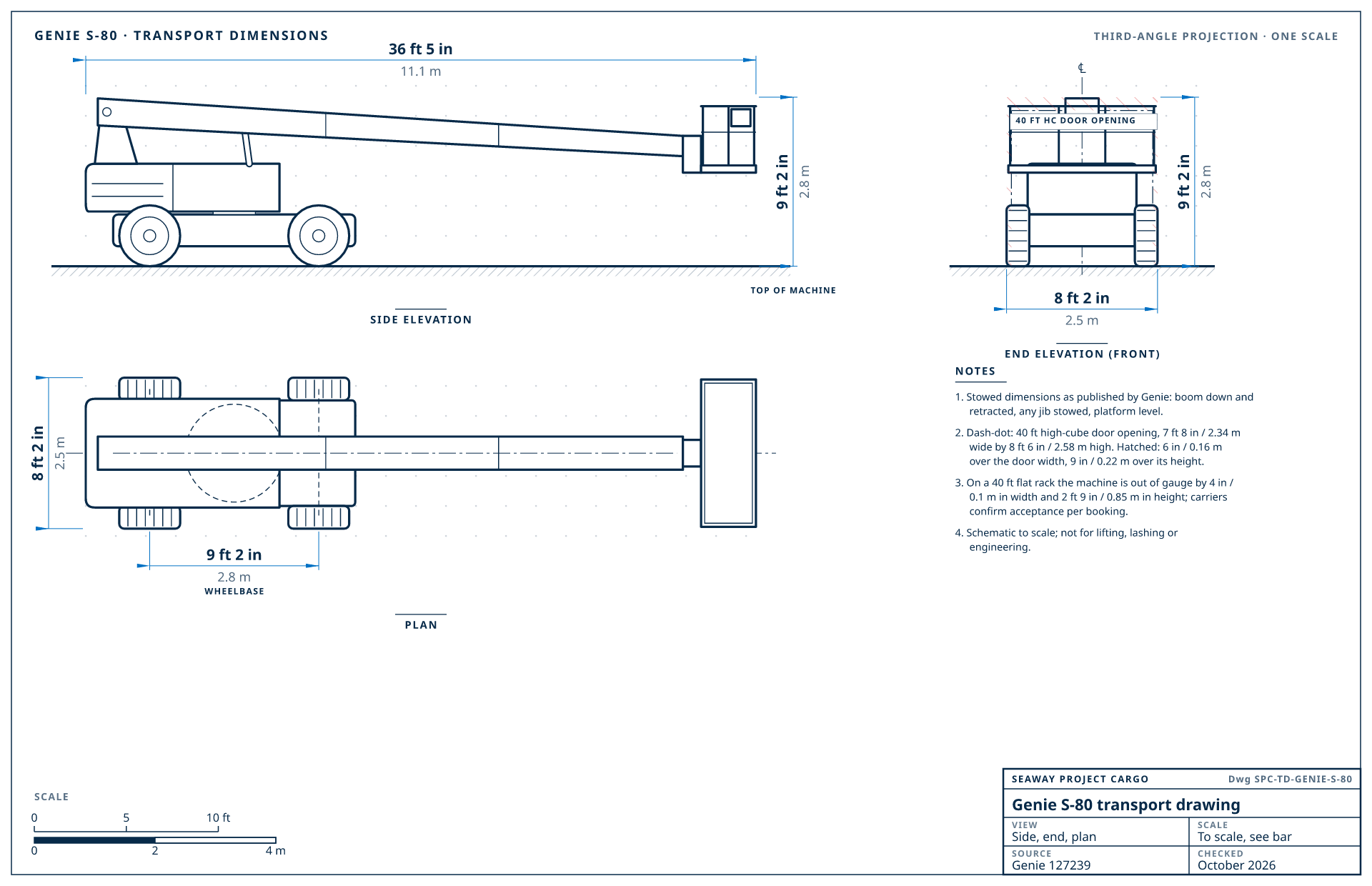

Genie S-80 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Genie's published transport dimensions (127239, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Genie S-80 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 36 ft 5 in / 11.1 m | stowed: boom down and retracted, platform level |
| Transport width | 8 ft 2 in / 2.5 m | over the tyres |
| Transport height | 9 ft 2 in / 2.8 m | stowed, to the top of the boom or the platform rails |
| Weight | 35,400 lb / 16,057 kg | operating weight |
| Platform height | 80 ft 1 in / 24.4 m | maximum, to the platform floor |
| Horizontal outreach | 71 ft 6 in / 21.8 m | |
| Platform | 8 ft / 2.44 m | standard platform, 3 ft / 0.91 m deep |
| Tail swing radius | 4 ft 8 in / 1.42 m | turntable tail swing, as the manufacturer prints it |
| Wheelbase | 9 ft 2 in / 2.8 m | |
| Ground clearance | 1 ft 1 in / 0.33 m | |
| Machine type | Boom lift | |
| Configuration | Telescopic boom, 8 ft × 3 ft (2.44 × 0.91 m) platform, foam-filled tyres. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Genie S-80, best first
Loaded by Seaway
How we load the Genie S-80
We have dismantled and loaded the Genie S80 for export before. It goes in 1 × 40 ft high cube.
- 1 × 40 ft high cube
- Before loading, as on every boom lift wider than the box: platform off, wheels off. Our loading sheet does not list the steps for this one, so the survey confirms them.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft high cubeBest fit | From our loading records | platform off and wheels off (typical) |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (4 in / 0.1 m over width, 2 ft 9 in / 0.85 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
Genie publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 36 ft 5 in × 8 ft 2 in × 9 ft 2 in (11.1 × 2.5 × 2.8 m)35,400 lb (16,057 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 4 in / 0.1 m over width, 2 ft 9 in / 0.85 m over height
- 40 ft high-cube door
- 6 in / 0.16 m over the door width, 9 in / 0.22 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Comparable aerial lifts from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Genie S-80 | 36 ft 5 in × 8 ft 2 in × 9 ft 2 in (11.1 × 2.5 × 2.8 m) | 35,400 lb / 16,057 kg | 1 × 40 ft high cube |
| JLG 800AJ | 36 ft 6 in × 8 ft 2 in × 9 ft 10 in (11.13 × 2.48 × 3 m) | 34,700 lb / 15,757 kg | 1 × 40 ft high cube |
| Snorkel TB80 | 38 ft 8 in × 8 ft 6 in × 9 ft 6 in (11.78 × 2.59 × 2.9 m) | 36,300 lb / 16,480 kg | 1 × 40 ft high cube |
| JLG 800A | 36 ft 11 in × 8 ft × 9 ft 10 in (11.25 × 2.44 × 3 m) | 34,300 lb / 15,558 kg | 1 × 40 ft high cube |
| JLG 800S | 37 ft 6 in × 8 ft 2 in × 9 ft 8 in (11.43 × 2.49 × 2.95 m) | 34,100 lb / 15,490 kg | 1 × 40 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Genie S-80 go
MexicoTransit 5-14 daysBoom lifts by truck across the border or in containers to Manzanillo.
Quote to Mexico
AustraliaTransit 28-35 daysStrict biosecurity cleaning; tyres, turntable and chassis pockets are washed before loading.
Quote to Australia
United Arab EmiratesTransit 20-28 daysBooms for construction and facilities work, in high cubes to Jebel Ali.
Quote to United Arab Emirates
Preparing a Genie S-80 for export
- The boom is stowed and retracted, the turntable rotation lock pin set where fitted, and the platform controls covered.
- Batteries are disconnected and the machine is chocked and lashed through its tie-down points.
Genie S-80 shipping questions
Does a Genie S-80 fit in a shipping container?
Not in one piece: at 8 ft 2 in (2.5 m) wide it is wider than a 40 ft high-cube door (7 ft 8 in / 2.34 m). Taken apart, it goes in 1 × 40 ft high cube, the plan from our loading records.
How much does a Genie S-80 weigh for shipping?
Genie lists the Genie S-80 at 35,400 lb (16,057 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Genie S-80?
36 ft 5 in × 8 ft 2 in × 9 ft 2 in (11.1 × 2.5 × 2.8 m) (length × width × height) in transport position, from Genie's published specifications for the Genie S-80.
What has to come off a Genie S-80 to ship it?
For 1 × 40 ft high cube, typically: platform off and wheels off. A boom lift wider than the box comes in with the platform and wheels off; the survey confirms it for your machine. Our crew does the work, crates and labels the loose parts and documents everything for reassembly.
Can a Genie S-80 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
