Hitachi EX120-5: transport dimensions, weight and how it ships overseas
We load the Hitachi EX120-5 in 1 × 40 ft high cube, from our own loading records. Shipped whole, it goes on a 40 ft flat rack (4 in / 0.1 m over width, 2 ft 6 in / 0.77 m over height), or RoRo where a lane serves your port.
- Transport length
- 24 ft 10 in / 7.58 m
- Transport width
- 8 ft 2 in / 2.5 m
- Transport height
- 8 ft 11 in / 2.72 m
- Weight
- 26,000 lb / 11,800 kg

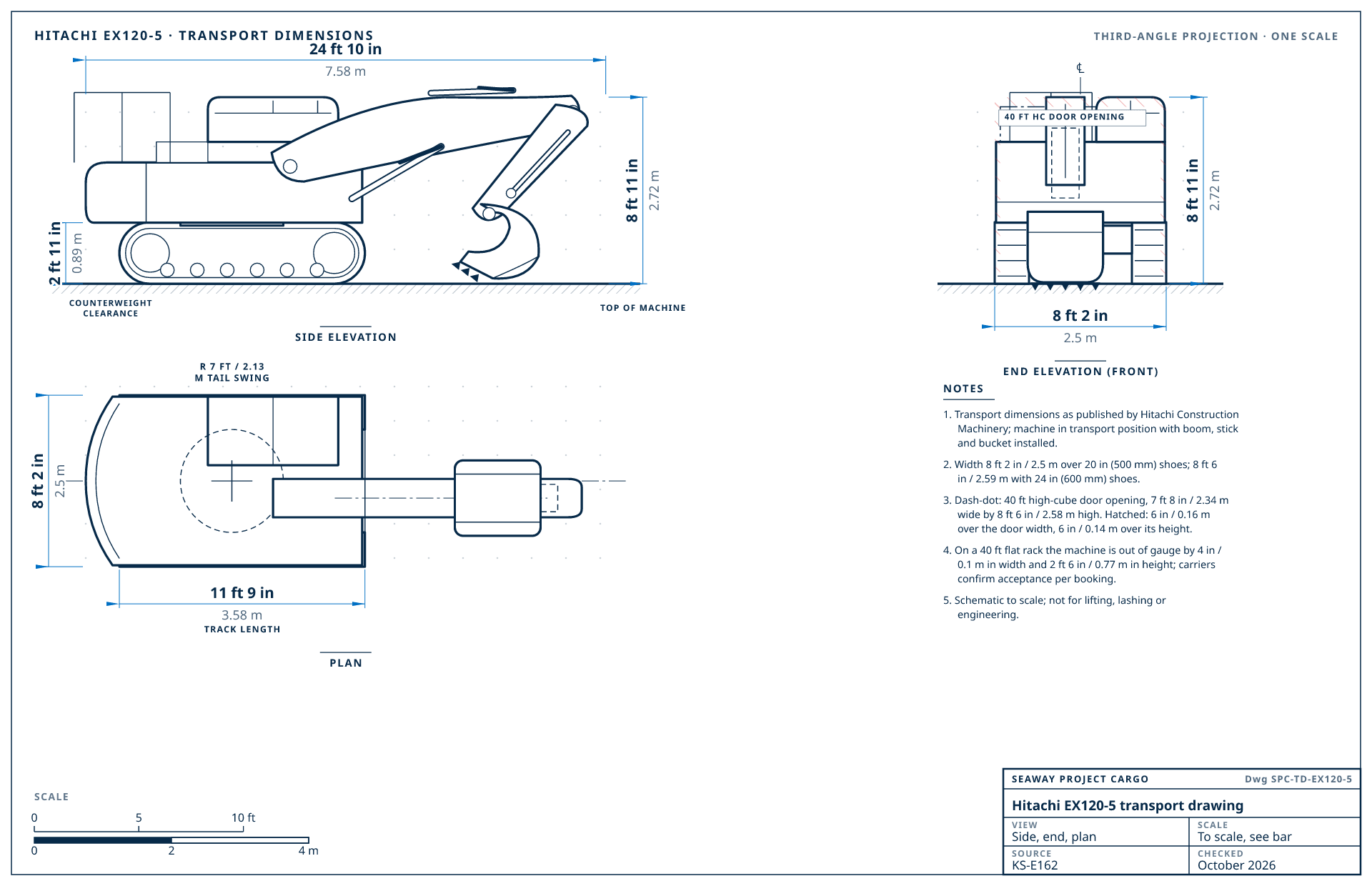

Hitachi EX120-5 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Hitachi Construction Machinery's published transport dimensions. Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Hitachi EX120-5 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 24 ft 10 in / 7.58 m | boom, stick and bucket installed, transport position |
| Transport width | 8 ft 2 in / 2.5 m | over the tracks, 20 in (500 mm) shoes · 8 ft 6 in / 2.59 m with 24 in (600 mm) shoes |
| Transport height | 8 ft 11 in / 2.72 m | in transport position |
| Weight | 26,000 lb / 11,800 kg | operating weight |
| Tail swing radius | 7 ft / 2.13 m | sets the clearance behind the swing centre on a flat rack |
| Track length | 11 ft 9 in / 3.58 m | |
| Track gauge | 6 ft 6 in / 1.99 m | |
| Upper frame width | 8 ft 1 in / 2.46 m | without the cab handrails |
| Ground clearance | 1 ft 5 in / 0.44 m | |
| Counterweight clearance | 2 ft 11 in / 0.89 m | underside of the counterweight to the ground |
| Machine type | Hydraulic excavator | |
| Configuration | 15 ft 1 in (4.6 m) boom, 8 ft 3 in (2.52 m) arm, 0.7 yd³ (0.55 m³) bucket, 20 in (500 mm) shoes and the 4,960 lb (2.25 t) counterweight. Height to the cab; the boom sits at 8 ft 10 in (2.68 m). From Hitachi's archived EX120-5 brochure. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Hitachi EX120-5, best first
Loaded by Seaway
How we load the Hitachi EX120-5
We have dismantled and loaded the Hitachi EX120-5 for export before. It goes in 1 × 40 ft high cube.
- 1 × 40 ft high cube · 2 units per box
- Loads with the standard preparation: fluids checked, battery isolated, machine cleaned and lashed.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft high cubeBest fit | From our loading records | Taken apart at the yard and loaded as in the plan above |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (4 in / 0.1 m over width, 2 ft 6 in / 0.77 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
Hitachi Construction Machinery publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 24 ft 10 in × 8 ft 2 in × 8 ft 11 in (7.58 × 2.5 × 2.72 m)26,000 lb (11,800 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 4 in / 0.1 m over width, 2 ft 6 in / 0.77 m over height
- 40 ft high-cube door
- 6 in / 0.16 m over the door width, 6 in / 0.14 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Hitachi EX120-5 generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| EX120 | — | No record yet; measured at pickup and quoted both ways |
| EX120-2 | — | No record yet; measured at pickup and quoted both ways |
| EX120-3 | — | No record yet; measured at pickup and quoted both ways |
| EX120-5 | — | 1 × 40 ft high cube1 machine on record: Hitachi EX120-5 |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable excavators from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Hitachi EX120-5 | 24 ft 10 in × 8 ft 2 in × 8 ft 11 in (7.58 × 2.5 × 2.72 m) | 26,000 lb / 11,800 kg | 1 × 40 ft high cube |
| CAT 312 GC | 24 ft 2 in × 8 ft 2 in × 9 ft 3 in (7.36 × 2.49 × 2.82 m) | 25,600 lb / 11,600 kg | 1 × 40 ft high cube |
| CAT E110B | 23 ft 9 in × 8 ft 2 in × 8 ft 10 in (7.25 × 2.5 × 2.7 m) | 25,600 lb / 11,600 kg | 1 × 45 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Hitachi EX120-5 go
AustraliaTransit 28-35 daysImport duty 0–5%HS 8429.52 · 2023
Mining and construction; strict biosecurity cleaning.
Quote to Australia
ChileTransit 21-28 daysImport duty 6%HS 8429.52 · 2023
Mining excavators as breakbulk modules.
Quote to Chile
PhilippinesTransit 18-28 daysImport duty 0%HS 8429.52 · 2023
West Coast flat rack lanes.
Quote to Philippines
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a Hitachi EX120-5 for export
- Tier 4 Final and Stage V engines need ultra-low-sulfur diesel (15 ppm or less) and DEF. Where only high-sulfur diesel is sold, the after-treatment clogs, so check fuel quality or source a lower-tier export machine.
- ConSite telematics can be transferred to the destination dealer.
Hitachi EX120-5 shipping questions
Does a Hitachi EX120-5 fit in a shipping container?
Not in one piece: at 8 ft 2 in (2.5 m) wide it is wider than a 40 ft high-cube door (7 ft 8 in / 2.34 m). Taken apart, it goes in 1 × 40 ft high cube, the plan from our loading records.
How much does a Hitachi EX120-5 weigh for shipping?
Hitachi Construction Machinery lists the Hitachi EX120-5 at 26,000 lb (11,800 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Hitachi EX120-5?
24 ft 10 in × 8 ft 2 in × 8 ft 11 in (7.58 × 2.5 × 2.72 m) (length × width × height) in transport position, from Hitachi Construction Machinery's published specifications for the Hitachi EX120-5.
What has to come off a Hitachi EX120-5 to ship it?
To containerize it: bucket off, stick and boom folded or detached, counterweight off, cab or ROPS removed and crated, upper structure lifted off the undercarriage, and track chains and shoes off. Our crew does the work, crates and labels every part, and loads the pieces across one or more containers, with documentation for reassembly. Shipped whole on a flat rack or RoRo, it needs little or no disassembly.
Can a Hitachi EX120-5 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
