Hitachi EX230H-5: transport dimensions, weight and how it ships overseas
The Hitachi EX230H-5 usually goes in 1 × 40 ft high cube, from our loading records for related models (Hitachi EX230LC, Hitachi EX230LC-5). Shipped whole, it goes on a 40 ft flat rack (1 ft 11 in / 0.59 m over width, 3 ft 9 in / 1.15 m over height), or RoRo where a lane serves your port.
- Transport length
- 33 ft 3 in / 10.14 m
- Transport width
- 9 ft 10 in / 2.99 m
- Transport height
- 10 ft 2 in / 3.1 m
- Weight
- 52,200 lb / 23,700 kg

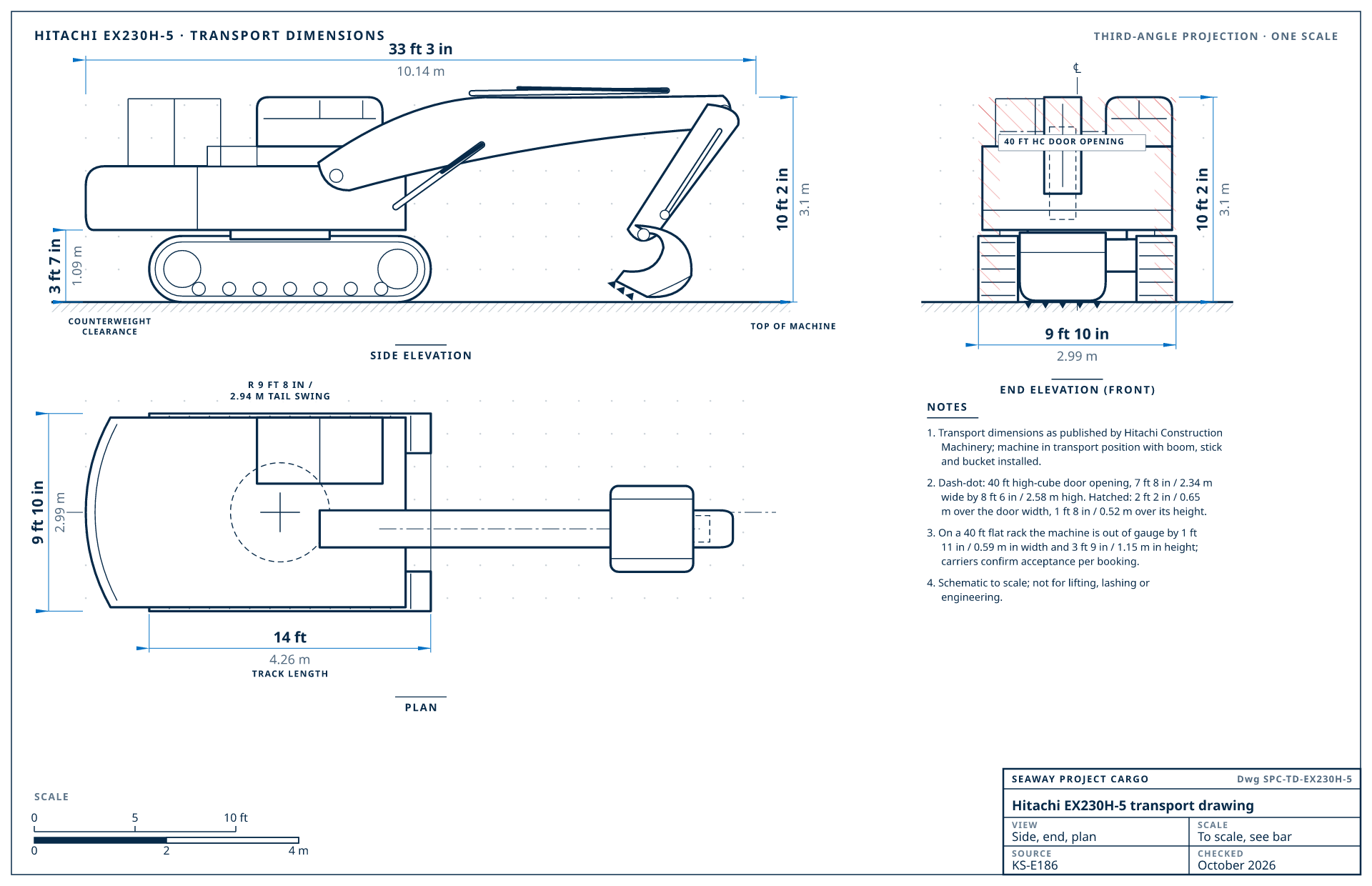

Hitachi EX230H-5 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Hitachi Construction Machinery's published transport dimensions. Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Hitachi EX230H-5 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 33 ft 3 in / 10.14 m | boom, stick and bucket installed, transport position |
| Transport width | 9 ft 10 in / 2.99 m | over the tracks, 24 in (600 mm) shoes |
| Transport height | 10 ft 2 in / 3.1 m | in transport position |
| Weight | 52,200 lb / 23,700 kg | operating weight |
| Tail swing radius | 9 ft 8 in / 2.94 m | sets the clearance behind the swing centre on a flat rack |
| Track length | 14 ft / 4.26 m | |
| Track gauge | 7 ft 10 in / 2.39 m | |
| Upper frame width | 9 ft 5 in / 2.87 m | without the cab handrails |
| Ground clearance | 1 ft 6 in / 0.46 m | |
| Counterweight clearance | 3 ft 7 in / 1.09 m | underside of the counterweight to the ground |
| Machine type | Hydraulic excavator | |
| Configuration | Heavy-duty H front: 19 ft 8 in (6.0 m) boom, 9 ft 9 in (2.96 m) arm, 1.3 yd³ (1.0 m³) bucket, 24 in (600 mm) reinforced shoes and the 12,600 lb (5.7 t) counterweight. Height to the boom (cab 9 ft 8 in / 2.94 m). Hitachi prints the EX230H-5 in its archived EX220-5 brochure; the EX230LCH-5 on the long crawler is 10 ft 6 in (3.19 m) wide and 53,600 lb (24,300 kg). | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Hitachi EX230H-5, best first
Loaded by Seaway
How we load the Hitachi EX230H-5
Our loading records list earlier and sister models of the Hitachi EX230H-5 (Hitachi EX230LC, Hitachi EX230LC-5). The usual plan is 1 × 40 ft high cube.
- 1 × 40 ft high cube
- Loads with the standard preparation: fluids checked, battery isolated, machine cleaned and lashed.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft high cubeBest fit | From our loading records | Taken apart at the yard and loaded as in the plan above |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (1 ft 11 in / 0.59 m over width, 3 ft 9 in / 1.15 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Hitachi EX230H-5 generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| EX230H-5 / EX230LCH-5 | — | 1 × 40 ft high cube1 machine on record: Hitachi EX230LC-5 |
| EX230K-5HG | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable excavators from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Hitachi EX230H-5 | 33 ft 3 in × 9 ft 10 in × 10 ft 2 in (10.14 × 2.99 × 3.1 m) | 52,200 lb / 23,700 kg | 1 × 40 ft high cube |
| John Deere 210G | 31 ft 8 in × 10 ft 6 in × 9 ft 8 in (9.66 × 3.19 × 2.95 m) | 52,100 lb / 23,631 kg | 40 ft flat rack |
| CAT EL240C | 31 ft 11 in × 11 ft 1 in × 9 ft 11 in (9.73 × 3.38 × 3.02 m) | 52,000 lb / 23,600 kg | 2 × 40 ft high cube |
| DEVELON DX225LC-7 | 31 ft 5 in × 10 ft 6 in × 9 ft 9 in (9.57 × 3.19 × 2.98 m) | 52,000 lb / 23,595 kg | 1 × 40 ft high cube |
| Komatsu PC210LC-11 | 31 ft 10 in × 10 ft 1 in × 10 ft 3 in (9.71 × 3.08 × 3.14 m) | 53,300 lb / 24,160 kg | 1 × 40 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
