Hydraulic excavator · Hyundai
Hyundai R210LC-9: transport dimensions, weight and how it ships overseas
The Hyundai R210LC-9 usually goes in 1 × 40 ft high cube, from our loading records for related models (Hyundai R210LC-7). Shipped whole, it goes on a 40 ft flat rack (1 ft 11 in / 0.59 m over width, 3 ft 7 in / 1.08 m over height), or RoRo where a lane serves your port.
- Transport length
- 31 ft 3 in / 9.53 m
- Transport width
- 9 ft 10 in / 2.99 m
- Transport height
- 9 ft 11 in / 3.03 m
- Weight
- 48,300 lb / 21,900 kg

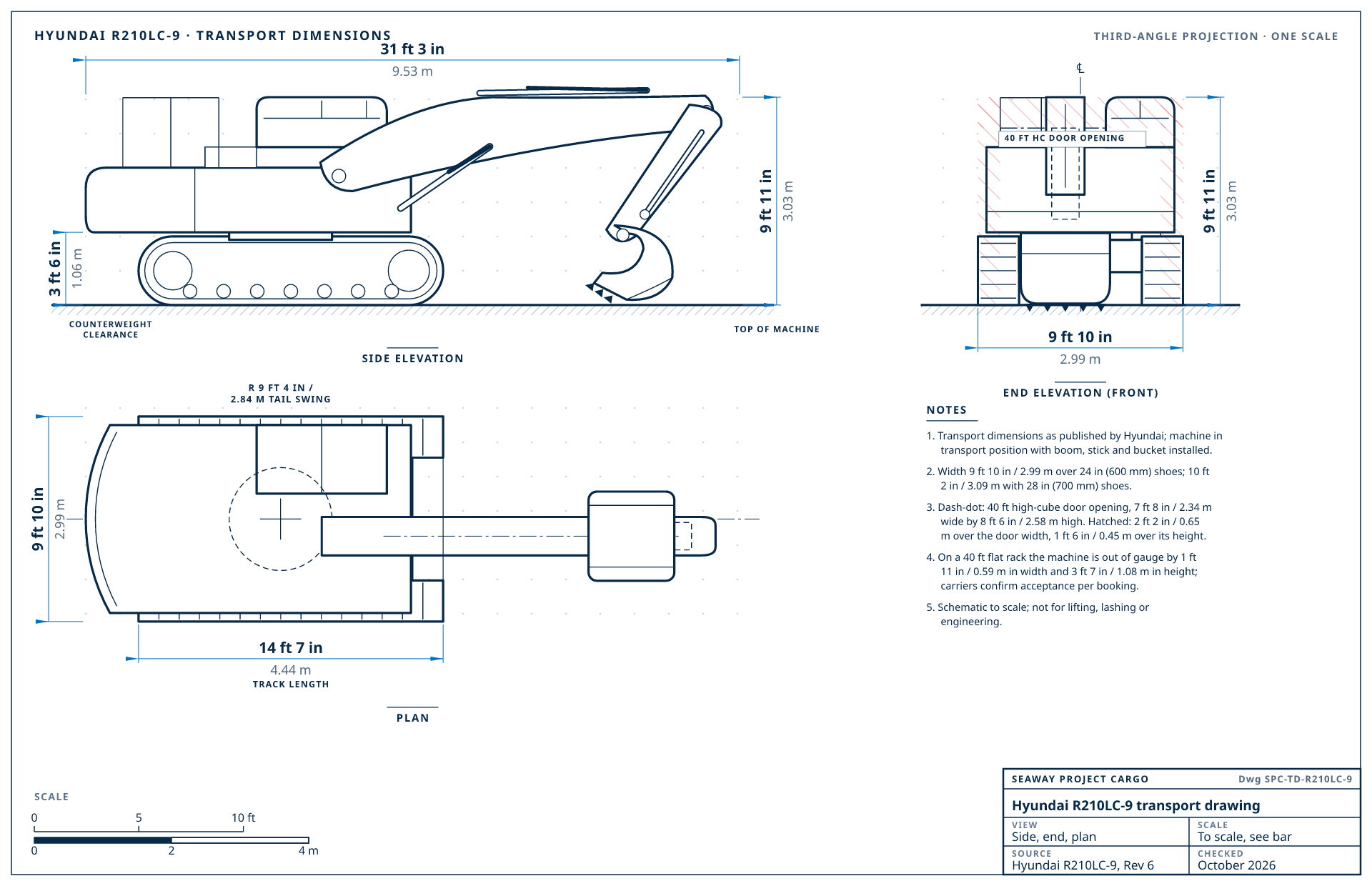

Hyundai R210LC-9 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Hyundai's published transport dimensions. Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Hyundai R210LC-9 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 31 ft 3 in / 9.53 m | boom, stick and bucket installed, transport position |
| Transport width | 9 ft 10 in / 2.99 m | over the tracks, 24 in (600 mm) shoes · 10 ft 2 in / 3.09 m with 28 in (700 mm) shoes |
| Transport height | 9 ft 11 in / 3.03 m | in transport position |
| Weight | 48,300 lb / 21,900 kg | operating weight |
| Tail swing radius | 9 ft 4 in / 2.84 m | sets the clearance behind the swing centre on a flat rack |
| Track length | 14 ft 7 in / 4.44 m | |
| Track gauge | 7 ft 10 in / 2.39 m | |
| Upper frame width | 9 ft / 2.74 m | without the cab handrails |
| Ground clearance | 1 ft 7 in / 0.48 m | |
| Counterweight clearance | 3 ft 6 in / 1.06 m | underside of the counterweight to the ground |
| Machine type | Hydraulic excavator | |
| Configuration | Global build: 18 ft 8 in (5.68 m) boom, 9 ft 7 in (2.92 m) arm, 1.2 yd³ (0.92 m³) bucket and 24 in (600 mm) shoes. Height to the boom (cab 9 ft 7 in / 2.92 m). | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Hyundai R210LC-9, best first
Loaded by Seaway
How we load the Hyundai R210LC-9
Our loading records list earlier and sister models of the Hyundai R210LC-9 (Hyundai R210LC-7). The usual plan is 1 × 40 ft high cube.
- 1 × 40 ft high cube
- Loads with the standard preparation: fluids checked, battery isolated, machine cleaned and lashed.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft high cubeBest fit | From our loading records | Taken apart at the yard and loaded as in the plan above |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (1 ft 11 in / 0.59 m over width, 3 ft 7 in / 1.08 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
Hyundai publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 31 ft 3 in × 9 ft 10 in × 9 ft 11 in (9.53 × 2.99 × 3.03 m)48,300 lb (21,900 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 1 ft 11 in / 0.59 m over width, 3 ft 7 in / 1.08 m over height
- 40 ft high-cube door
- 2 ft 2 in / 0.65 m over the door width, 1 ft 6 in / 0.45 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Hyundai R210LC-9 generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| Robex R210LC-9current | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable excavators from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Hyundai R210LC-9 | 31 ft 3 in × 9 ft 10 in × 9 ft 11 in (9.53 × 2.99 × 3.03 m) | 48,300 lb / 21,900 kg | 1 × 40 ft high cube |
| CAT 320 | 31 ft 3 in × 9 ft 9 in × 9 ft 9 in (9.53 × 2.98 × 2.96 m) | 48,300 lb / 21,900 kg | 1 × 40 ft open top, 1 ft / 0.3 m over the side walls + 1 × 40 ft high cube |
| JCB JS220 LC | 31 ft 5 in × 9 ft 10 in × 10 ft (9.58 × 2.99 × 3.04 m) | 48,300 lb / 21,904 kg | 40 ft flat rack |
| Kobelco SK220XDLC-10 | 31 ft 6 in × 9 ft 10 in × 9 ft 11 in (9.6 × 2.99 × 3.02 m) | 48,500 lb / 22,000 kg | 1 × 40 ft high cube |
| Volvo EC220E | 31 ft 9 in × 9 ft 10 in × 10 ft 1 in (9.69 × 2.99 × 3.08 m) | 47,900 lb / 21,740 kg | 40 ft flat rack |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Hyundai R210LC-9 go
VietnamTransit 18-28 daysImport duty 0%HS 8429.52 · 2023
Used Robex excavators for construction; containers into Hai Phong and Cat Lai.
Quote to Vietnam
KenyaTransit 25-35 daysImport duty 0%HS 8429.52 · 2023
Excavators through Mombasa; KEBS pre-export inspection is arranged before loading.
Quote to Kenya
PeruTransit 16-24 daysImport duty 0%HS 8429.52 · 2023
Excavators for mining and roadwork through Callao.
Quote to Peru
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a Hyundai R210LC-9 for export
- Tier 4 Final Hyundai engines need ultra-low-sulfur diesel and DEF; check fuel quality at the destination before export.
- Hi-Mate telematics may stop working abroad; the dealer can end the subscription before export.
Hyundai R210LC-9 shipping questions
Does a Hyundai R210LC-9 fit in a shipping container?
Not in one piece: at 9 ft 10 in (2.99 m) wide it is wider than a 40 ft high-cube door (7 ft 8 in / 2.34 m). Taken apart, it goes in 1 × 40 ft high cube, the plan from our loading records.
How much does a Hyundai R210LC-9 weigh for shipping?
Hyundai lists the Hyundai R210LC-9 at 48,300 lb (21,900 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Hyundai R210LC-9?
31 ft 3 in × 9 ft 10 in × 9 ft 11 in (9.53 × 2.99 × 3.03 m) (length × width × height) in transport position, from Hyundai's published specifications for the Hyundai R210LC-9.
What has to come off a Hyundai R210LC-9 to ship it?
To containerize it: bucket off, stick and boom folded or detached, counterweight off, cab or ROPS removed and crated, upper structure lifted off the undercarriage, and track chains and shoes off. Our crew does the work, crates and labels every part, and loads the pieces across one or more containers, with documentation for reassembly. Shipped whole on a flat rack or RoRo, it needs little or no disassembly.
Can a Hyundai R210LC-9 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
