Crawler excavator · Hyundai
Hyundai HX300L: transport dimensions, weight and how it ships overseas
At 72,700 lb (32,960 kg), the Hyundai HX300L is heavier than one container can carry, so it ships whole on a 40 ft flat rack (3 ft 3 in / 1 m over width, 4 ft 7 in / 1.4 m over height). RoRo is the alternative where a lane serves your port.
- Transport length
- 34 ft 9 in / 10.59 m
- Transport width
- 11 ft 2 in / 3.4 m
- Transport height
- 11 ft / 3.35 m
- Weight
- 72,700 lb / 32,960 kg

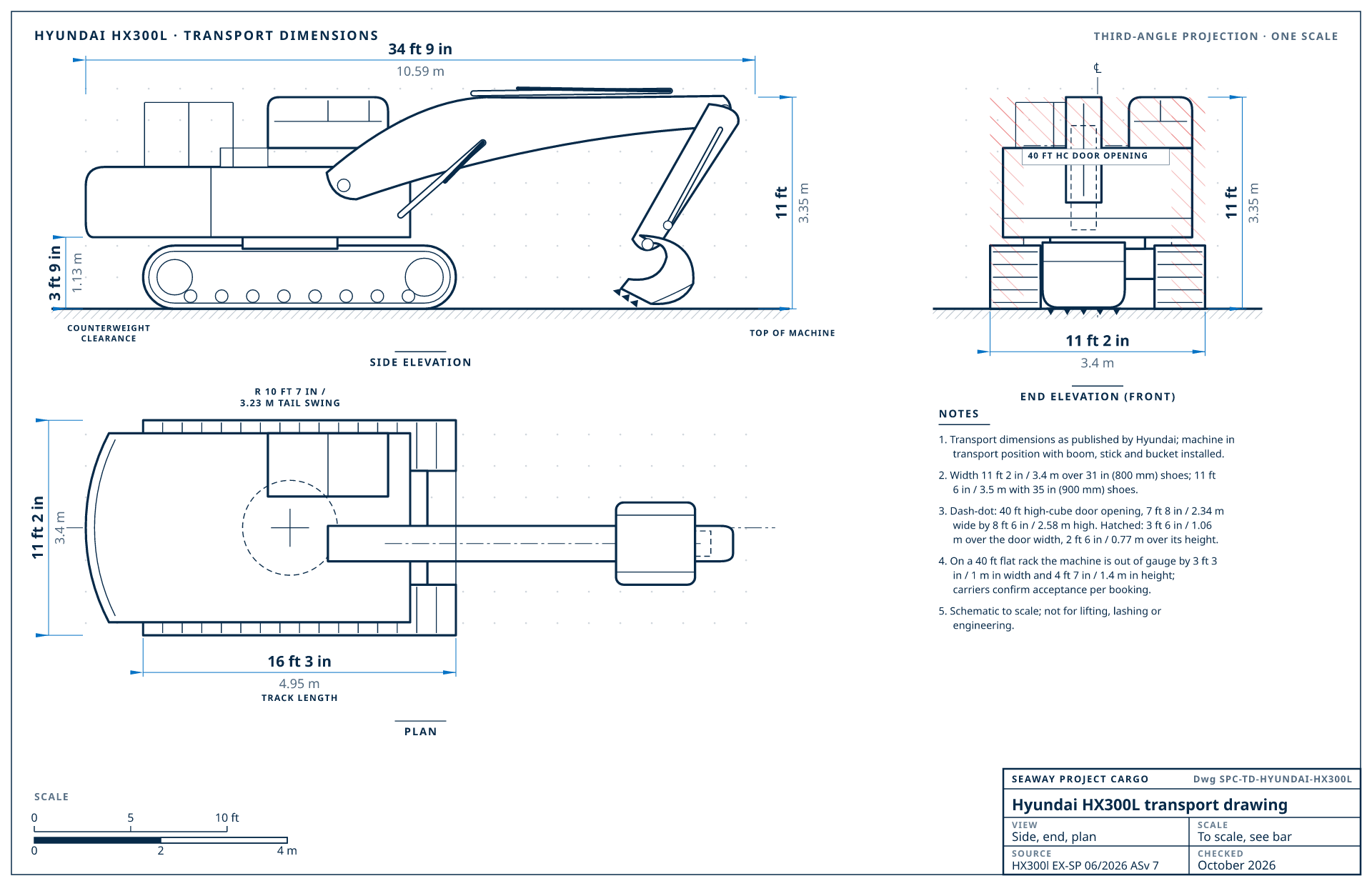

Hyundai HX300L transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Hyundai's published transport dimensions (HX300l EX-SP 06/2026 ASv 7, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Hyundai HX300L transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 34 ft 9 in / 10.59 m | boom, stick and bucket installed, transport position |
| Transport width | 11 ft 2 in / 3.4 m | over the tracks, 31 in (800 mm) shoes · 11 ft 6 in / 3.5 m with 35 in (900 mm) shoes |
| Transport height | 11 ft / 3.35 m | in transport position |
| Weight | 72,700 lb / 32,960 kg | operating weight |
| Tail swing radius | 10 ft 7 in / 3.23 m | sets the clearance behind the swing centre on a flat rack |
| Track length | 16 ft 3 in / 4.95 m | |
| Track gauge | 8 ft 6 in / 2.6 m | |
| Upper frame width | 9 ft 10 in / 2.99 m | without the cab handrails |
| Ground clearance | 1 ft 7 in / 0.47 m | |
| Counterweight clearance | 3 ft 9 in / 1.13 m | underside of the counterweight to the ground |
| Machine type | Crawler excavator | |
| Configuration | Next-generation North American build: 20 ft 6 in (6.25 m) boom, 10 ft 2 in (3.1 m) arm, 1.8 yd³ (1.41 m³) bucket, 31 in (800 mm) shoes and the 11,900 lb (5.4 t) counterweight. Height to the guardrails (cab 10 ft 8 in / 3.24 m); the boom sits lower. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Hyundai HX300L, best first
Worked out from the dimensions above against container, flat rack and RoRo limits. RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | 40 ft flat rackBest fit | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (3 ft 3 in / 1 m over width, 4 ft 7 in / 1.4 m over height). |
| 2 | 40 ft high-cube container | After disassembly, across containers | Taken apart and loaded across at least 2 40 ft containers by weight, with open-tops for tall pieces: bucket off, stick and boom folded or detached, counterweight off, cab or ROPS removed and crated, upper structure lifted off the undercarriage, and track chains and shoes off. We survey the machine first and quote this next to shipping it whole. How we containerize |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
Hyundai publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 34 ft 9 in × 11 ft 2 in × 11 ft (10.59 × 3.4 × 3.35 m)72,700 lb (32,960 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 3 ft 3 in / 1 m over width, 4 ft 7 in / 1.4 m over height
- 40 ft high-cube door
- 3 ft 6 in / 1.06 m over the door width, 2 ft 6 in / 0.77 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Hyundai HX300L generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| Robex R290LC-9 | — | 1 × 40 ft open top, 1 ft / 0.3 m over the side walls + 1 × 40 ft high cube1 machine on record: Hyundai R290LC-9 |
| Robex R300LC-9 | — | No record yet; measured at pickup and quoted both ways |
| HX300A L | — | No record yet; measured at pickup and quoted both ways |
| HX300Lcurrent | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable excavators from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Hyundai HX300L | 34 ft 9 in × 11 ft 2 in × 11 ft (10.59 × 3.4 × 3.35 m) | 72,700 lb / 32,960 kg | 40 ft flat rack |
| DEVELON DX300LC-7 | 34 ft 10 in × 11 ft 2 in × 10 ft (10.61 × 3.4 × 3.05 m) | 73,400 lb / 33,300 kg | 2 × 40 ft high cube |
| Komatsu PC290LC-11 | 33 ft 8 in × 11 ft 1 in × 10 ft 9 in (10.27 × 3.39 × 3.28 m) | 71,500 lb / 32,450 kg | 40 ft flat rack |
| CAT 330 | 34 ft 2 in × 11 ft 1 in × 10 ft (10.42 × 3.39 × 3.06 m) | 69,200 lb / 31,400 kg | 1 × 40 ft open top, 1 ft / 0.3 m over the side walls + 1 × 40 ft high cube |
| Link-Belt 300 X4S | 34 ft 10 in × 11 ft 1 in × 10 ft 10 in (10.61 × 3.39 × 3.3 m) | 67,700 lb / 30,700 kg | 40 ft flat rack |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Hyundai HX300L go
VietnamTransit 18-28 daysImport duty 0%HS 8429.52 · 2023
Used Robex excavators for construction; containers into Hai Phong and Cat Lai.
Quote to Vietnam
KenyaTransit 25-35 daysImport duty 0%HS 8429.52 · 2023
Excavators through Mombasa; KEBS pre-export inspection is arranged before loading.
Quote to Kenya
PeruTransit 16-24 daysImport duty 0%HS 8429.52 · 2023
Excavators for mining and roadwork through Callao.
Quote to Peru
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a Hyundai HX300L for export
- Tier 4 Final Hyundai engines need ultra-low-sulfur diesel and DEF; check fuel quality at the destination before export.
- Hi-Mate telematics may stop working abroad; the dealer can end the subscription before export.
Hyundai HX300L shipping questions
Does a Hyundai HX300L fit in a shipping container?
At 72,700 lb (32,960 kg), the Hyundai HX300L is heavier than one container can carry, so it ships whole on a 40 ft flat rack (3 ft 3 in / 1 m over width, 4 ft 7 in / 1.4 m over height). RoRo is the alternative where a lane serves your port. It can also be containerized after disassembly (bucket off, stick and boom folded or detached, counterweight off, cab or ROPS removed and crated, upper structure lifted off the undercarriage, and track chains and shoes off), across at least 2 containers by weight; we survey it first and quote both.
How much does a Hyundai HX300L weigh for shipping?
Hyundai lists the Hyundai HX300L at 72,700 lb (32,960 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Hyundai HX300L?
34 ft 9 in × 11 ft 2 in × 11 ft (10.59 × 3.4 × 3.35 m) (length × width × height) in transport position, from Hyundai's published specifications for the Hyundai HX300L.
What has to come off a Hyundai HX300L to ship it?
To containerize it: bucket off, stick and boom folded or detached, counterweight off, cab or ROPS removed and crated, upper structure lifted off the undercarriage, and track chains and shoes off. Our crew does the work, crates and labels every part, and loads the pieces across at least 2 containers, with documentation for reassembly. Shipped whole on a flat rack or RoRo, it needs little or no disassembly.
Can a Hyundai HX300L ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
