CAT 229D: transport dimensions, weight and how it ships overseas
We load the CAT 229D in 1 × 40 ft open top + 1 × 40 ft high cube, from our own loading records. Shipped whole, it goes on a 40 ft flat rack (2 ft 9 in / 0.85 m over width, 5 ft 2 in / 1.57 m over height), or RoRo where a lane serves your port.
- Transport length
- 35 ft 9 in / 10.9 m
- Transport width
- 10 ft 8 in / 3.25 m
- Transport height
- 11 ft 7 in / 3.52 m
- Weight
- 69,900 lb / 31,700 kg
CAT 229D transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.

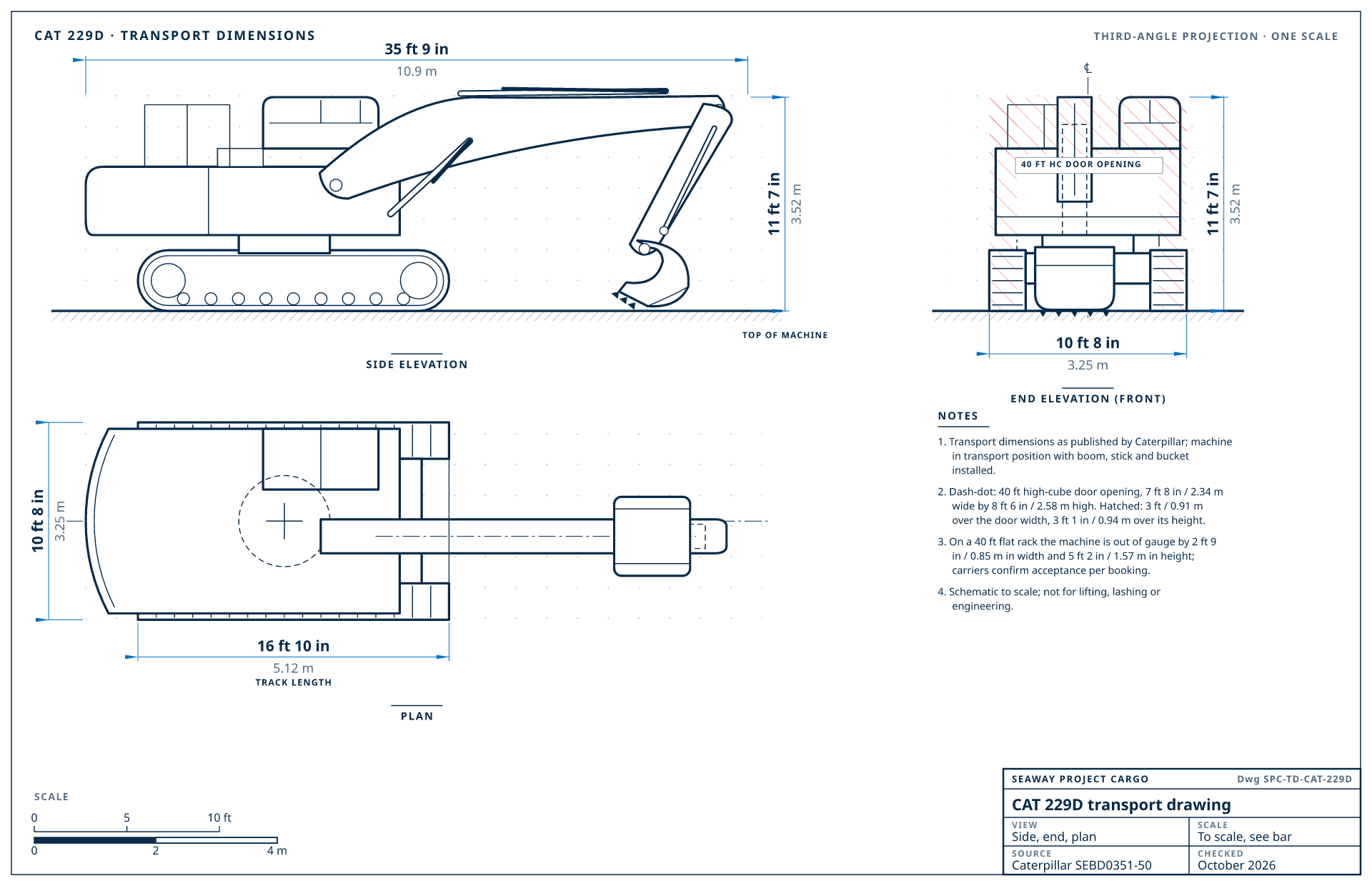

Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Caterpillar's published transport dimensions. Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
CAT 229D transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 35 ft 9 in / 10.9 m | boom, stick and bucket installed, transport position |
| Transport width | 10 ft 8 in / 3.25 m | overall width as published |
| Transport height | 11 ft 7 in / 3.52 m | in transport position |
| Weight | 69,900 lb / 31,700 kg | operating weight |
| Track gauge | 8 ft 8 in / 2.64 m | |
| Machine type | Hydraulic excavator | |
| Configuration | From the former-models table of the Caterpillar Performance Handbook (Edition 50), the only Cat document that still prints this model. It gives one configuration, shipped with the medium stick and the bucket curled under, and does not say whether the width is over the tracks or the upper structure, or whether the height is to the cab or the boom. | |
