CAT 330: transport dimensions, weight and how it ships overseas
The CAT 330 usually goes in 1 × 40 ft open top + 1 × 40 ft high cube, from our loading records for related models (CAT 330BL, CAT 330C, CAT 330CL). Shipped whole, it goes on a 40 ft flat rack (3 ft 3 in / 0.99 m over width, 3 ft 8 in / 1.11 m over height), or RoRo where a lane serves your port.
- Transport length
- 34 ft 2 in / 10.42 m
- Transport width
- 11 ft 1 in / 3.39 m
- Transport height
- 10 ft / 3.06 m
- Weight
- 69,200 lb / 31,400 kg

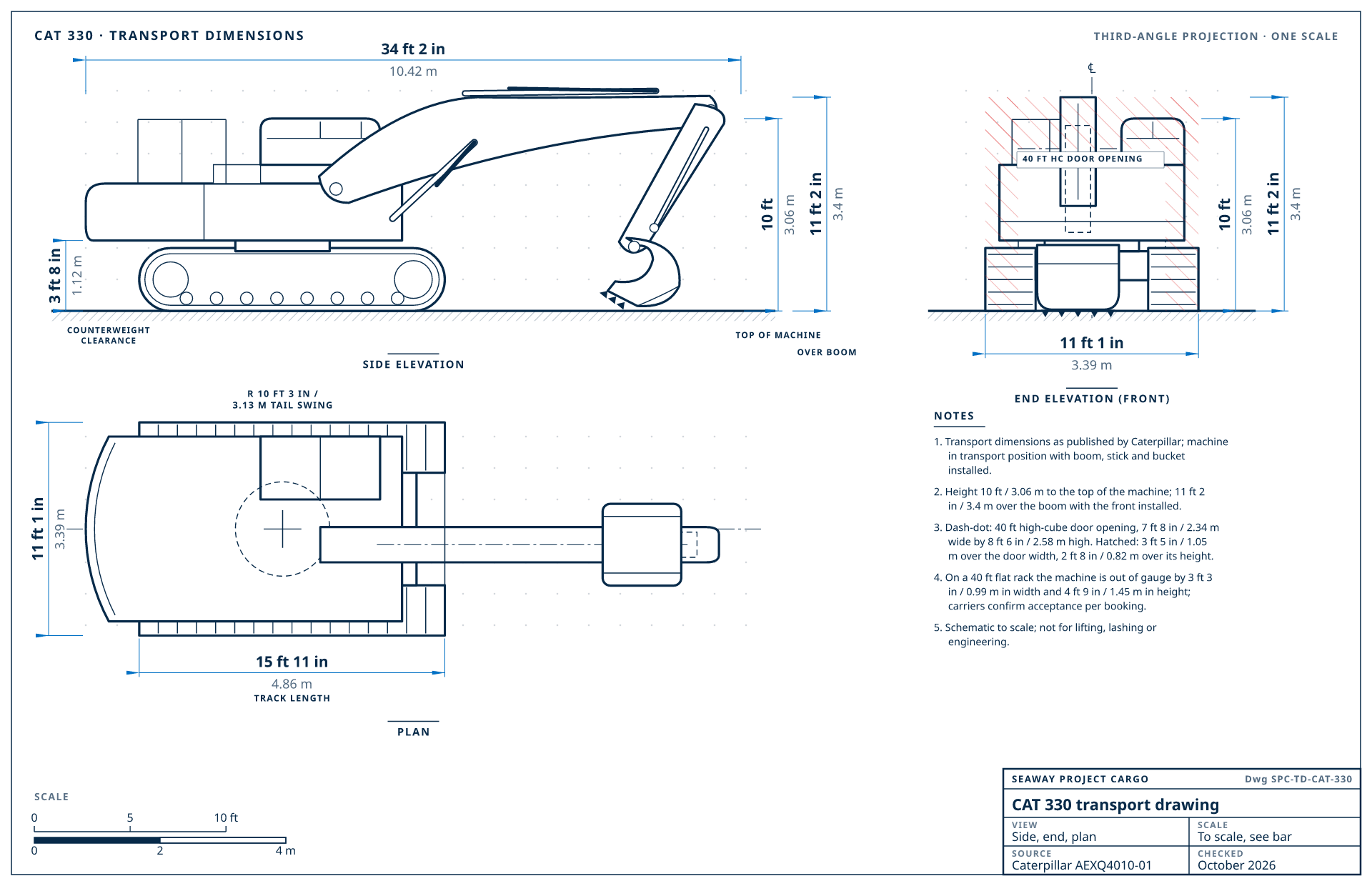

CAT 330 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Caterpillar's published transport dimensions (AEXQ4010-01, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
CAT 330 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 34 ft 2 in / 10.42 m | boom, stick and bucket installed, transport position |
| Transport width | 11 ft 1 in / 3.39 m | over the tracks, 31 in (800 mm) shoes · 10 ft 6 in / 3.19 m with 24 in (600 mm) shoes |
| Transport height | 10 ft / 3.06 m | to the top of the machine |
| Height over the boom | 11 ft 2 in / 3.4 m | boom, stick and bucket installed |
| Weight | 69,200 lb / 31,400 kg | operating weight |
| Tail swing radius | 10 ft 3 in / 3.13 m | sets the clearance behind the swing centre on a flat rack |
| Track length | 15 ft 11 in / 4.86 m | |
| Track gauge | 8 ft 6 in / 2.59 m | |
| Upper frame width | 9 ft 8 in / 2.94 m | without the cab handrails |
| Ground clearance | 1 ft 7 in / 0.49 m | |
| Counterweight clearance | 3 ft 8 in / 1.12 m | underside of the counterweight to the ground |
| Machine type | Hydraulic excavator | |
| Configuration | Next Gen with reach boom, 10 ft 6 in (3.2 m) stick, 2.3 yd³ (1.76 m³) bucket, 31 in (800 mm) shoes and the 14,800 lb (6.7 t) counterweight. Height to the cab and handrails; the boom in transport stands at 11 ft 2 in (3.40 m). | |
Manufacturer documents
- Technical specifications (PDF, AEXQ4010-01)
- Product brochure (PDF, AEXQ4338-01)
- Caterpillar product page
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a CAT 330, best first
Loaded by Seaway
How we load the CAT 330
Our loading records list earlier and sister models of the CAT 330 (CAT 330BL, CAT 330C, CAT 330CL). The usual plan is 1 × 40 ft open top, 1 ft / 0.3 m over the side walls + 1 × 40 ft high cube.
- 1 × 40 ft open top, 1 ft / 0.3 m over the side walls + 1 × 40 ft high cube
- Taken apart at the yard: boom, arm and bucket come off, sometimes the cab; the upper structure is lifted off the undercarriage and the pieces are loaded at an angle, the largest in the open top and the rest crated and lashed in the high cube. Larger machines are stripped further, down to the swing table.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft open top, 1 ft / 0.3 m over the side walls + 1 × 40 ft high cubeBest fit | From our loading records | Taken apart at the yard and loaded as in the plan above |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (3 ft 3 in / 0.99 m over width, 3 ft 8 in / 1.11 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
What goes in each box, by published component weight
1 × 40 ft open top, 1 ft / 0.3 m over the side walls
41,000 lb / 18,600 kg
upper structure (less counterweight) *, undercarriage frame, and track shoes and chains
1 × 40 ft high cube
27,200 lb / 12,320 kg
counterweight, boom, boom cylinders, stick, and bucket
Component weights as published by Caterpillar (AEXQ4010-01); the survey confirms the pieces and the box each one goes in. Marked * : worked out from other published weights (the base machine less the parts listed separately). Another 1,060 lb / 480 kg of the operating weight is fuel and operator, which travel in no box.
Will it fit? Published configurations
Caterpillar publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 34 ft 2 in × 11 ft 1 in × 10 ft (10.42 × 3.39 × 3.06 m)69,200 lb (31,400 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 3 ft 3 in / 0.99 m over width, 3 ft 8 in / 1.11 m over height
- 40 ft high-cube door
- 3 ft 5 in / 1.05 m over the door width, 1 ft 7 in / 0.48 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
CAT 330 generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| 330 / 330L (first series) | — | No record yet; measured at pickup and quoted both ways |
| 330B / 330B L | — | 1 × 40 ft open top, 1 ft / 0.3 m over the side walls + 1 × 40 ft high cube1 machine on record: CAT 330BL |
| 330C / 330C L | — | 1 × 40 ft open top, 1 ft / 0.3 m over the side walls + 1 × 40 ft high cube2 machines on record: CAT 330C, CAT 330CL |
| 330D / 330D L | — | No record yet; measured at pickup and quoted both ways |
| 330E / 330E L | — | No record yet; measured at pickup and quoted both ways |
| 330F / 330F L | — | No record yet; measured at pickup and quoted both ways |
| 330 (Next Gen)current | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable excavators from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| CAT 330 | 34 ft 2 in × 11 ft 1 in × 10 ft (10.42 × 3.39 × 3.06 m) | 69,200 lb / 31,400 kg | 1 × 40 ft open top, 1 ft / 0.3 m over the side walls + 1 × 40 ft high cube |
| Link-Belt 300 X4S | 34 ft 10 in × 11 ft 1 in × 10 ft 10 in (10.61 × 3.39 × 3.3 m) | 67,700 lb / 30,700 kg | 40 ft flat rack |
| Komatsu PC290LC-11 | 33 ft 8 in × 11 ft 1 in × 10 ft 9 in (10.27 × 3.39 × 3.28 m) | 71,500 lb / 32,450 kg | 40 ft flat rack |
| Hyundai HX300L | 34 ft 9 in × 11 ft 2 in × 11 ft (10.59 × 3.4 × 3.35 m) | 72,700 lb / 32,960 kg | 40 ft flat rack |
| DEVELON DX300LC-7 | 34 ft 10 in × 11 ft 2 in × 10 ft (10.61 × 3.4 × 3.05 m) | 73,400 lb / 33,300 kg | 2 × 40 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the CAT 330 go
NigeriaTransit 21-30 daysImport duty 5%HS 8429.52 · 2023
Form M must be opened through a Nigerian bank before the machine ships.
Quote to Nigeria
Saudi ArabiaTransit 18-25 daysImport duty 5%HS 8429.52 · 2023
Shipments need SABER conformity certificates arranged before arrival.
Quote to Saudi Arabia
AustraliaTransit 28-35 daysImport duty 0–5%HS 8429.52 · 2023
Strict biosecurity cleaning; dirty undercarriages are re-cleaned at the importer's cost.
Quote to Australia
ChileTransit 21-28 daysImport duty 6%HS 8429.52 · 2023
Quote to Chile
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a CAT 330 for export
- Tier 4 Final and Stage V engines need ultra-low-sulfur diesel (15 ppm or less) and DEF. Where only high-sulfur diesel is sold, the after-treatment clogs, so check fuel quality or source a lower-tier export machine.
- Telematics (such as Cat Product Link, Komtrax or JDLink) may stop working abroad; the dealer can transfer or end the subscription before export.
CAT 330 shipping questions
Does a CAT 330 fit in a shipping container?
Not in one piece: at 69,200 lb (31,400 kg) it is heavier than one container carries. Taken apart, it goes in 1 × 40 ft open top, 1 ft / 0.3 m over the side walls + 1 × 40 ft high cube, the plan from our loading records.
How much does a CAT 330 weigh for shipping?
Caterpillar lists the CAT 330 at 69,200 lb (31,400 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a CAT 330?
34 ft 2 in × 11 ft 1 in × 10 ft (10.42 × 3.39 × 3.06 m) (length × width × height) in transport position, from Caterpillar's published specifications for the CAT 330.
What has to come off a CAT 330 to ship it?
For 1 × 40 ft open top + 1 × 40 ft high cube: 1 × 40 ft open top: upper structure (less counterweight), undercarriage frame, and track shoes and chains (41,000 lb / 18,600 kg); 1 × 40 ft high cube: counterweight, boom, boom cylinders, stick, and bucket (27,200 lb / 12,320 kg). Our crew does the work, crates and labels the loose parts and documents everything for reassembly.
Can a CAT 330 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
