Motor grader · Caterpillar

CAT 18: transport dimensions, weight and how it ships overseas

At 74,300 lb (33,713 kg), the CAT 18 is heavier than one container can carry, so it ships whole on a 40 ft flat rack (3 ft 4 in / 1.01 m over width, 5 ft 11 in / 1.8 m over height). RoRo is the alternative where a lane serves your port.

Transport length
39 ft 6 in / 12.05 m
Transport width
11 ft 2 in / 3.41 m
Transport height
12 ft 3 in / 3.75 m
Weight
74,300 lb / 33,713 kg
Quote my CAT 18Call Specialist

CAT 18 transport drawing

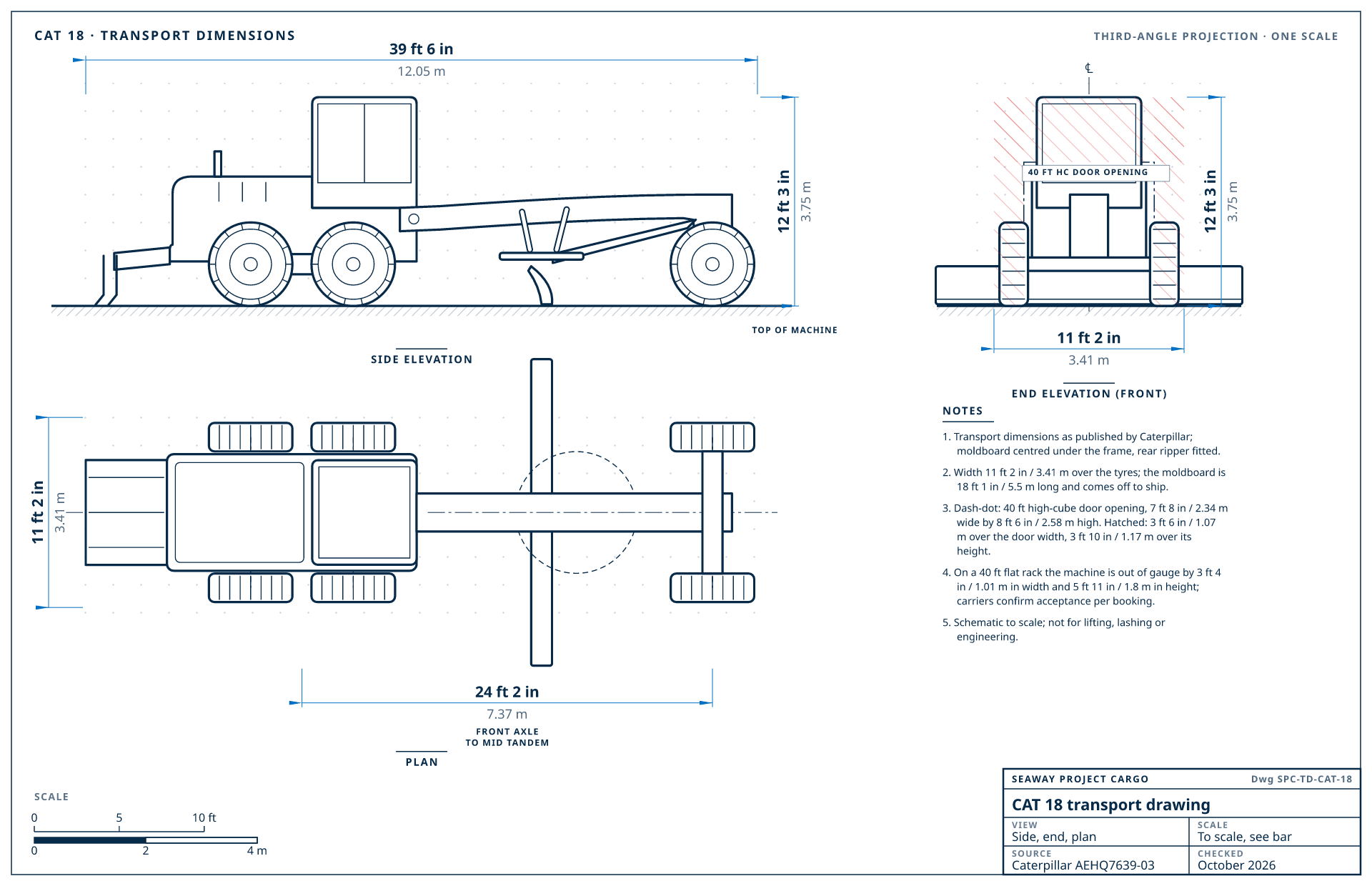

CAT 18 transport drawingSide elevation, end elevation and plan of the CAT 18, drawn to scale from the manufacturer's transport dimensions: 39 ft 6 in / 12.05 m long, 11 ft 2 in / 3.41 m wide, 12 ft 3 in / 3.75 m high, 74,300 lb (33,713 kg).CAT 18 · TRANSPORT DIMENSIONSTHIRD-ANGLE PROJECTION · ONE SCALE39 ft 6 in12.05 m12 ft 3 in3.75 mTOP OF MACHINESIDE ELEVATION℄40 FT HC DOOR OPENING11 ft 2 in3.41 m12 ft 3 in3.75 mEND ELEVATION (FRONT)11 ft 2 in3.41 m24 ft 2 in7.37 mFRONT AXLETO MID TANDEMPLANNOTES1. Transport dimensions as published by Caterpillar;moldboard centred under the frame, rear ripper fitted.2. Width 11 ft 2 in / 3.41 m over the tyres; the moldboard is18 ft 1 in / 5.5 m long and comes off to ship.3. Dash-dot: 40 ft high-cube door opening, 7 ft 8 in / 2.34 mwide by 8 ft 6 in / 2.58 m high. Hatched: 3 ft 6 in / 1.07m over the door width, 3 ft 10 in / 1.17 m over itsheight.4. On a 40 ft flat rack the machine is out of gauge by 3 ft 4in / 1.01 m in width and 5 ft 11 in / 1.8 m in height;carriers confirm acceptance per booking.5. Schematic to scale; not for lifting, lashing orengineering.SCALE0510 ft024 mSEAWAY PROJECT CARGODwg SPC-TD-CAT-18CAT 18 transport drawingVIEWSide, end, planSCALETo scale, see barSOURCECaterpillar AEHQ7639-03CHECKEDOctober 2026

Scroll sideways to read the drawing, or turn your phone.

CAT 18 transport drawing
Download the CAT 18 drawing (PNG)

1920 × 1240 px. Free to use with a link to this page.

Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Caterpillar's published transport dimensions (AEHQ7639-03, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.

CAT 18 transport specifications

SpecificationValueBasis
Transport length39 ft 6 in / 12.05 mmoldboard centred under the frame, rear ripper fitted
Transport width11 ft 2 in / 3.41 mover the tyres
Transport height12 ft 3 in / 3.75 mto the top of the cab or ROPS
Weight74,300 lb / 33,713 kgoperating weight
Moldboard length18 ft 1 in / 5.5 mstandard moldboard; comes off its circle to ship
Wheelbase24 ft 2 in / 7.37 mfront axle to the middle of the tandem
Tandem axle spacing6 ft / 1.84 mrear tandem axle centre to centre
Front axle to moldboard10 ft 1 in / 3.07 m
Tread8 ft 10 in / 2.7 mtyre centre to tyre centre
Ground clearance1 ft 5 in / 0.42 m
Machine typeMotor grader
Configuration18 ft 1 in (5.50 m) moldboard, 23.5R25 tyres. Front counterweight and ripper are standard; length and weight include them.

Manufacturer documents

Links and figures checked October 2026. Linked from the manufacturer; we do not host them.

Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.

Every way to ship a CAT 18, best first

Worked out from the dimensions above against container, flat rack and RoRo limits. RoRo depends on a regular sailing to your port.

#Best methodFitPreparation
140 ft flat rackBest fitOut-of-gaugeShips assembled, blocked and lashed; out-of-gauge surcharge applies (3 ft 4 in / 1.01 m over width, 5 ft 11 in / 1.8 m over height).
240 ft high-cube containerAfter disassembly, across containersTaken apart and loaded across at least 2 40 ft containers by weight, with open-tops for tall pieces: moldboard off, ripper off, cab or ROPS removed and crated, wheels off, and frame split at the articulation. We survey the machine first and quote this next to shipping it whole. How we containerize
3RoRoWhere a RoRo lane serves the destinationDrives on assembled where a RoRo lane serves the destination.
4BreakbulkFits as isLifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port.

See how we containerize heavy equipment

CAT 18 generations and how each has shipped

GenerationYears (approx.)How Seaway has loaded it
18current—1 × 45 ft high cube2 machines on record: CAT M318, CAT 518

Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.

Comparable motor graders from other brands

MachineL × W × H (transport)WeightShips
CAT 1839 ft 6 in × 11 ft 2 in × 12 ft 3 in (12.05 × 3.41 × 3.75 m)74,300 lb / 33,713 kg40 ft flat rack
Komatsu GD825A-237 ft 8 in × 10 ft 10 in × 11 ft 8 in (11.47 × 3.31 × 3.55 m)69,800 lb / 31,655 kg1 × 40 ft high cube

Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.

Where machines like the CAT 18 go

  • NigeriaTransit 21-30 days

    Import duty 5%HS 8429.20 · 2023

    Form M must be opened through a Nigerian bank before the machine ships.

    Quote to Nigeria
  • Saudi ArabiaTransit 18-25 days

    Import duty 5%HS 8429.20 · 2023

    Shipments need SABER conformity certificates arranged before arrival.

    Quote to Saudi Arabia
  • AustraliaTransit 28-35 days

    Import duty 5%HS 8429.20 · 2023

    Strict biosecurity cleaning; dirty undercarriages are re-cleaned at the importer's cost.

    Quote to Australia
  • ChileTransit 21-28 days

    Import duty 6%HS 8429.20 · 2023

    Quote to Chile

Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff

Preparing a CAT 18 for export

  • Tier 4 Final and Stage V engines need ultra-low-sulfur diesel (15 ppm or less) and DEF. Where only high-sulfur diesel is sold, the after-treatment clogs, so check fuel quality or source a lower-tier export machine.
  • Telematics (such as Cat Product Link, Komtrax or JDLink) may stop working abroad; the dealer can transfer or end the subscription before export.

CAT 18 shipping questions

Does a CAT 18 fit in a shipping container?

At 74,300 lb (33,713 kg), the CAT 18 is heavier than one container can carry, so it ships whole on a 40 ft flat rack (3 ft 4 in / 1.01 m over width, 5 ft 11 in / 1.8 m over height). RoRo is the alternative where a lane serves your port. It can also be containerized after disassembly (moldboard off, ripper off, cab or ROPS removed and crated, wheels off, and frame split at the articulation), across at least 2 containers by weight; we survey it first and quote both.

How much does a CAT 18 weigh for shipping?

Caterpillar lists the CAT 18 at 74,300 lb (33,713 kg) (operating weight); the bill of lading uses your machine's own weight.

What are the shipping dimensions of a CAT 18?

39 ft 6 in × 11 ft 2 in × 12 ft 3 in (12.05 × 3.41 × 3.75 m) (length × width × height) in transport position, from Caterpillar's published specifications for the CAT 18.

What has to come off a CAT 18 to ship it?

To containerize it: moldboard off, ripper off, cab or ROPS removed and crated, wheels off, and frame split at the articulation. Our crew does the work, crates and labels every part, and loads the pieces across at least 2 containers, with documentation for reassembly. Shipped whole on a flat rack or RoRo, it needs little or no disassembly.

Can a CAT 18 ship RoRo?

Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
