Komatsu GD825A-2: transport dimensions, weight and how it ships overseas
We load the Komatsu GD825A-2 in 1 × 40 ft high cube, from our own loading records. Shipped whole, it goes on a 40 ft flat rack (3 ft / 0.91 m over width, 5 ft 3 in / 1.6 m over height), or RoRo where a lane serves your port.
- Transport length
- 37 ft 8 in / 11.47 m
- Transport width
- 10 ft 10 in / 3.31 m
- Transport height
- 11 ft 8 in / 3.55 m
- Weight
- 69,800 lb / 31,655 kg

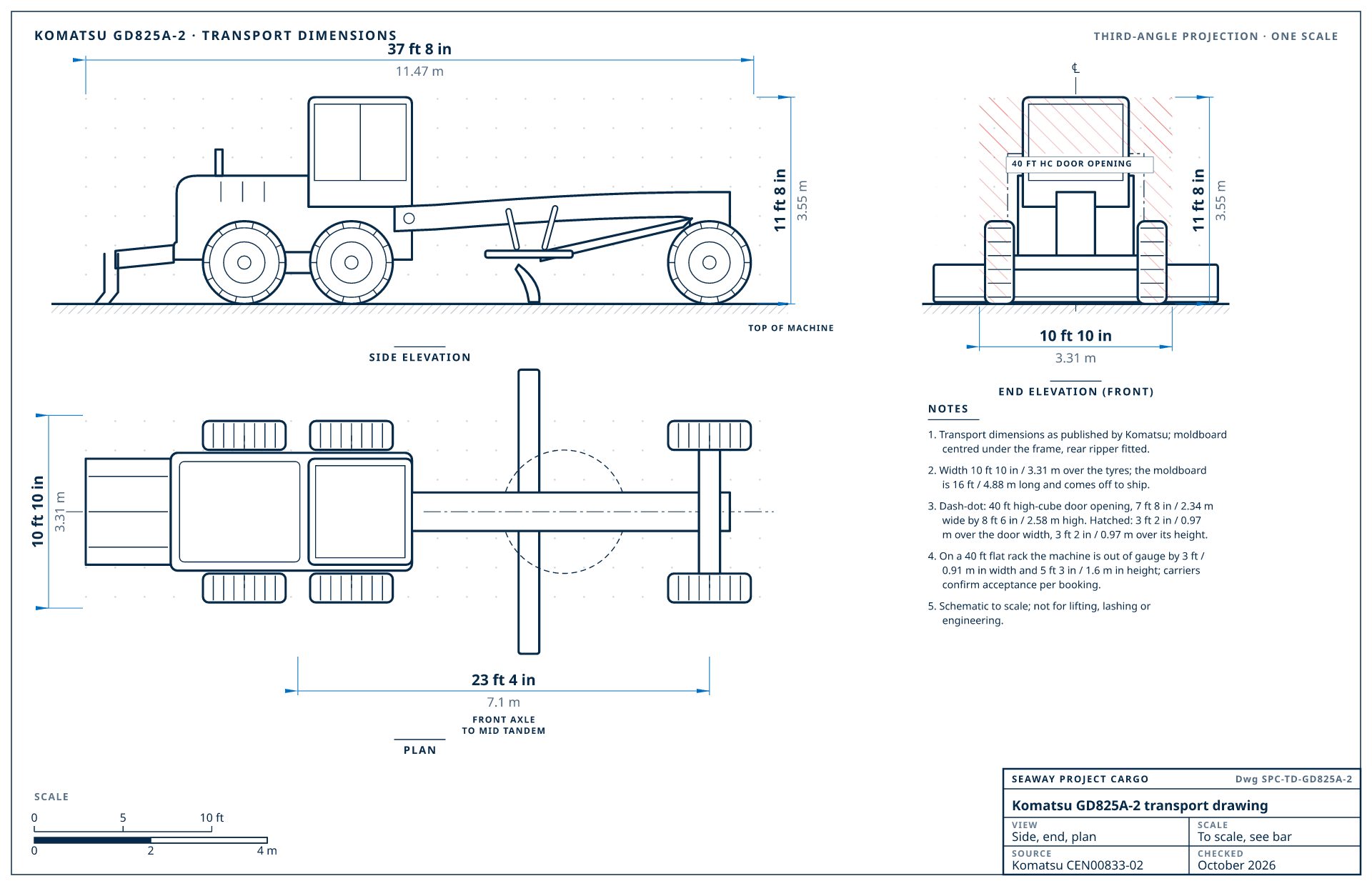

Komatsu GD825A-2 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Komatsu's published transport dimensions (CEN00833-02, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Komatsu GD825A-2 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 37 ft 8 in / 11.47 m | moldboard centred under the frame, rear ripper fitted |
| Transport width | 10 ft 10 in / 3.31 m | over the tyres |
| Transport height | 11 ft 8 in / 3.55 m | to the top of the cab or ROPS |
| Weight | 69,800 lb / 31,655 kg | operating weight |
| Moldboard length | 16 ft / 4.88 m | standard moldboard; comes off its circle to ship |
| Wheelbase | 23 ft 4 in / 7.1 m | front axle to the middle of the tandem |
| Tandem axle spacing | 6 ft / 1.84 m | rear tandem axle centre to centre |
| Front axle to moldboard | 10 ft 2 in / 3.1 m | |
| Tread | 8 ft 7 in / 2.62 m | tyre centre to tyre centre |
| Ground clearance | 2 ft 3 in / 0.68 m | |
| Machine type | Motor grader | |
| Configuration | 16 ft (4.88 m) moldboard, 23.50-25 tyres. Length and weight include the ripper and push plate, as Komatsu prints them. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Komatsu GD825A-2, best first
Loaded by Seaway
How we load the Komatsu GD825A-2
We have dismantled and loaded the Komatsu GD825A-2 for export before. It goes in 1 × 40 ft high cube.
- 1 × 40 ft high cube
- Before loading: drive shaft disconnected.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft high cubeBest fit | From our loading records | drive shaft disconnected |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (3 ft / 0.91 m over width, 5 ft 3 in / 1.6 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Komatsu GD825A-2 generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| GD825A-2current | — | 1 × 40 ft high cube1 machine on record: Komatsu GD825A-2 |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable motor graders from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Komatsu GD825A-2 | 37 ft 8 in × 10 ft 10 in × 11 ft 8 in (11.47 × 3.31 × 3.55 m) | 69,800 lb / 31,655 kg | 1 × 40 ft high cube |
| CAT 18 | 39 ft 6 in × 11 ft 2 in × 12 ft 3 in (12.05 × 3.41 × 3.75 m) | 74,300 lb / 33,713 kg | 40 ft flat rack |
| CAT 16 | 34 ft 9 in × 11 ft 2 in × 12 ft 2 in (10.59 × 3.41 × 3.72 m) | 63,500 lb / 28,816 kg | 1 × 40 ft high cube |
| CAT 14 | 35 ft 9 in × 10 ft × 11 ft 8 in (10.9 × 3.05 × 3.57 m) | 57,200 lb / 25,968 kg | 1 × 40 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Komatsu GD825A-2 go
AustraliaTransit 28-35 daysImport duty 5%HS 8429.20 · 2023
Biosecurity cleaning is inspected on arrival; we clean before loading.
Quote to Australia
GhanaTransit 20-28 daysImport duty 5%HS 8429.20 · 2023
Customs declarations go through Ghana's ICUMS system.
Quote to Ghana
United Arab EmiratesTransit 20-28 daysImport duty 5%HS 8429.20 · 2023
Jebel Ali is a common re-export hub for the Gulf and East Africa.
Quote to United Arab Emirates
PhilippinesTransit 18-28 daysImport duty 0%HS 8429.20 · 2023
Usually shipped from the West Coast on flat racks.
Quote to Philippines
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a Komatsu GD825A-2 for export
- Tier 4 Final and Stage V engines need ultra-low-sulfur diesel (15 ppm or less) and DEF. Where only high-sulfur diesel is sold, the after-treatment clogs, so check fuel quality or source a lower-tier export machine.
- Telematics (such as Cat Product Link, Komtrax or JDLink) may stop working abroad; the dealer can transfer or end the subscription before export.
- HD785 and larger rigid trucks ship with the dump body off; RoRo works where a lane exists, otherwise breakbulk.
Komatsu GD825A-2 shipping questions
Does a Komatsu GD825A-2 fit in a shipping container?
Not in one piece: at 69,800 lb (31,655 kg) it is heavier than one container carries. Taken apart, it goes in 1 × 40 ft high cube, the plan from our loading records.
How much does a Komatsu GD825A-2 weigh for shipping?
Komatsu lists the Komatsu GD825A-2 at 69,800 lb (31,655 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Komatsu GD825A-2?
37 ft 8 in × 10 ft 10 in × 11 ft 8 in (11.47 × 3.31 × 3.55 m) (length × width × height) in transport position, from Komatsu's published specifications for the Komatsu GD825A-2.
What has to come off a Komatsu GD825A-2 to ship it?
For 1 × 40 ft high cube: drive shaft disconnected. Our crew does the work, crates and labels the loose parts and documents everything for reassembly.
Can a Komatsu GD825A-2 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
