Komatsu D61EXi-24: transport dimensions, weight and how it ships overseas
The Komatsu D61EXi-24 usually goes in 1 × 40 ft high cube, from our loading records for related models (Komatsu D61EX-12). Shipped whole, it goes on a 40 ft flat rack (4 in / 0.1 m over width, 4 ft 7 in / 1.39 m over height), or RoRo where a lane serves your port.
- Transport length
- 18 ft / 5.48 m
- Transport width
- 8 ft 2 in / 2.5 m
- Transport height
- 10 ft 11 in / 3.34 m
- Weight
- 41,100 lb / 18,640 kg

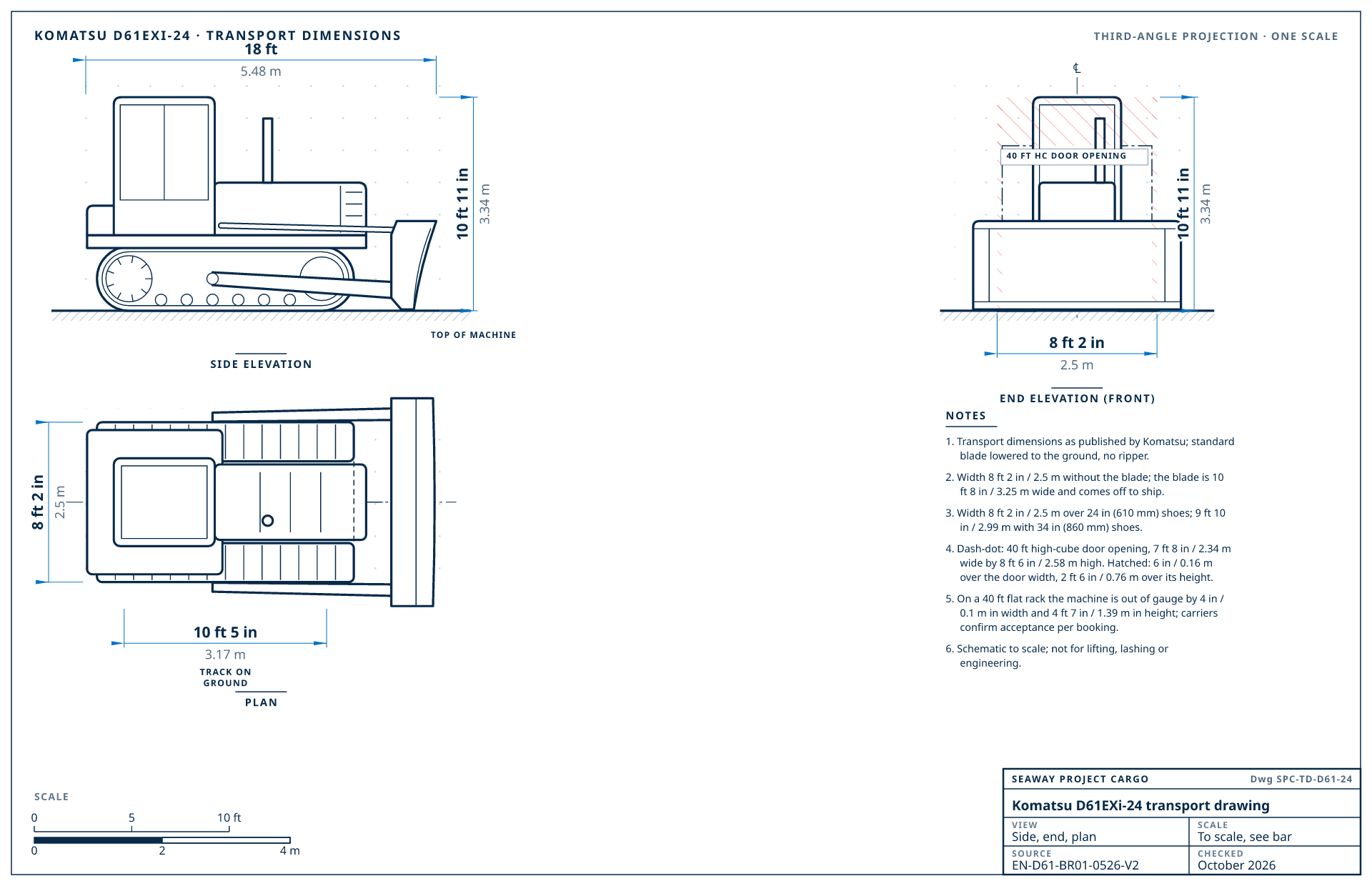

Komatsu D61EXi-24 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Komatsu's published transport dimensions (EN-D61-BR01-0526-V2, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Komatsu D61EXi-24 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 18 ft / 5.48 m | blade on the ground, no ripper |
| Transport width | 8 ft 2 in / 2.5 m | over the tracks, 24 in (610 mm) shoes · 9 ft 10 in / 2.99 m with 34 in (860 mm) shoes |
| Transport height | 10 ft 11 in / 3.34 m | to the top of the cab or ROPS |
| Weight | 41,100 lb / 18,640 kg | operating weight |
| Track length | 10 ft 5 in / 3.17 m | |
| Track gauge | 6 ft 3 in / 1.9 m | |
| Blade width | 10 ft 8 in / 3.25 m | standard blade; wider than the tracks, comes off to ship |
| Ground clearance | 1 ft 3 in / 0.39 m | |
| Machine type | Crawler dozer | |
| Configuration | 4.4 yd³ (3.4 m³) power angle-tilt (pat) blade, 24 in (610 mm) shoes, no ripper. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Komatsu D61EXi-24, best first
Loaded by Seaway
How we load the Komatsu D61EXi-24
Our loading records list earlier and sister models of the Komatsu D61EXi-24 (Komatsu D61EX-12). The usual plan is 1 × 40 ft high cube.
- 1 × 40 ft high cube
- Before loading: cab or ROPS removed and crated, blade off, track chains and shoes off.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft high cubeBest fit | From our loading records | cab or ROPS removed and crated, blade off, and track chains and shoes off |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (4 in / 0.1 m over width, 4 ft 7 in / 1.39 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
What goes in each box, by published component weight
1 × 40 ft high cube
41,100 lb / 18,640 kg
basic tractor (with the cab and tracks, less the blade and ripper) and blade *
Component weights as published by Komatsu (EN-D61-BR01-0526-V2); the survey confirms the pieces and the box each one goes in. Marked * : worked out from other published weights (the base machine less the parts listed separately).
Will it fit? Published configurations
Komatsu publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 18 ft × 8 ft 2 in × 10 ft 11 in (5.48 × 2.5 × 3.34 m)41,100 lb (18,640 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 4 in / 0.1 m over width, 4 ft 7 in / 1.39 m over height
- 40 ft high-cube door
- 6 in / 0.16 m over the door width, 2 ft 6 in / 0.76 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Komatsu D61EXi-24 generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| D61EX-12 / D61PX-12 | — | 1 × 40 ft high cube1 machine on record: Komatsu D61EX-12 |
| D61EX-15 / D61PX-15 | — | No record yet; measured at pickup and quoted both ways |
| D61EX-23 / D61PX-23 | — | No record yet; measured at pickup and quoted both ways |
| D61EX/EXi/PX/PXi-24current | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable dozers from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Komatsu D61EXi-24 | 18 ft × 8 ft 2 in × 10 ft 11 in (5.48 × 2.5 × 3.34 m) | 41,100 lb / 18,640 kg | 1 × 40 ft high cube |
| Liebherr PR 726 | 18 ft 2 in × 8 ft 2 in × 10 ft 6 in (5.54 × 2.5 × 3.21 m) | 38,900 lb / 17,658 kg | 40 ft flat rack |
| Case 1650M | 18 ft 8 in × 8 ft 4 in × 9 ft 8 in (5.68 × 2.53 × 2.95 m) | 38,200 lb / 17,347 kg | 40 ft flat rack |
| CAT D5 | 16 ft 5 in × 8 ft 2 in × 10 ft 1 in (5 × 2.5 × 3.09 m) | 37,900 lb / 17,180 kg | 1 × 40 ft high cube |
| John Deere 750 P-Tier | 17 ft 7 in × 8 ft × 10 ft 8 in (5.36 × 2.44 × 3.25 m) | 37,600 lb / 17,041 kg | 40 ft flat rack |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Komatsu D61EXi-24 go
AustraliaTransit 28-35 daysImport duty 0%HS 8429.11 · 2023
Biosecurity cleaning is inspected on arrival; we clean before loading.
Quote to Australia
GhanaTransit 20-28 daysImport duty 5%HS 8429.11 · 2023
Customs declarations go through Ghana's ICUMS system.
Quote to Ghana
United Arab EmiratesTransit 20-28 daysImport duty 5%HS 8429.11 · 2023
Jebel Ali is a common re-export hub for the Gulf and East Africa.
Quote to United Arab Emirates
PhilippinesTransit 18-28 daysImport duty 0%HS 8429.11 · 2023
Usually shipped from the West Coast on flat racks.
Quote to Philippines
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a Komatsu D61EXi-24 for export
- Tier 4 Final and Stage V engines need ultra-low-sulfur diesel (15 ppm or less) and DEF. Where only high-sulfur diesel is sold, the after-treatment clogs, so check fuel quality or source a lower-tier export machine.
- Telematics (such as Cat Product Link, Komtrax or JDLink) may stop working abroad; the dealer can transfer or end the subscription before export.
- HD785 and larger rigid trucks ship with the dump body off; RoRo works where a lane exists, otherwise breakbulk.
Komatsu D61EXi-24 shipping questions
Does a Komatsu D61EXi-24 fit in a shipping container?
Not in one piece: at 8 ft 2 in (2.5 m) wide it is wider than a 40 ft high-cube door (7 ft 8 in / 2.34 m). Taken apart, it goes in 1 × 40 ft high cube, the plan from our loading records.
How much does a Komatsu D61EXi-24 weigh for shipping?
Komatsu lists the Komatsu D61EXi-24 at 41,100 lb (18,640 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Komatsu D61EXi-24?
18 ft × 8 ft 2 in × 10 ft 11 in (5.48 × 2.5 × 3.34 m) (length × width × height) in transport position, from Komatsu's published specifications for the Komatsu D61EXi-24.
What has to come off a Komatsu D61EXi-24 to ship it?
For 1 × 40 ft high cube: 1 × 40 ft high cube: basic tractor (with the cab and tracks, less the blade and ripper) and blade (41,100 lb / 18,640 kg). Our crew does the work, crates and labels the loose parts and documents everything for reassembly.
Can a Komatsu D61EXi-24 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
