Liebherr PR 726: transport dimensions, weight and how it ships overseas
At 8 ft 2 in (2.5 m) wide, the Liebherr PR 726 is wider than a container door in one piece (7 ft 8 in / 2.34 m), so it ships whole on a 40 ft flat rack (4 in / 0.1 m over width, 4 ft 2 in / 1.26 m over height). RoRo is the alternative where a lane serves your port.
- Transport length
- 18 ft 2 in / 5.54 m
- Transport width
- 8 ft 2 in / 2.5 m
- Transport height
- 10 ft 6 in / 3.21 m
- Weight
- 38,900 lb / 17,658 kg

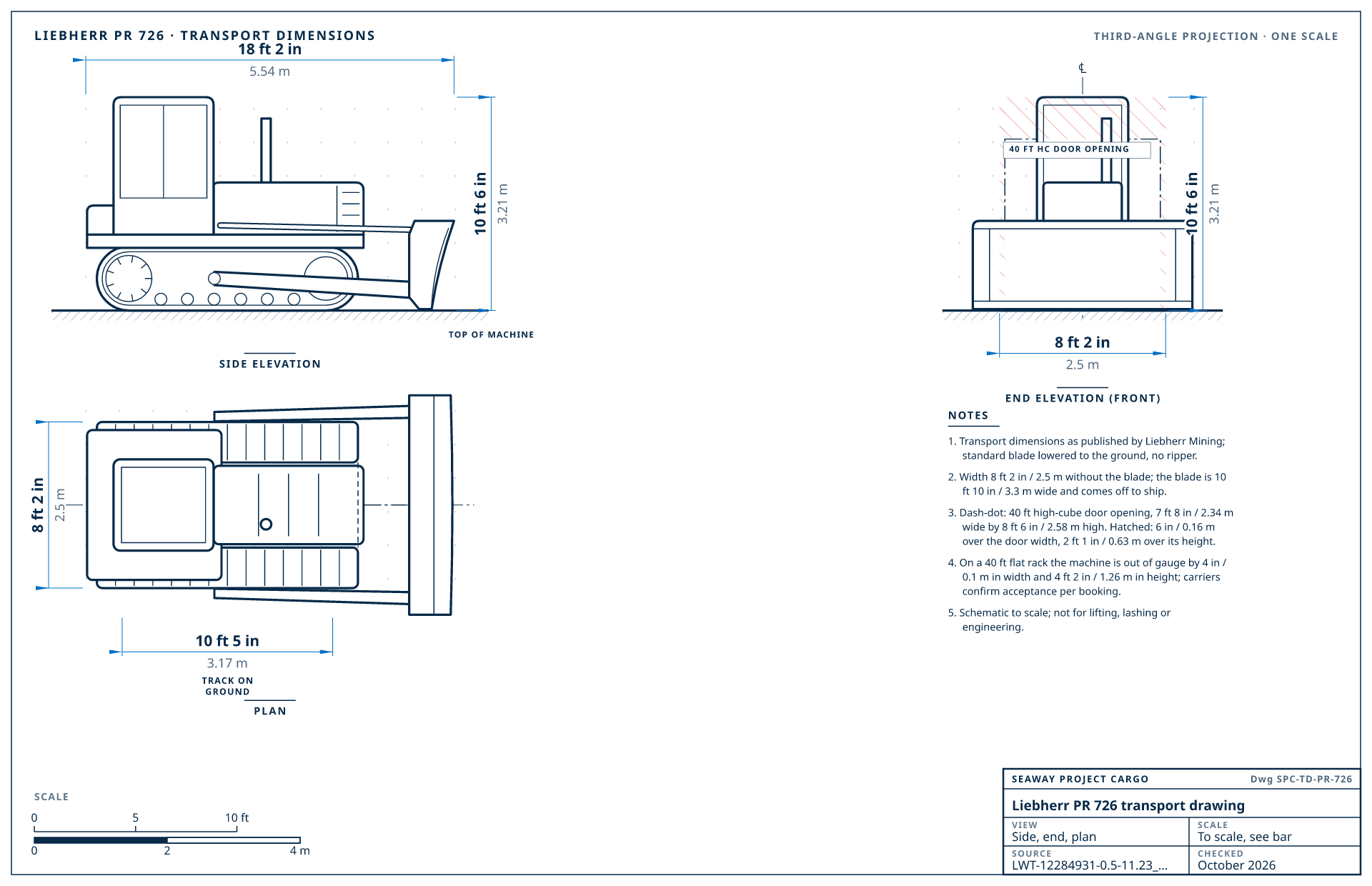

Liebherr PR 726 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Liebherr Mining's published transport dimensions (LWT-12284931-0.5-11.23_enGB, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Liebherr PR 726 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 18 ft 2 in / 5.54 m | blade on the ground, no ripper |
| Length, basic tractor | 13 ft 9 in / 4.18 m | without blade, push arms or ripper |
| Transport width | 8 ft 2 in / 2.5 m | over the tracks, 24 in (610 mm) shoes |
| Transport height | 10 ft 6 in / 3.21 m | to the top of the cab or ROPS |
| Weight | 38,900 lb / 17,658 kg | operating weight |
| Track length | 10 ft 5 in / 3.17 m | |
| Track gauge | 6 ft 2 in / 1.89 m | |
| Blade width | 10 ft 10 in / 3.3 m | standard blade; wider than the tracks, comes off to ship |
| Ground clearance | 1 ft 5 in / 0.43 m | |
| Machine type | Crawler dozer | |
| Configuration | 4.4 yd³ (3.33 m³) 6-way blade, 24 in (610 mm) shoes, no ripper. Shipping weight 33,700 lb (15,270 kg). Generation 8. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Liebherr PR 726, best first
Worked out from the dimensions above against container, flat rack and RoRo limits. RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | 40 ft flat rackBest fit | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (4 in / 0.1 m over width, 4 ft 2 in / 1.26 m over height). |
| 2 | 40 ft high-cube container | After disassembly, across containers | Taken apart and loaded across one or more 40 ft containers, with open-tops for tall pieces: blade off, ripper off, cab or ROPS removed and crated, and track chains and shoes off. We survey the machine first and quote this next to shipping it whole. How we containerize |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
Liebherr Mining publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 18 ft 2 in × 8 ft 2 in × 10 ft 6 in (5.54 × 2.5 × 3.21 m)38,900 lb (17,658 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 4 in / 0.1 m over width, 4 ft 2 in / 1.26 m over height
- 40 ft high-cube door
- 6 in / 0.16 m over the door width, 2 ft 1 in / 0.63 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Liebherr PR 726 generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| PR 724 | — | No record yet; measured at pickup and quoted both ways |
| PR 726 | 2015 | No record yet; measured at pickup and quoted both ways |
| PR 726 G8current | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable dozers from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Liebherr PR 726 | 18 ft 2 in × 8 ft 2 in × 10 ft 6 in (5.54 × 2.5 × 3.21 m) | 38,900 lb / 17,658 kg | 40 ft flat rack |
| Case 1650M | 18 ft 8 in × 8 ft 4 in × 9 ft 8 in (5.68 × 2.53 × 2.95 m) | 38,200 lb / 17,347 kg | 40 ft flat rack |
| CAT D5 | 16 ft 5 in × 8 ft 2 in × 10 ft 1 in (5 × 2.5 × 3.09 m) | 37,900 lb / 17,180 kg | 1 × 40 ft high cube |
| John Deere 750 P-Tier | 17 ft 7 in × 8 ft × 10 ft 8 in (5.36 × 2.44 × 3.25 m) | 37,600 lb / 17,041 kg | 40 ft flat rack |
| Komatsu D61EXi-24 | 18 ft × 8 ft 2 in × 10 ft 11 in (5.48 × 2.5 × 3.34 m) | 41,100 lb / 18,640 kg | 1 × 40 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Liebherr PR 726 go
ChileTransit 21-28 daysImport duty 6%HS 8429.11 · 2023
Copper mines; modules move by breakbulk to Antofagasta and similar ports.
Quote to Chile
AustraliaTransit 28-35 daysImport duty 0%HS 8429.11 · 2023
Iron ore and coal; biosecurity cleaning still applies to every module.
Quote to Australia
South AfricaTransit 22-32 daysImport duty 0%HS 8429.11 · 2023
Breakbulk to Richards Bay and Durban.
Quote to South Africa
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a Liebherr PR 726 for export
- Every module needs a lift drawing and weight; heaviest-piece weight decides the vessel.
- Australia and New Zealand reject machines with soil, seeds or plant material. We pressure-wash, open the belly pans and radiator cores, and book the pre-shipment cleaning inspection.
Liebherr PR 726 shipping questions
Does a Liebherr PR 726 fit in a shipping container?
At 8 ft 2 in (2.5 m) wide, the Liebherr PR 726 is wider than a container door in one piece (7 ft 8 in / 2.34 m), so it ships whole on a 40 ft flat rack (4 in / 0.1 m over width, 4 ft 2 in / 1.26 m over height). RoRo is the alternative where a lane serves your port. It can also be containerized after disassembly (blade off, ripper off, cab or ROPS removed and crated, and track chains and shoes off), across one or more containers; we survey it first and quote both.
How much does a Liebherr PR 726 weigh for shipping?
Liebherr Mining lists the Liebherr PR 726 at 38,900 lb (17,658 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Liebherr PR 726?
18 ft 2 in × 8 ft 2 in × 10 ft 6 in (5.54 × 2.5 × 3.21 m) (length × width × height) in transport position, from Liebherr Mining's published specifications for the Liebherr PR 726.
What has to come off a Liebherr PR 726 to ship it?
To containerize it: blade off, ripper off, cab or ROPS removed and crated, and track chains and shoes off. Our crew does the work, crates and labels every part, and loads the pieces across one or more containers, with documentation for reassembly. Shipped whole on a flat rack or RoRo, it needs little or no disassembly.
Can a Liebherr PR 726 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
