Crawler dozer · Liebherr Mining
Liebherr PR 716: transport dimensions, weight and how it ships overseas
The Liebherr PR 716 fits a 40 ft high-cube container after the partial disassembly our crew does: cab or ROPS removed and crated and exhaust stack and beacons off. We crate and label those parts and lash them in the same container, so it ships at container rates to almost any port.
- Transport length
- 15 ft 11 in / 4.85 m
- Transport width
- 7 ft 8 in / 2.34 m
- Transport height
- 9 ft 11 in / 3.02 m
- Weight
- 29,300 lb / 13,290 kg

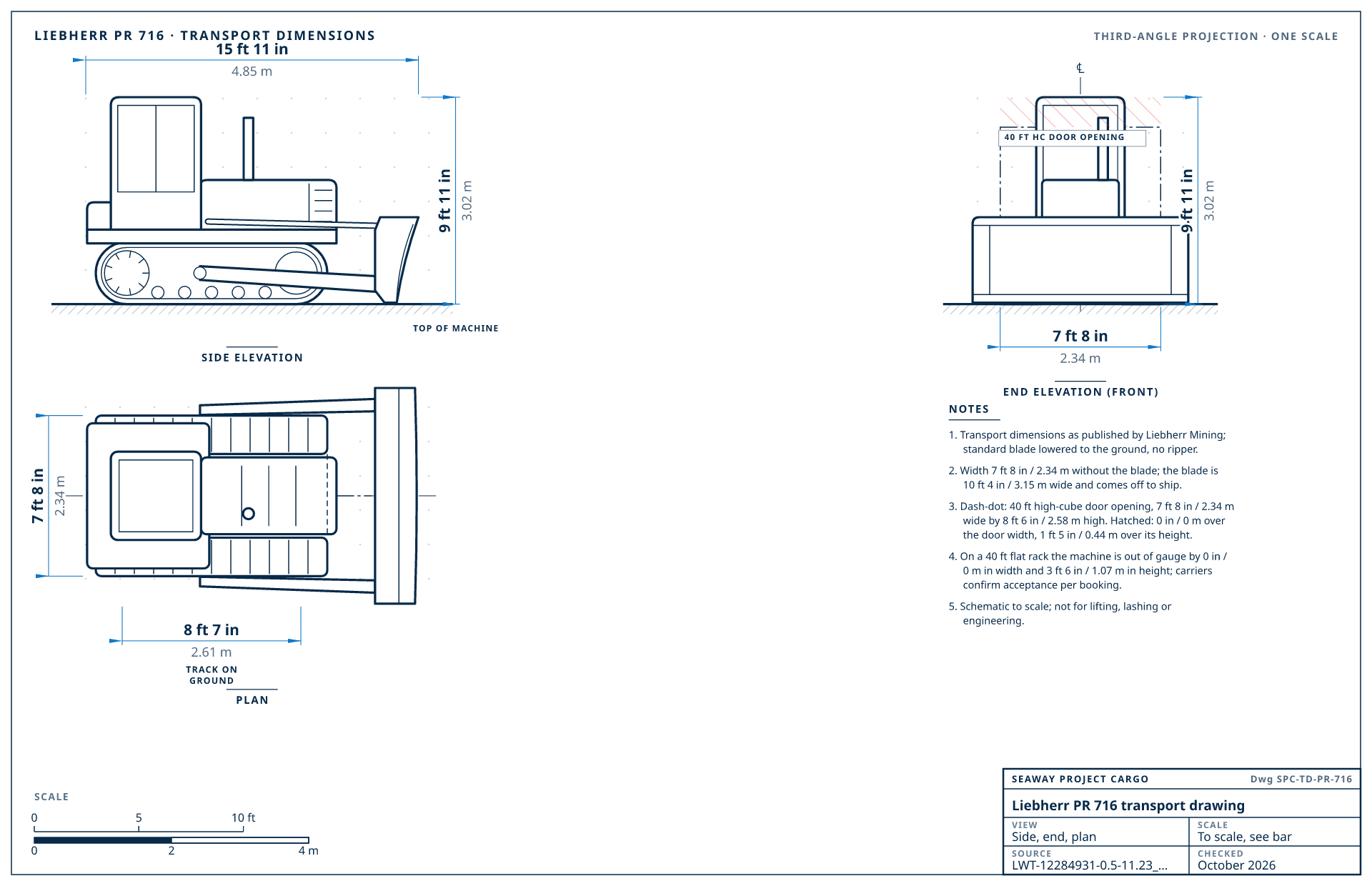

Liebherr PR 716 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Liebherr Mining's published transport dimensions (LWT-12284931-0.5-11.23_enGB, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Liebherr PR 716 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 15 ft 11 in / 4.85 m | blade on the ground, no ripper |
| Length, basic tractor | 12 ft / 3.66 m | without blade, push arms or ripper |
| Transport width | 7 ft 8 in / 2.34 m | over the tracks, 22 in (560 mm) shoes |
| Transport height | 9 ft 11 in / 3.02 m | to the top of the cab or ROPS |
| Weight | 29,300 lb / 13,290 kg | operating weight |
| Track length | 8 ft 7 in / 2.61 m | |
| Track gauge | 5 ft 10 in / 1.78 m | |
| Blade width | 10 ft 4 in / 3.15 m | standard blade; wider than the tracks, comes off to ship |
| Ground clearance | 1 ft 5 in / 0.44 m | |
| Machine type | Crawler dozer | |
| Configuration | 3.8 yd³ (2.92 m³) 6-way blade, 22 in (560 mm) shoes, no ripper. Shipping weight 25,500 lb (11,559 kg). Generation 8. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Liebherr PR 716, best first
Worked out from the dimensions above against container, flat rack and RoRo limits. RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | 40 ft high-cube containerBest fit | Fits after partial disassembly | We handle the disassembly: cab or ROPS removed and crated and exhaust stack and beacons off. How we containerize |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (3 ft 6 in / 1.07 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
Liebherr Mining publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 15 ft 11 in × 7 ft 8 in × 9 ft 11 in (4.85 × 2.34 × 3.02 m)29,300 lb (13,290 kg)
- Best fit
- 40 ft high-cube containerFits after partial disassembly
- 40 ft high-cube door
- Fits after partial disassembly
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Liebherr PR 716 generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| PR 714 | — | No record yet; measured at pickup and quoted both ways |
| PR 716 | 2016 | No record yet; measured at pickup and quoted both ways |
| PR 716 G8current | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable dozers from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Liebherr PR 716 | 15 ft 11 in × 7 ft 8 in × 9 ft 11 in (4.85 × 2.34 × 3.02 m) | 29,300 lb / 13,290 kg | 40 ft high-cube container |
| CAT D4 | 16 ft 10 in × 7 ft 8 in × 9 ft 9 in (5.14 × 2.33 × 2.97 m) | 29,300 lb / 13,272 kg | 1 × 40 ft high cube |
| Komatsu D51EXi-24 | 15 ft 9 in × 7 ft 9 in × 10 ft 5 in (4.8 × 2.35 × 3.18 m) | 30,400 lb / 13,780 kg | 1 × 40 ft high cube |
| Case 1150M | 16 ft 8 in × 7 ft 10 in × 9 ft 8 in (5.09 × 2.39 × 2.96 m) | 31,600 lb / 14,330 kg | 1 × 40 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Liebherr PR 716 go
ChileTransit 21-28 daysImport duty 6%HS 8429.11 · 2023
Copper mines; modules move by breakbulk to Antofagasta and similar ports.
Quote to Chile
AustraliaTransit 28-35 daysImport duty 0%HS 8429.11 · 2023
Iron ore and coal; biosecurity cleaning still applies to every module.
Quote to Australia
South AfricaTransit 22-32 daysImport duty 0%HS 8429.11 · 2023
Breakbulk to Richards Bay and Durban.
Quote to South Africa
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a Liebherr PR 716 for export
- Every module needs a lift drawing and weight; heaviest-piece weight decides the vessel.
- Australia and New Zealand reject machines with soil, seeds or plant material. We pressure-wash, open the belly pans and radiator cores, and book the pre-shipment cleaning inspection.
Liebherr PR 716 shipping questions
Does a Liebherr PR 716 fit in a shipping container?
The Liebherr PR 716 fits a 40 ft high-cube container after the partial disassembly our crew does: cab or ROPS removed and crated and exhaust stack and beacons off. We crate and label those parts and lash them in the same container, so it ships at container rates to almost any port.
How much does a Liebherr PR 716 weigh for shipping?
Liebherr Mining lists the Liebherr PR 716 at 29,300 lb (13,290 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Liebherr PR 716?
15 ft 11 in × 7 ft 8 in × 9 ft 11 in (4.85 × 2.34 × 3.02 m) (length × width × height) in transport position, from Liebherr Mining's published specifications for the Liebherr PR 716.
What has to come off a Liebherr PR 716 to ship it?
For a 40 ft high-cube container: cab or ROPS removed and crated and exhaust stack and beacons off. Our crew does the work, then crates, labels and lashes every part in the same container, with documentation for reassembly.
Can a Liebherr PR 716 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
