Case 1150M: transport dimensions, weight and how it ships overseas
The Case 1150M usually goes in 1 × 40 ft high cube, from our loading records for related models (Case 1150K XLT). Shipped whole, it goes on a 40 ft flat rack (3 ft 4 in / 1.01 m over height), or RoRo where a lane serves your port.
- Transport length
- 16 ft 8 in / 5.09 m
- Transport width
- 7 ft 10 in / 2.39 m
- Transport height
- 9 ft 8 in / 2.96 m
- Weight
- 31,600 lb / 14,330 kg

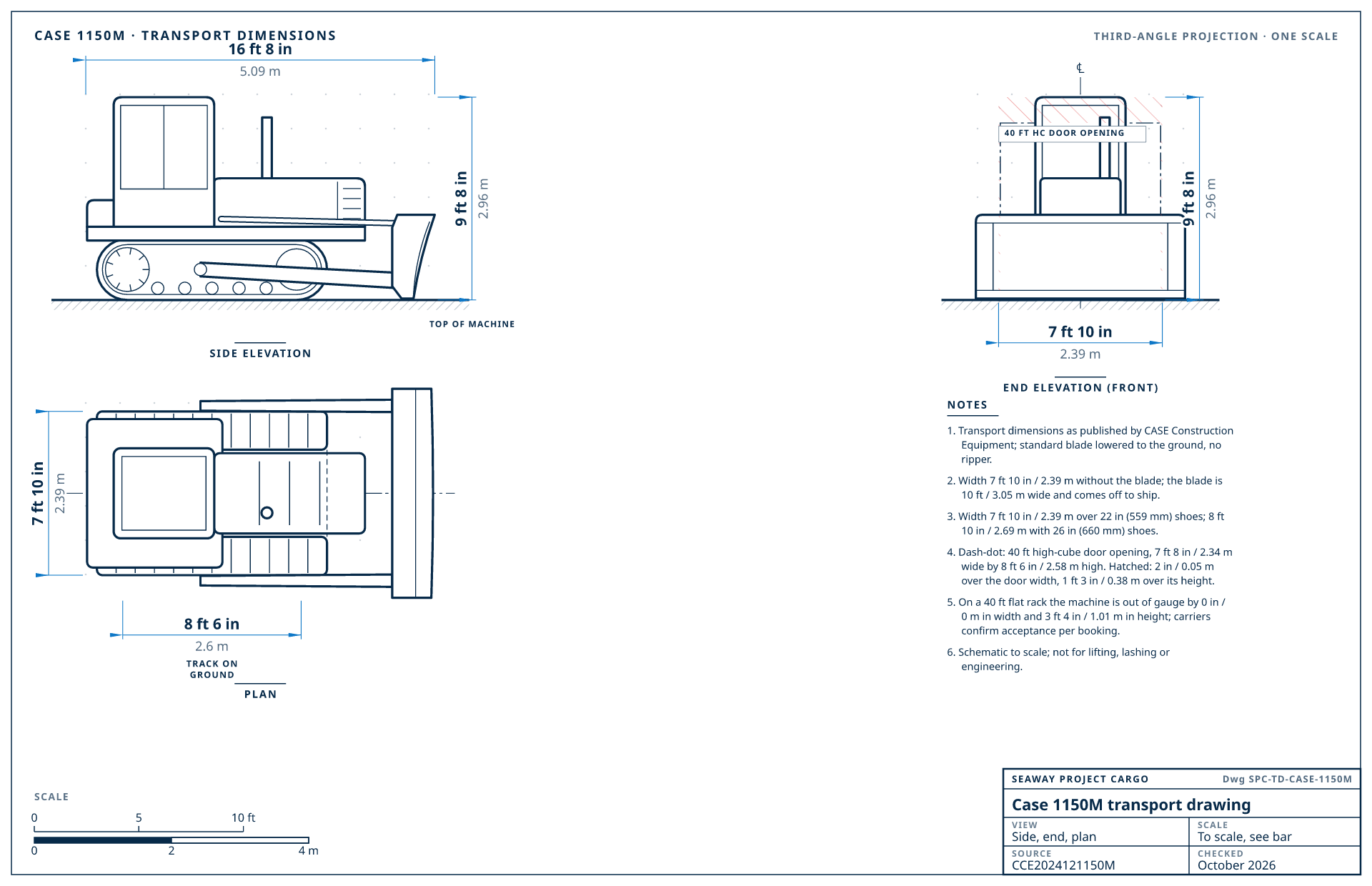

Case 1150M transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from CASE Construction Equipment's published transport dimensions (CCE2024121150M, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Case 1150M transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 16 ft 8 in / 5.09 m | blade on the ground, no ripper |
| Transport width | 7 ft 10 in / 2.39 m | over the tracks, 22 in (559 mm) shoes · 8 ft 10 in / 2.69 m with 26 in (660 mm) shoes |
| Transport height | 9 ft 8 in / 2.96 m | to the top of the cab or ROPS |
| Weight | 31,600 lb / 14,330 kg | operating weight |
| Track length | 8 ft 6 in / 2.6 m | |
| Track gauge | 6 ft / 1.83 m | |
| Blade width | 10 ft / 3.05 m | standard blade; wider than the tracks, comes off to ship |
| Ground clearance | 1 ft 1 in / 0.32 m | |
| Machine type | Crawler dozer | |
| Configuration | 3.8 yd³ (2.88 m³) power angle-tilt (pat) blade, 22 in (559 mm) shoes, no ripper. | |
Manufacturer documents
- Technical specifications (PDF, CCE2024121150M)
- Product brochure (PDF, CCE202509DZ)
- CASE Construction Equipment product page
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Case 1150M, best first
Loaded by Seaway
How we load the Case 1150M
Our loading records list earlier and sister models of the Case 1150M (Case 1150K XLT). The usual plan is 1 × 40 ft high cube.
- 1 × 40 ft high cube
- Before loading: cab or ROPS removed and crated, blade off, track chains and shoes off.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft high cubeBest fit | From our loading records | cab or ROPS removed and crated, blade off, and track chains and shoes off |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (3 ft 4 in / 1.01 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
CASE Construction Equipment publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 16 ft 8 in × 7 ft 10 in × 9 ft 8 in (5.09 × 2.39 × 2.96 m)31,600 lb (14,330 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 3 ft 4 in / 1.01 m over height
- 40 ft high-cube door
- 2 in / 0.05 m over the door width, 1 ft 3 in / 0.38 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Case 1150M generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| 1150E | — | No record yet; measured at pickup and quoted both ways |
| 1150G | — | No record yet; measured at pickup and quoted both ways |
| 1150H | — | No record yet; measured at pickup and quoted both ways |
| 1150K | — | No record yet; measured at pickup and quoted both ways |
| 1150Mcurrent | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable dozers from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Case 1150M | 16 ft 8 in × 7 ft 10 in × 9 ft 8 in (5.09 × 2.39 × 2.96 m) | 31,600 lb / 14,330 kg | 1 × 40 ft high cube |
| Komatsu D51EXi-24 | 15 ft 9 in × 7 ft 9 in × 10 ft 5 in (4.8 × 2.35 × 3.18 m) | 30,400 lb / 13,780 kg | 1 × 40 ft high cube |
| Liebherr PR 716 | 15 ft 11 in × 7 ft 8 in × 9 ft 11 in (4.85 × 2.34 × 3.02 m) | 29,300 lb / 13,290 kg | 40 ft high-cube container |
| CAT D4 | 16 ft 10 in × 7 ft 8 in × 9 ft 9 in (5.14 × 2.33 × 2.97 m) | 29,300 lb / 13,272 kg | 1 × 40 ft high cube |
| John Deere 750 P-Tier | 17 ft 7 in × 8 ft × 10 ft 8 in (5.36 × 2.44 × 3.25 m) | 37,600 lb / 17,041 kg | 40 ft flat rack |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Case 1150M go
MexicoTransit 5-14 daysImport duty 0%HS 8429.11 · 2023
Backhoes and loaders by truck across the border or in containers to Manzanillo.
Quote to Mexico
GhanaTransit 20-28 daysImport duty 5%HS 8429.11 · 2023
Backhoes and dozers for roadwork, in high cubes to Tema.
Quote to Ghana
AustraliaTransit 28-35 daysImport duty 0%HS 8429.11 · 2023
Strict biosecurity cleaning; dirty undercarriages are re-cleaned at the importer's cost.
Quote to Australia
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a Case 1150M for export
- Some CASE CX excavators share Sumitomo parts; we photograph the serial plate so parts can be cross-referenced.
- Backhoe stabilizers and the swing are locked, and the loader bucket travels in the same box.
Case 1150M shipping questions
Does a Case 1150M fit in a shipping container?
Not in one piece: at 7 ft 10 in (2.39 m) wide it is wider than a 40 ft high-cube door (7 ft 8 in / 2.34 m). Taken apart, it goes in 1 × 40 ft high cube, the plan from our loading records.
How much does a Case 1150M weigh for shipping?
CASE Construction Equipment lists the Case 1150M at 31,600 lb (14,330 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Case 1150M?
16 ft 8 in × 7 ft 10 in × 9 ft 8 in (5.09 × 2.39 × 2.96 m) (length × width × height) in transport position, from CASE Construction Equipment's published specifications for the Case 1150M.
What has to come off a Case 1150M to ship it?
For 1 × 40 ft high cube: cab or ROPS removed and crated, blade off, and track chains and shoes off. Our crew does the work, crates and labels the loose parts and documents everything for reassembly.
Can a Case 1150M ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
