Case 2050M: transport dimensions, weight and how it ships overseas
At 8 ft 3 in (2.52 m) wide, the Case 2050M is wider than a container door in one piece (7 ft 8 in / 2.34 m), so it ships whole on a 40 ft flat rack (5 in / 0.12 m over width, 3 ft 11 in / 1.2 m over height). RoRo is the alternative where a lane serves your port.
- Transport length
- 19 ft 4 in / 5.9 m
- Transport width
- 8 ft 3 in / 2.52 m
- Transport height
- 10 ft 4 in / 3.15 m
- Weight
- 45,600 lb / 20,703 kg

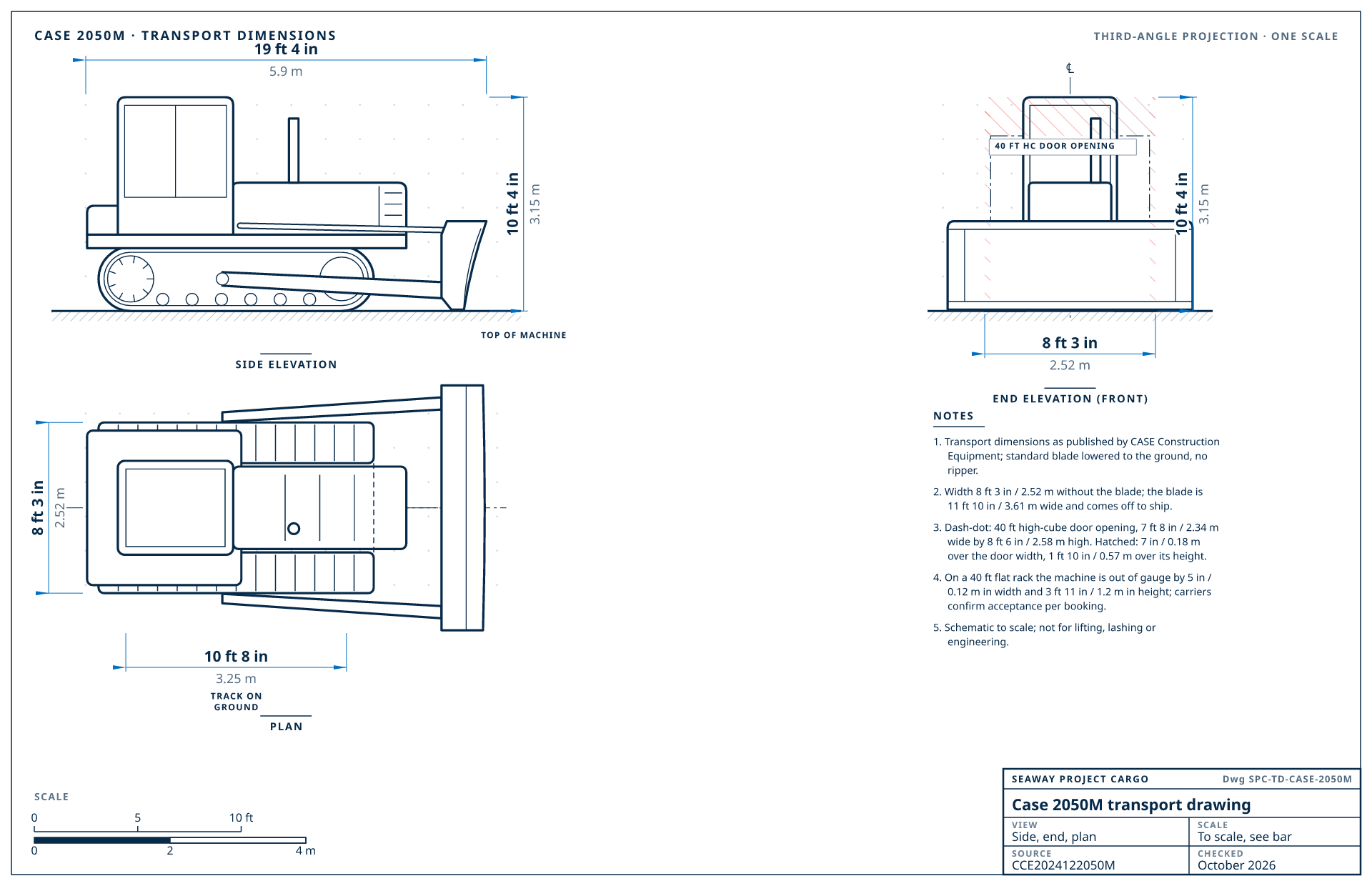

Case 2050M transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from CASE Construction Equipment's published transport dimensions (CCE2024122050M, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Case 2050M transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 19 ft 4 in / 5.9 m | blade on the ground, no ripper |
| Transport width | 8 ft 3 in / 2.52 m | over the tracks, 24 in (600 mm) shoes |
| Transport height | 10 ft 4 in / 3.15 m | to the top of the cab or ROPS |
| Weight | 45,600 lb / 20,703 kg | operating weight |
| Track length | 10 ft 8 in / 3.25 m | |
| Track gauge | 6 ft 4 in / 1.94 m | |
| Blade width | 11 ft 10 in / 3.61 m | standard blade; wider than the tracks, comes off to ship |
| Ground clearance | 1 ft 4 in / 0.41 m | |
| Machine type | Crawler dozer | |
| Configuration | Power angle-tilt (pat) blade, 24 in (600 mm) shoes, no ripper. | |
Manufacturer documents
- Technical specifications (PDF, CCE2024122050M)
- Product brochure (PDF, CCE202509DZ)
- CASE Construction Equipment product page
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Case 2050M, best first
Worked out from the dimensions above against container, flat rack and RoRo limits. RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | 40 ft flat rackBest fit | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (5 in / 0.12 m over width, 3 ft 11 in / 1.2 m over height). |
| 2 | 40 ft high-cube container | After disassembly, across containers | Taken apart and loaded across one or more 40 ft containers, with open-tops for tall pieces: blade off, ripper off, cab or ROPS removed and crated, and track chains and shoes off. We survey the machine first and quote this next to shipping it whole. How we containerize |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
CASE Construction Equipment publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 19 ft 4 in × 8 ft 3 in × 10 ft 4 in (5.9 × 2.52 × 3.15 m)45,600 lb (20,703 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 5 in / 0.12 m over width, 3 ft 11 in / 1.2 m over height
- 40 ft high-cube door
- 7 in / 0.18 m over the door width, 1 ft 10 in / 0.57 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Case 2050M generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| 2050Mcurrent | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable dozers from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Case 2050M | 19 ft 4 in × 8 ft 3 in × 10 ft 4 in (5.9 × 2.52 × 3.15 m) | 45,600 lb / 20,703 kg | 40 ft flat rack |
| Komatsu D65EX-18 | 18 ft × 8 ft 2 in × 10 ft 4 in (5.49 × 2.49 × 3.16 m) | 46,900 lb / 21,270 kg | 1 × 40 ft high cube |
| Liebherr PR 736 | 19 ft 7 in × 8 ft 11 in × 10 ft 8 in (5.97 × 2.72 × 3.25 m) | 47,000 lb / 21,306 kg | 40 ft flat rack |
| John Deere 850 P-Tier | 18 ft 9 in × 9 ft × 11 ft (5.73 × 2.74 × 3.34 m) | 48,800 lb / 22,126 kg | 40 ft flat rack |
| CAT D6 | 17 ft 10 in × 8 ft 10 in × 10 ft 6 in (5.44 × 2.69 × 3.19 m) | 48,800 lb / 22,130 kg | 1 × 40 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Case 2050M go
MexicoTransit 5-14 daysImport duty 0%HS 8429.11 · 2023
Backhoes and loaders by truck across the border or in containers to Manzanillo.
Quote to Mexico
GhanaTransit 20-28 daysImport duty 5%HS 8429.11 · 2023
Backhoes and dozers for roadwork, in high cubes to Tema.
Quote to Ghana
AustraliaTransit 28-35 daysImport duty 0%HS 8429.11 · 2023
Strict biosecurity cleaning; dirty undercarriages are re-cleaned at the importer's cost.
Quote to Australia
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a Case 2050M for export
- Some CASE CX excavators share Sumitomo parts; we photograph the serial plate so parts can be cross-referenced.
- Backhoe stabilizers and the swing are locked, and the loader bucket travels in the same box.
Case 2050M shipping questions
Does a Case 2050M fit in a shipping container?
At 8 ft 3 in (2.52 m) wide, the Case 2050M is wider than a container door in one piece (7 ft 8 in / 2.34 m), so it ships whole on a 40 ft flat rack (5 in / 0.12 m over width, 3 ft 11 in / 1.2 m over height). RoRo is the alternative where a lane serves your port. It can also be containerized after disassembly (blade off, ripper off, cab or ROPS removed and crated, and track chains and shoes off), across one or more containers; we survey it first and quote both.
How much does a Case 2050M weigh for shipping?
CASE Construction Equipment lists the Case 2050M at 45,600 lb (20,703 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Case 2050M?
19 ft 4 in × 8 ft 3 in × 10 ft 4 in (5.9 × 2.52 × 3.15 m) (length × width × height) in transport position, from CASE Construction Equipment's published specifications for the Case 2050M.
What has to come off a Case 2050M to ship it?
To containerize it: blade off, ripper off, cab or ROPS removed and crated, and track chains and shoes off. Our crew does the work, crates and labels every part, and loads the pieces across one or more containers, with documentation for reassembly. Shipped whole on a flat rack or RoRo, it needs little or no disassembly.
Can a Case 2050M ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
