Case 865B: transport dimensions, weight and how it ships overseas

The Case 865B fits a 40 ft high-cube container after the partial disassembly our crew does: cab or ROPS removed and crated, moldboard off, and wheels off. We crate and label those parts and lash them in the same container, so it ships at container rates to almost any port.

Transport length: 29 ft 5 in / 8.96 m
Transport width: 8 ft 9 in / 2.66 m
Transport height: 11 ft 2 in / 3.4 m
Weight: 37,300 lb / 16,936 kg

Quote my Case 865B Call Specialist

Case 865B transport drawing

Scroll sideways to read the drawing, or turn your phone.

Download the Case 865B drawing (PNG)

1920 × 1240 px. Free to use with a link to this page.

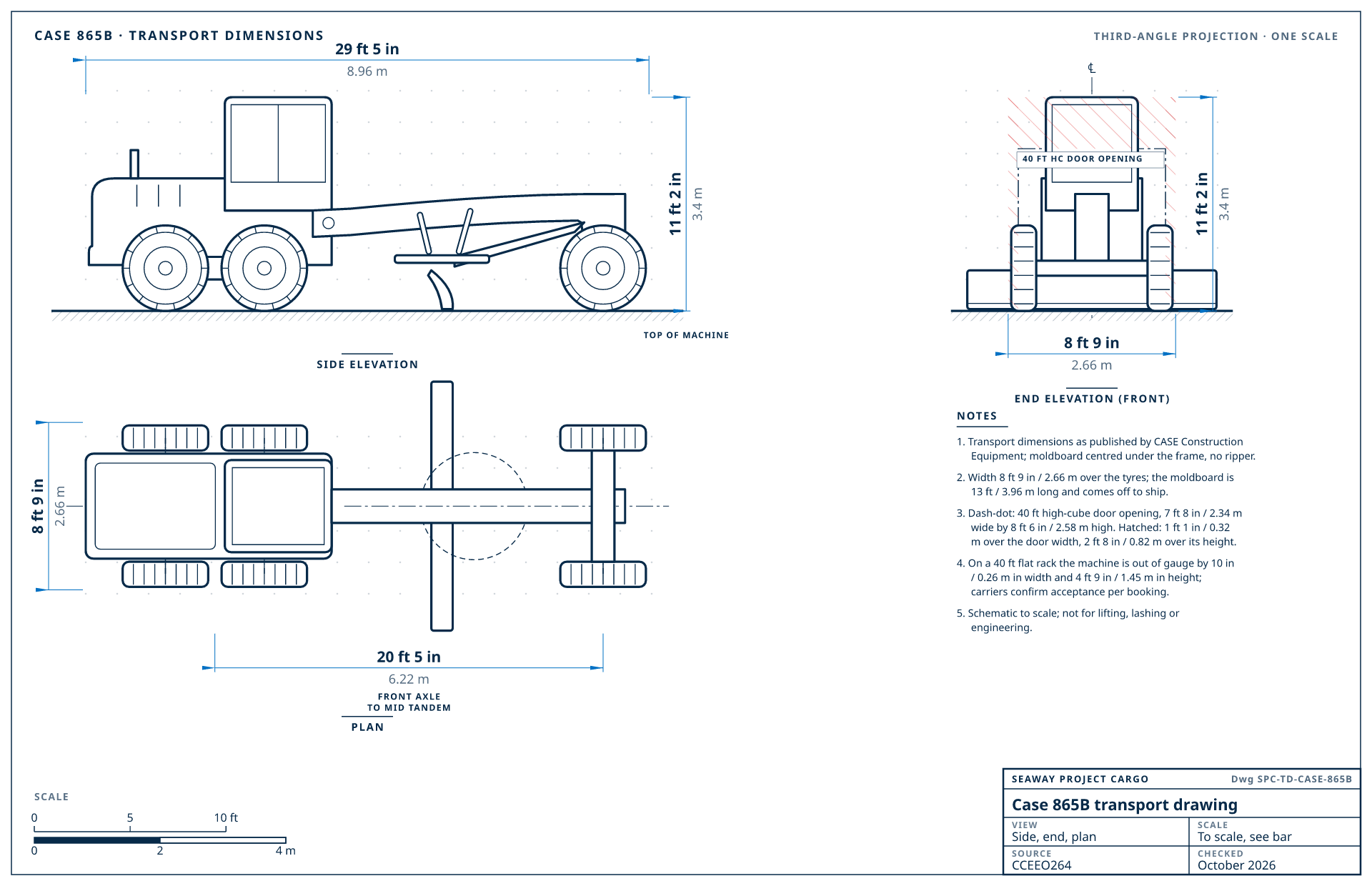

Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from CASE Construction Equipment's published transport dimensions (CCEEO264, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.

Case 865B transport specifications

Specification	Value	Basis
Transport length	29 ft 5 in / 8.96 m	moldboard centred under the frame, no ripper
Transport width	8 ft 9 in / 2.66 m	over the tyres
Transport height	11 ft 2 in / 3.4 m	to the top of the cab or ROPS
Weight	37,300 lb / 16,936 kg	operating weight
Moldboard length	13 ft / 3.96 m	standard moldboard; comes off its circle to ship
Wheelbase	20 ft 5 in / 6.22 m	front axle to the middle of the tandem
Tandem axle spacing	5 ft 2 in / 1.57 m	rear tandem axle centre to centre
Front axle to moldboard	8 ft 5 in / 2.56 m
Tread	7 ft 1 in / 2.17 m	tyre centre to tyre centre
Ground clearance	1 ft 3 in / 0.38 m
Machine type	Motor grader
Configuration	13 ft (3.96 m) moldboard, 17.5 x 25 tyres. Weight includes the ripper and front counterweight. Height to the high cab; 10 ft 6 in (3.20 m) with the low-profile cab.

Manufacturer documents

Links and figures checked October 2026. Linked from the manufacturer; we do not host them.

Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.

Every way to ship a Case 865B, best first

Worked out from the dimensions above against container, flat rack and RoRo limits. RoRo depends on a regular sailing to your port.

#	Best method	Fit	Preparation
1	40 ft high-cube containerBest fit	Fits after partial disassembly	We handle the disassembly: cab or ROPS removed and crated, moldboard off, and wheels off. How we containerize
2	40 ft flat rack	Out-of-gauge	Ships assembled, blocked and lashed; out-of-gauge surcharge applies (10 in / 0.26 m over width, 4 ft 9 in / 1.45 m over height).
3	RoRo	Where a RoRo lane serves the destination	Drives on assembled where a RoRo lane serves the destination.
4	Breakbulk	Fits as is	Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port.
