Case 1650M: transport dimensions, weight and how it ships overseas
At 8 ft 4 in (2.53 m) wide, the Case 1650M is wider than a container door in one piece (7 ft 8 in / 2.34 m), so it ships whole on a 40 ft flat rack (5 in / 0.13 m over width, 3 ft 3 in / 0.99 m over height). RoRo is the alternative where a lane serves your port.
- Transport length
- 18 ft 8 in / 5.68 m
- Transport width
- 8 ft 4 in / 2.53 m
- Transport height
- 9 ft 8 in / 2.95 m
- Weight
- 38,200 lb / 17,347 kg

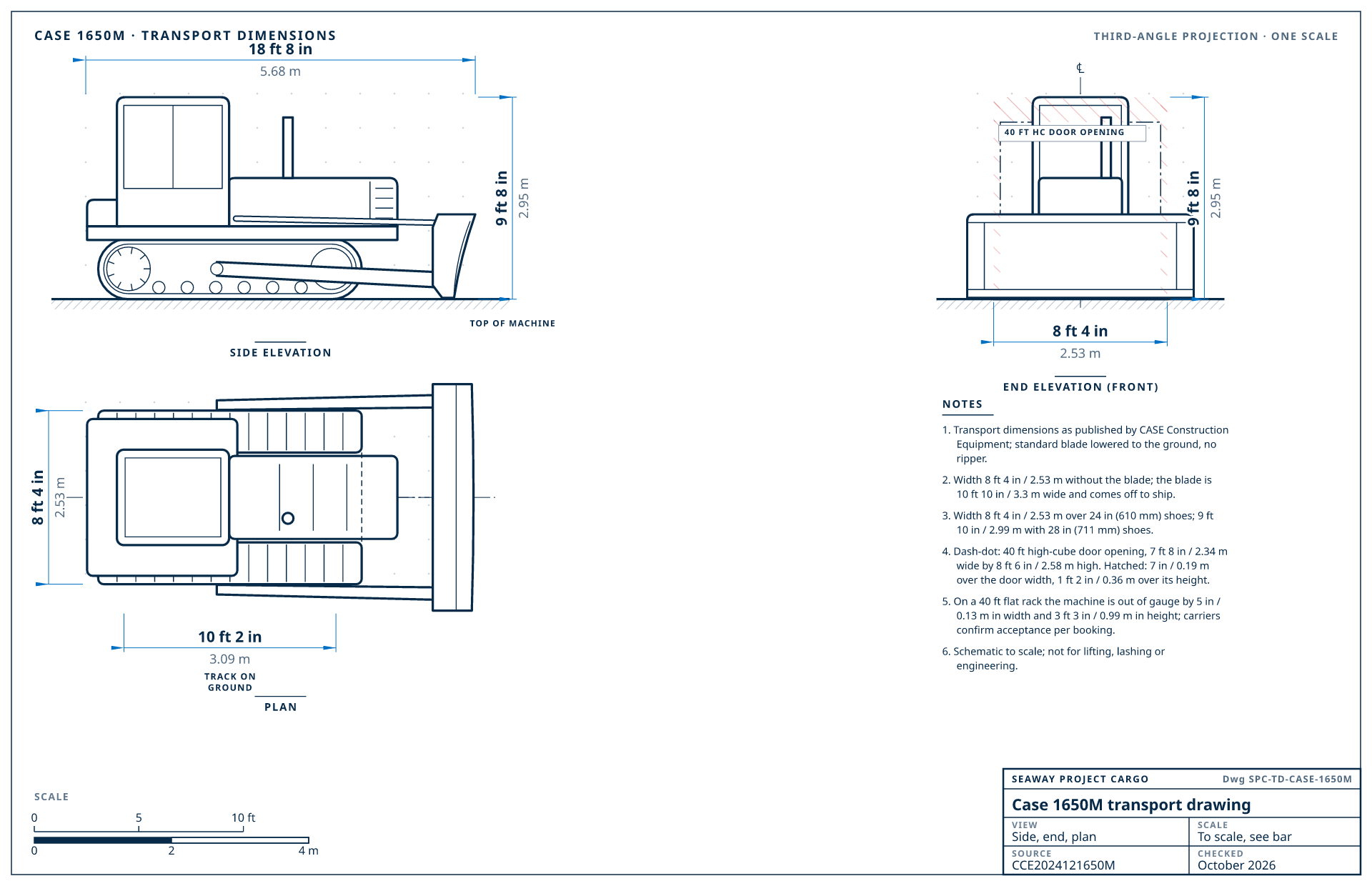

Case 1650M transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from CASE Construction Equipment's published transport dimensions (CCE2024121650M, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Case 1650M transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 18 ft 8 in / 5.68 m | blade on the ground, no ripper |
| Transport width | 8 ft 4 in / 2.53 m | over the tracks, 24 in (610 mm) shoes · 9 ft 10 in / 2.99 m with 28 in (711 mm) shoes |
| Transport height | 9 ft 8 in / 2.95 m | to the top of the cab or ROPS |
| Weight | 38,200 lb / 17,347 kg | operating weight |
| Track length | 10 ft 2 in / 3.09 m | |
| Track gauge | 6 ft 4 in / 1.93 m | |
| Blade width | 10 ft 10 in / 3.3 m | standard blade; wider than the tracks, comes off to ship |
| Ground clearance | 1 ft 1 in / 0.34 m | |
| Machine type | Crawler dozer | |
| Configuration | Power angle-tilt (pat) blade, 24 in (610 mm) shoes, no ripper. | |
Manufacturer documents
- Technical specifications (PDF, CCE2024121650M)
- Product brochure (PDF, CCE202509DZ)
- CASE Construction Equipment product page
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Case 1650M, best first
Worked out from the dimensions above against container, flat rack and RoRo limits. RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | 40 ft flat rackBest fit | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (5 in / 0.13 m over width, 3 ft 3 in / 0.99 m over height). |
| 2 | 40 ft high-cube container | After disassembly, across containers | Taken apart and loaded across one or more 40 ft containers, with open-tops for tall pieces: blade off, ripper off, cab or ROPS removed and crated, and track chains and shoes off. We survey the machine first and quote this next to shipping it whole. How we containerize |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
CASE Construction Equipment publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 18 ft 8 in × 8 ft 4 in × 9 ft 8 in (5.68 × 2.53 × 2.95 m)38,200 lb (17,347 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 5 in / 0.13 m over width, 3 ft 3 in / 0.99 m over height
- 40 ft high-cube door
- 7 in / 0.19 m over the door width, 1 ft 2 in / 0.36 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Case 1650M generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| 1650K | — | No record yet; measured at pickup and quoted both ways |
| 1650Mcurrent | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
