Case 836D: transport dimensions, weight and how it ships overseas

The Case 836D fits a 40 ft high-cube container after the partial disassembly our crew does: cab or ROPS removed and crated. We crate and label those parts and lash them in the same container, so it ships at container rates to almost any port.

Transport length: 27 ft 6 in / 8.37 m
Transport width: 7 ft 8 in / 2.33 m
Transport height: 10 ft / 3.06 m
Weight: 26,500 lb / 12,018 kg

Quote my Case 836D Call Specialist

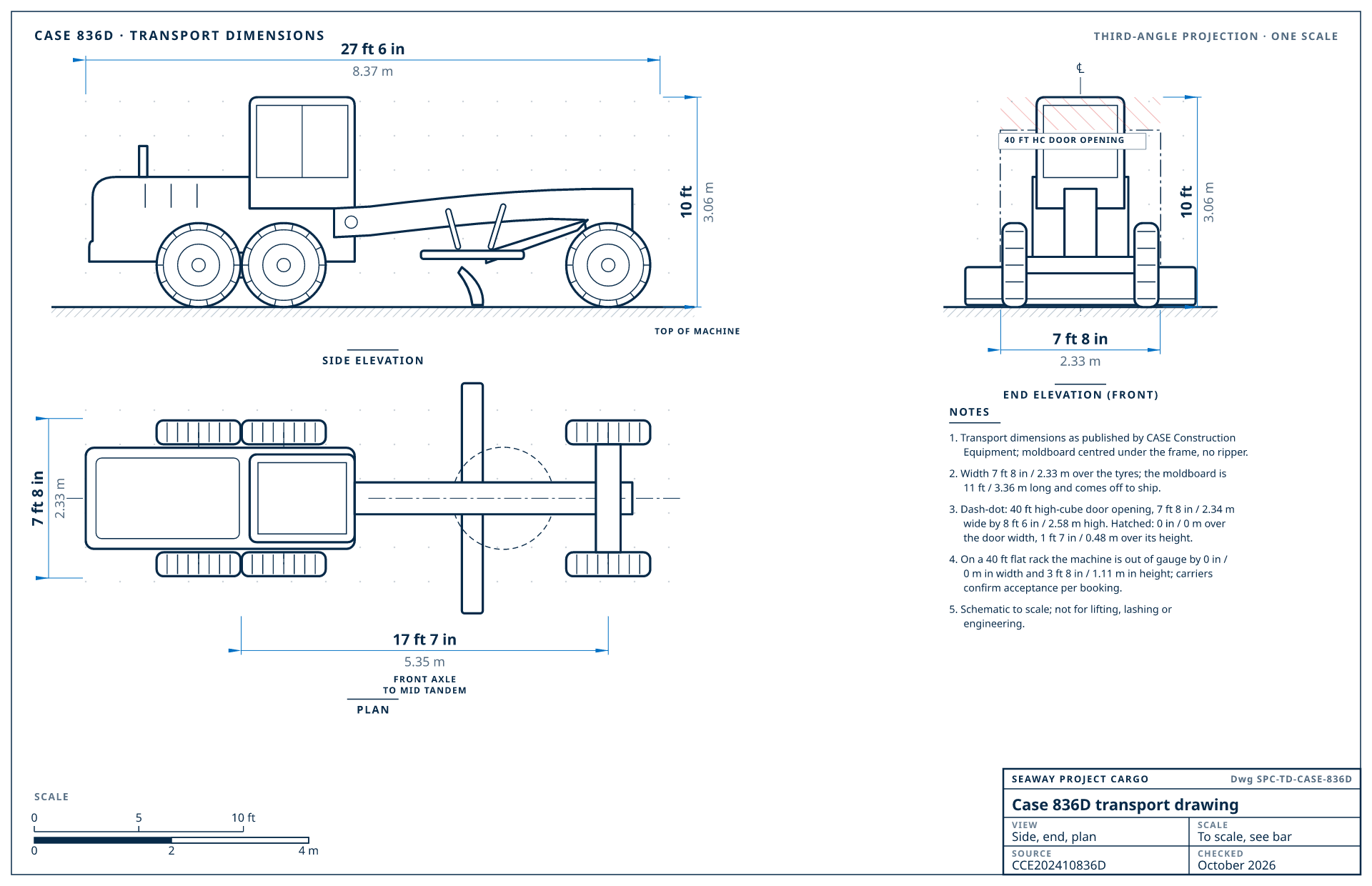

Case 836D transport drawing

Scroll sideways to read the drawing, or turn your phone.

Download the Case 836D drawing (PNG)

1920 × 1240 px. Free to use with a link to this page.

Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from CASE Construction Equipment's published transport dimensions (CCE202410836D, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.

Case 836D transport specifications

Specification	Value	Basis
Transport length	27 ft 6 in / 8.37 m	moldboard centred under the frame, no ripper
Transport width	7 ft 8 in / 2.33 m	over the tyres
Transport height	10 ft / 3.06 m	to the top of the cab or ROPS
Weight	26,500 lb / 12,018 kg	operating weight
Moldboard length	11 ft / 3.36 m	standard moldboard; comes off its circle to ship
Wheelbase	17 ft 7 in / 5.35 m	front axle to the middle of the tandem
Tandem axle spacing	4 ft 1 in / 1.24 m	rear tandem axle centre to centre
Front axle to moldboard	6 ft 6 in / 1.98 m
Tread	6 ft 4 in / 1.92 m	tyre centre to tyre centre
Ground clearance	1 ft / 0.31 m
Machine type	Motor grader
Configuration	11 ft (3.35 m) moldboard, 405/70 R20 tyres. Weight includes the front counterweight and 5-tooth ripper; the length is without them.

Manufacturer documents

Links and figures checked October 2026. Linked from the manufacturer; we do not host them.

Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.

Every way to ship a Case 836D, best first

Worked out from the dimensions above against container, flat rack and RoRo limits. RoRo depends on a regular sailing to your port.

#	Best method	Fit	Preparation
1	40 ft high-cube containerBest fit	Fits after partial disassembly	We handle the disassembly: cab or ROPS removed and crated. How we containerize
2	40 ft flat rack	Out-of-gauge	Ships assembled, blocked and lashed; out-of-gauge surcharge applies (3 ft 8 in / 1.11 m over height).
3	RoRo	Where a RoRo lane serves the destination	Drives on assembled where a RoRo lane serves the destination.
4	Breakbulk	Fits as is	Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port.

See how we containerize heavy equipment

Will it fit? Published configurations

CASE Construction Equipment publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.

Transport envelope: 27 ft 6 in × 7 ft 8 in × 10 ft (8.37 × 2.33 × 3.06 m)26,500 lb (12,018 kg)
Best fit: 40 ft high-cube containerFits after partial disassembly
40 ft high-cube door: Fits after partial disassembly

Quote this configuration

Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.

Case 836D generations and how each has shipped

Generation	Years (approx.)	How Seaway has loaded it
836C	—	No record yet; measured at pickup and quoted both ways
836Dcurrent	—	No record yet; measured at pickup and quoted both ways

Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.

Where machines like the Case 836D go

MexicoTransit 5-14 days
Import duty 15%HS 8429.20 · 2023
Backhoes and loaders by truck across the border or in containers to Manzanillo.
Quote to Mexico
GhanaTransit 20-28 days
Import duty 5%HS 8429.20 · 2023
Backhoes and dozers for roadwork, in high cubes to Tema.
Quote to Ghana
AustraliaTransit 28-35 days
Import duty 5%HS 8429.20 · 2023
Strict biosecurity cleaning; dirty undercarriages are re-cleaned at the importer's cost.
Quote to Australia

Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff

Preparing a Case 836D for export

Some CASE CX excavators share Sumitomo parts; we photograph the serial plate so parts can be cross-referenced.
Backhoe stabilizers and the swing are locked, and the loader bucket travels in the same box.

Case 836D shipping questions

Does a Case 836D fit in a shipping container?

How much does a Case 836D weigh for shipping?

CASE Construction Equipment lists the Case 836D at 26,500 lb (12,018 kg) (operating weight); the bill of lading uses your machine's own weight.

What are the shipping dimensions of a Case 836D?

27 ft 6 in × 7 ft 8 in × 10 ft (8.37 × 2.33 × 3.06 m) (length × width × height) in transport position, from CASE Construction Equipment's published specifications for the Case 836D.

What has to come off a Case 836D to ship it?

For a 40 ft high-cube container: cab or ROPS removed and crated. Our crew does the work, then crates, labels and lashes every part in the same container, with documentation for reassembly.

Can a Case 836D ship RoRo?

Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
