Case 836C: transport dimensions, weight and how it ships overseas
The Case 836C fits a 40 ft high-cube container after the partial disassembly our crew does: cab or ROPS removed and crated. We crate and label those parts and lash them in the same container, so it ships at container rates to almost any port.
- Transport length
- 27 ft 6 in / 8.37 m
- Transport width
- 7 ft 8 in / 2.33 m
- Transport height
- 10 ft / 3.06 m
- Weight
- 26,500 lb / 12,005 kg
Case 836C transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.

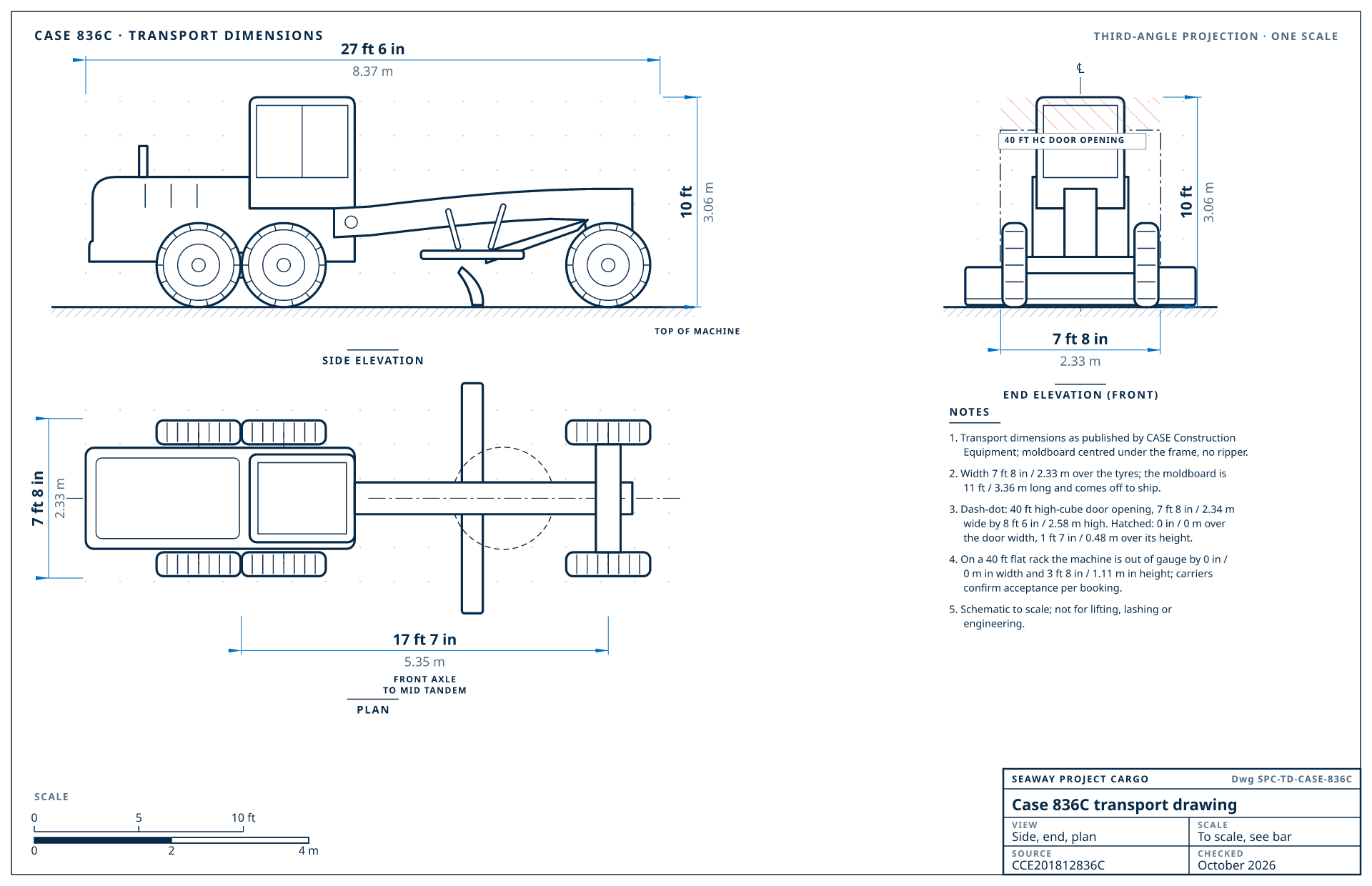

Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from CASE Construction Equipment's published transport dimensions (CCE201812836C, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Case 836C transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 27 ft 6 in / 8.37 m | moldboard centred under the frame, no ripper |
| Transport width | 7 ft 8 in / 2.33 m | over the tyres |
| Transport height | 10 ft / 3.06 m | to the top of the cab or ROPS |
| Weight | 26,500 lb / 12,005 kg | operating weight |
| Moldboard length | 11 ft / 3.36 m | standard moldboard; comes off its circle to ship |
| Wheelbase | 17 ft 7 in / 5.35 m | front axle to the middle of the tandem |
| Tandem axle spacing | 4 ft 1 in / 1.24 m | rear tandem axle centre to centre |
| Front axle to moldboard | 6 ft 6 in / 1.98 m | |
| Tread | 6 ft 4 in / 1.92 m | tyre centre to tyre centre |
| Ground clearance | 1 ft / 0.31 m | |
| Machine type | Motor grader | |
| Configuration | 11 ft (3.35 m) moldboard, 405/70 R20 tyres. Weight includes the front counterweight and 5-tooth ripper; the length is without them. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Case 836C, best first
Worked out from the dimensions above against container, flat rack and RoRo limits. RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | 40 ft high-cube containerBest fit | Fits after partial disassembly | We handle the disassembly: cab or ROPS removed and crated. How we containerize |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (3 ft 8 in / 1.11 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
CASE Construction Equipment publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 27 ft 6 in × 7 ft 8 in × 10 ft (8.37 × 2.33 × 3.06 m)26,500 lb (12,005 kg)
- Best fit
- 40 ft high-cube containerFits after partial disassembly
- 40 ft high-cube door
- Fits after partial disassembly
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Case 836C generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| 836C | — | No record yet; measured at pickup and quoted both ways |
| 836Dcurrent | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
