Komatsu WA700-3: transport dimensions, weight and how it ships overseas
The Komatsu WA700-3 usually goes in 1 × 40 ft open top + 3 × 40 ft high cube, from our loading records for related models (Komatsu WA 700-3L, Komatsu WA700-1, Komatsu WA700-3 High Lift). Shipped whole, it goes RoRo where a lane serves your port.
- Transport length
- 40 ft 11 in / 12.48 m
- Transport width
- 13 ft 9 in / 4.18 m
- Transport height
- 15 ft 10 in / 4.84 m
- Weight
- 79 US tons / 72,080 kg

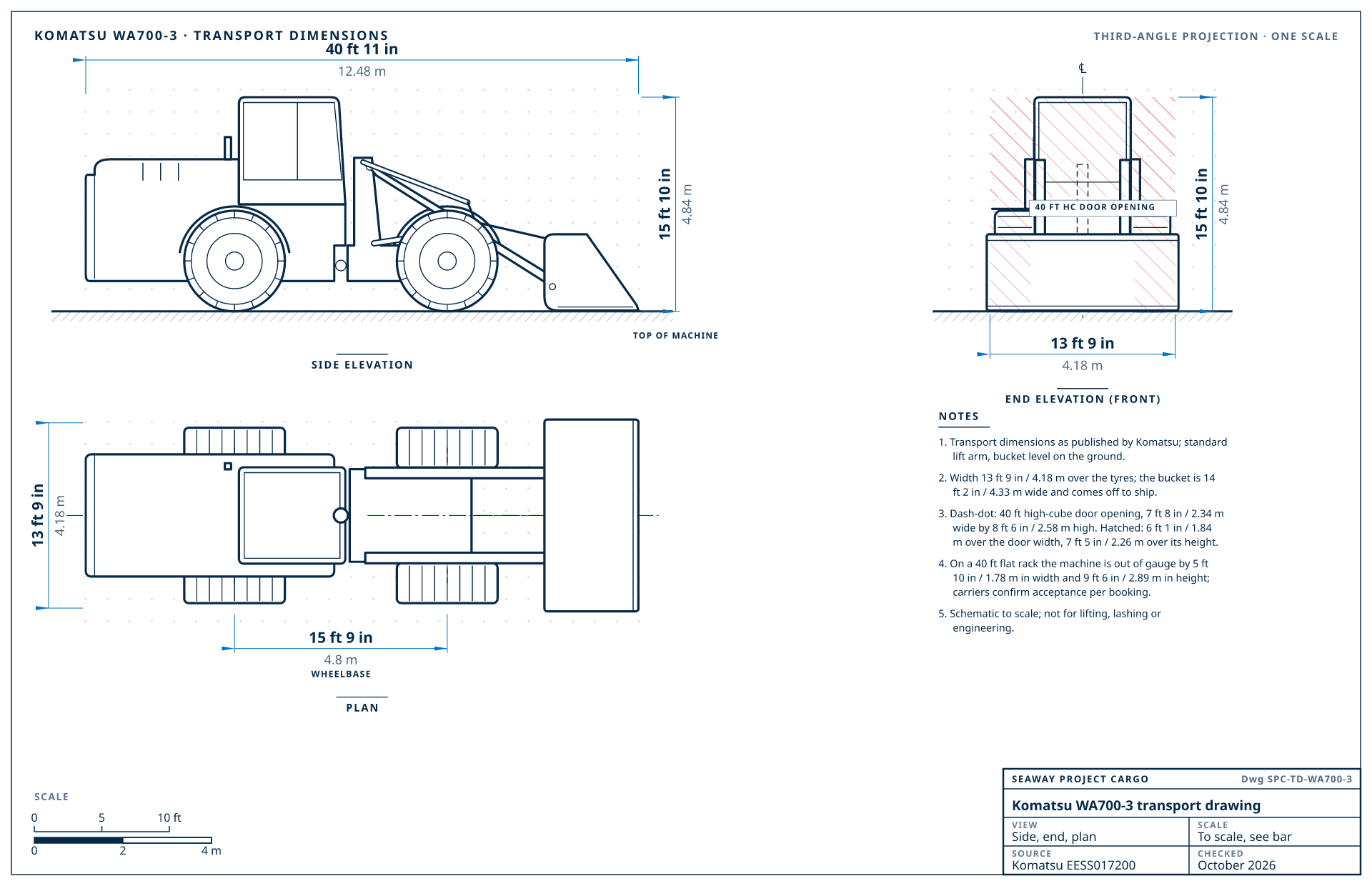

Komatsu WA700-3 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Komatsu's published transport dimensions (EESS017200, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Komatsu WA700-3 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 40 ft 11 in / 12.48 m | bucket level on the ground |
| Transport width | 13 ft 9 in / 4.18 m | over the tyres |
| Transport height | 15 ft 10 in / 4.84 m | to the top of the cab or ROPS |
| Weight | 79 US tons / 72,080 kg | operating weight |
| Bucket width | 14 ft 2 in / 4.33 m | standard bucket; comes off to ship |
| Wheelbase | 15 ft 9 in / 4.8 m | |
| Tread | 10 ft / 3.06 m | tyre centre to tyre centre |
| Ground clearance | 1 ft 11 in / 0.59 m | |
| Machine type | Wheel loader | |
| Configuration | 11.4 yd³ (8.7 m³) spade-nose excavating bucket, standard lift arm, 45/65R39 tyres. The bucket (14 ft 2 in / 4.33 m) is wider than the tyres and comes off to ship. Weight includes the optional counterweight. From the last Komatsu Europe brochure for the WA700; Komatsu now sells the WA800-8 and WA900-8 above it. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Komatsu WA700-3, best first
Loaded by Seaway
How we load the Komatsu WA700-3
Our loading records list earlier and sister models of the Komatsu WA700-3 (Komatsu WA 700-3L, Komatsu WA700-1, Komatsu WA700-3 High Lift). The usual plan is 1 × 40 ft open top + 3 × 40 ft high cube.
- 1 × 40 ft open top + 3 × 40 ft high cubeOr: 4 × 40 ft high cube
- Taken apart at the yard: the base machine in the first box, the parts that come off crated and lashed in the second.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft open top + 3 × 40 ft high cubeBest fit | From our loading records | Taken apart at the yard and loaded as in the plan above |
| 2 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 3 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
Komatsu publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 40 ft 11 in × 13 ft 9 in × 15 ft 10 in (12.48 × 4.18 × 4.84 m)79 US tons (72,080 kg)
- Best fit
- RoRoWhere a RoRo lane serves the destination
- 40 ft high-cube door
- 6 ft 1 in / 1.84 m over the door width, 7 ft 5 in / 2.26 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Komatsu WA700-3 generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| WA700-1 | — | 1 × 40 ft open top + 3 × 40 ft high cube1 machine on record: Komatsu WA700-1 |
| WA700-3current | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable wheel loaders from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Komatsu WA700-3 | 40 ft 11 in × 13 ft 9 in × 15 ft 10 in (12.48 × 4.18 × 4.84 m) | 79 US tons / 72,080 kg | 1 × 40 ft open top + 3 × 40 ft high cube |
| Kawasaki 135ZV-2 | 42 ft 8 in × 13 ft 8 in × 16 ft 3 in (13 × 4.16 × 4.95 m) | 91 US tons / 82,500 kg | 2 × 40 ft open top + 3 × 40 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Komatsu WA700-3 go
AustraliaTransit 28-35 daysImport duty 0–5%HS 8429.51 · 2023
Biosecurity cleaning is inspected on arrival; we clean before loading.
Quote to Australia
GhanaTransit 20-28 daysImport duty 5%HS 8429.51 · 2023
Customs declarations go through Ghana's ICUMS system.
Quote to Ghana
United Arab EmiratesTransit 20-28 daysImport duty 5%HS 8429.51 · 2023
Jebel Ali is a common re-export hub for the Gulf and East Africa.
Quote to United Arab Emirates
PhilippinesTransit 18-28 daysImport duty 0%HS 8429.51 · 2023
Usually shipped from the West Coast on flat racks.
Quote to Philippines
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a Komatsu WA700-3 for export
- Tier 4 Final and Stage V engines need ultra-low-sulfur diesel (15 ppm or less) and DEF. Where only high-sulfur diesel is sold, the after-treatment clogs, so check fuel quality or source a lower-tier export machine.
- Telematics (such as Cat Product Link, Komtrax or JDLink) may stop working abroad; the dealer can transfer or end the subscription before export.
- HD785 and larger rigid trucks ship with the dump body off; RoRo works where a lane exists, otherwise breakbulk.
Komatsu WA700-3 shipping questions
Does a Komatsu WA700-3 fit in a shipping container?
Not in one piece: at 79 US tons (72,080 kg) it is heavier than one container carries. Taken apart, it goes in 1 × 40 ft open top + 3 × 40 ft high cube, the plan from our loading records.
How much does a Komatsu WA700-3 weigh for shipping?
Komatsu lists the Komatsu WA700-3 at 79 US tons (72,080 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Komatsu WA700-3?
40 ft 11 in × 13 ft 9 in × 15 ft 10 in (12.48 × 4.18 × 4.84 m) (length × width × height) in transport position, from Komatsu's published specifications for the Komatsu WA700-3.
What has to come off a Komatsu WA700-3 to ship it?
To containerize it: bucket off, cab or ROPS removed and crated, counterweight off, wheels off, and frame split at the articulation. Our crew does the work, crates and labels every part, and loads the pieces across at least 3 containers, with documentation for reassembly. Shipped whole on a flat rack or RoRo, it needs little or no disassembly.
Can a Komatsu WA700-3 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
