CAT 16: transport dimensions, weight and how it ships overseas
The CAT 16 usually goes in 1 × 40 ft high cube, from our loading records for related models (CAT 16G, CAT 16H, CAT 16M). Shipped whole, it goes on a 40 ft flat rack (3 ft 4 in / 1.01 m over width, 5 ft 10 in / 1.77 m over height), or RoRo where a lane serves your port.
- Transport length
- 34 ft 9 in / 10.59 m
- Transport width
- 11 ft 2 in / 3.41 m
- Transport height
- 12 ft 2 in / 3.72 m
- Weight
- 63,500 lb / 28,816 kg

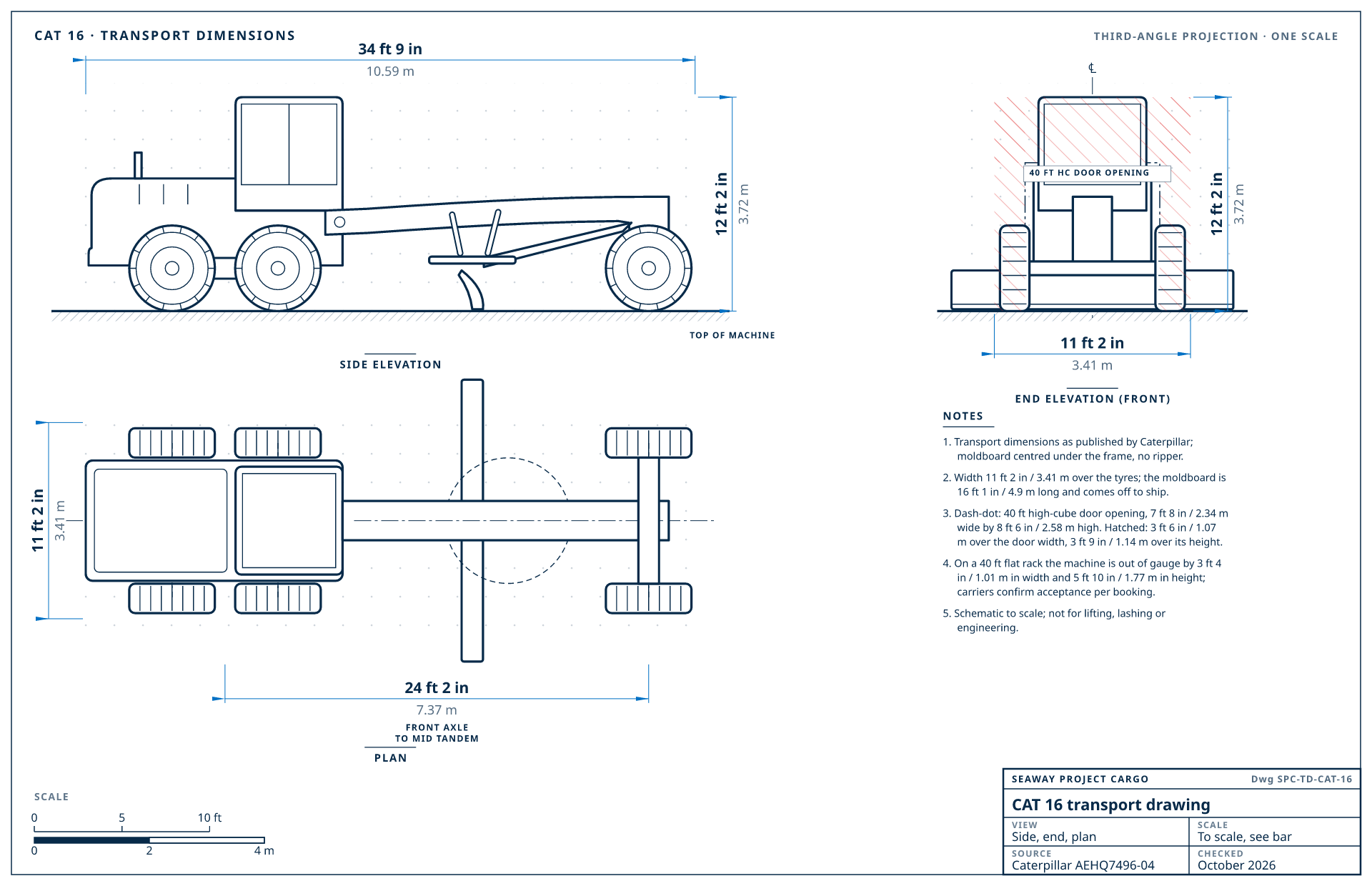

CAT 16 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Caterpillar's published transport dimensions (AEHQ7496-04, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
CAT 16 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 34 ft 9 in / 10.59 m | moldboard centred under the frame, no ripper |
| Transport width | 11 ft 2 in / 3.41 m | over the tyres |
| Transport height | 12 ft 2 in / 3.72 m | to the top of the cab or ROPS |
| Weight | 63,500 lb / 28,816 kg | operating weight |
| Moldboard length | 16 ft 1 in / 4.9 m | standard moldboard; comes off its circle to ship |
| Wheelbase | 24 ft 2 in / 7.37 m | front axle to the middle of the tandem |
| Tandem axle spacing | 6 ft / 1.84 m | rear tandem axle centre to centre |
| Front axle to moldboard | 10 ft 1 in / 3.07 m | |
| Tread | 8 ft 10 in / 2.7 m | tyre centre to tyre centre |
| Ground clearance | 1 ft 4 in / 0.4 m | |
| Machine type | Motor grader | |
| Configuration | 16 ft 1 in (4.90 m) moldboard, 23.5R25 tyres. Without the front counterweight and ripper, with the tow hitch. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a CAT 16, best first
Loaded by Seaway
How we load the CAT 16
Our loading records list earlier and sister models of the CAT 16 (CAT 16G, CAT 16H, CAT 16M). The usual plan is 1 × 40 ft high cube.
- 1 × 40 ft high cube
- Before loading: drive shaft disconnected.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft high cubeBest fit | From our loading records | drive shaft disconnected |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (3 ft 4 in / 1.01 m over width, 5 ft 10 in / 1.77 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
Caterpillar publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 34 ft 9 in × 11 ft 2 in × 12 ft 2 in (10.59 × 3.41 × 3.72 m)63,500 lb (28,816 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 3 ft 4 in / 1.01 m over width, 5 ft 10 in / 1.77 m over height
- 40 ft high-cube door
- 3 ft 6 in / 1.07 m over the door width, 3 ft 9 in / 1.14 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
CAT 16 generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| 16 M series | — | 1 × 40 ft high cube1 machine on record: CAT 16M |
| 16current | — | 1 × 20 ft container1 machine on record: CAT 916 |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable motor graders from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| CAT 16 | 34 ft 9 in × 11 ft 2 in × 12 ft 2 in (10.59 × 3.41 × 3.72 m) | 63,500 lb / 28,816 kg | 1 × 40 ft high cube |
| Komatsu GD825A-2 | 37 ft 8 in × 10 ft 10 in × 11 ft 8 in (11.47 × 3.31 × 3.55 m) | 69,800 lb / 31,655 kg | 1 × 40 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the CAT 16 go
NigeriaTransit 21-30 daysImport duty 5%HS 8429.20 · 2023
Form M must be opened through a Nigerian bank before the machine ships.
Quote to Nigeria
Saudi ArabiaTransit 18-25 daysImport duty 5%HS 8429.20 · 2023
Shipments need SABER conformity certificates arranged before arrival.
Quote to Saudi Arabia
AustraliaTransit 28-35 daysImport duty 5%HS 8429.20 · 2023
Strict biosecurity cleaning; dirty undercarriages are re-cleaned at the importer's cost.
Quote to Australia
ChileTransit 21-28 daysImport duty 6%HS 8429.20 · 2023
Quote to Chile
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a CAT 16 for export
- Tier 4 Final and Stage V engines need ultra-low-sulfur diesel (15 ppm or less) and DEF. Where only high-sulfur diesel is sold, the after-treatment clogs, so check fuel quality or source a lower-tier export machine.
- Telematics (such as Cat Product Link, Komtrax or JDLink) may stop working abroad; the dealer can transfer or end the subscription before export.
CAT 16 shipping questions
Does a CAT 16 fit in a shipping container?
Not in one piece: at 63,500 lb (28,816 kg) it is heavier than one container carries. Taken apart, it goes in 1 × 40 ft high cube, the plan from our loading records.
How much does a CAT 16 weigh for shipping?
Caterpillar lists the CAT 16 at 63,500 lb (28,816 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a CAT 16?
34 ft 9 in × 11 ft 2 in × 12 ft 2 in (10.59 × 3.41 × 3.72 m) (length × width × height) in transport position, from Caterpillar's published specifications for the CAT 16.
What has to come off a CAT 16 to ship it?
For 1 × 40 ft high cube: drive shaft disconnected. Our crew does the work, crates and labels the loose parts and documents everything for reassembly.
Can a CAT 16 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
