Track-type tractor (dozer) · Caterpillar
CAT D7: transport dimensions, weight and how it ships overseas
We load the CAT D7 in 2 × 40 ft high cube, from our own loading records. Shipped whole, it goes on a 40 ft flat rack (1 ft 3 in / 0.39 m over width, 4 ft 10 in / 1.48 m over height), or RoRo where a lane serves your port.
- Transport length
- 19 ft / 5.79 m
- Transport width
- 9 ft 2 in / 2.79 m
- Transport height
- 11 ft 3 in / 3.43 m
- Weight
- 67,800 lb / 30,731 kg

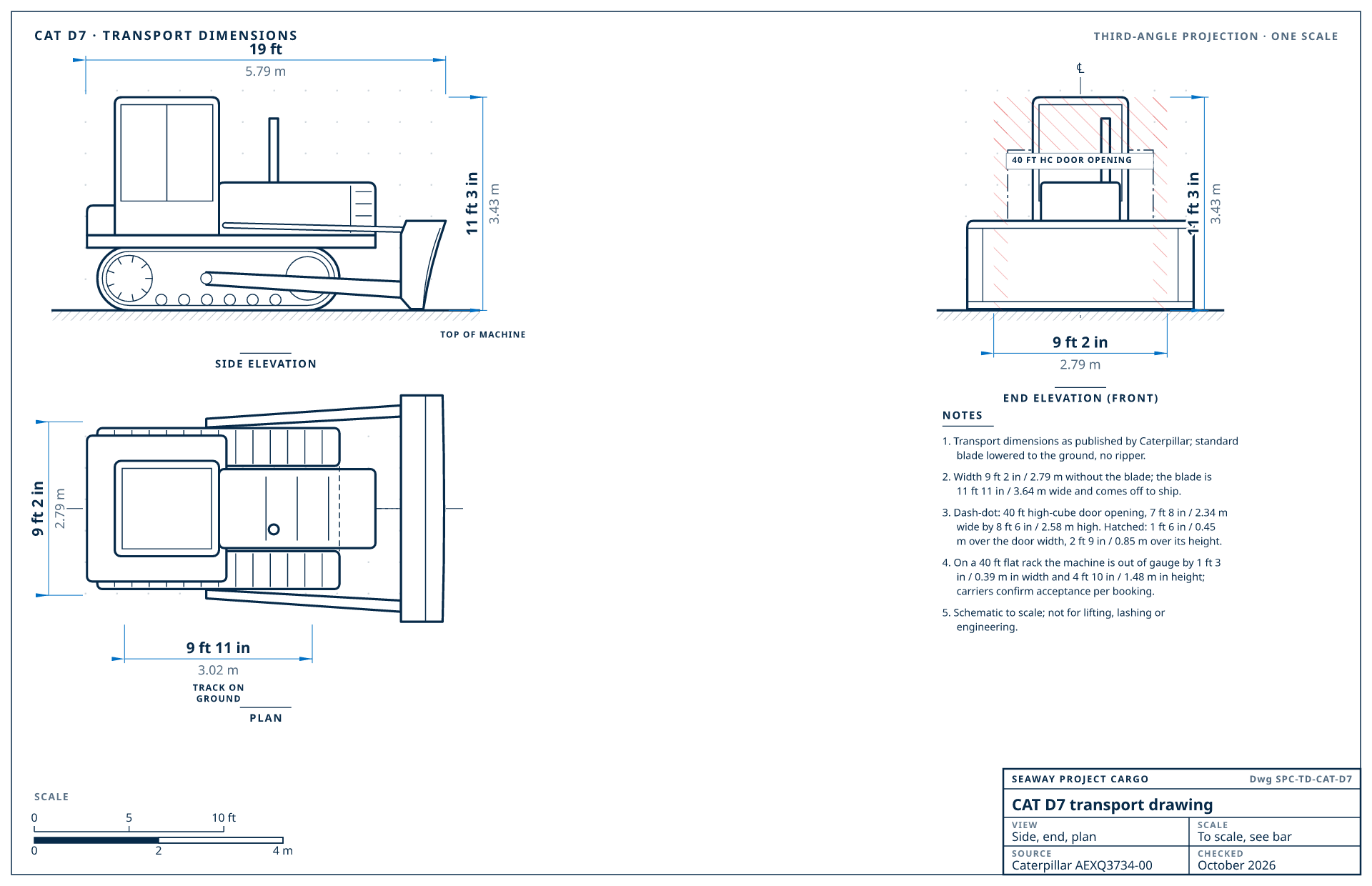

CAT D7 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Caterpillar's published transport dimensions (AEXQ3734-00, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
CAT D7 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 19 ft / 5.79 m | blade on the ground, no ripper |
| Length, basic tractor | 15 ft 3 in / 4.66 m | without blade, push arms or ripper |
| Transport width | 9 ft 2 in / 2.79 m | over the tracks, 24 in (610 mm) shoes |
| Transport height | 11 ft 3 in / 3.43 m | to the top of the cab or ROPS |
| Weight | 67,800 lb / 30,731 kg | operating weight |
| Track length | 9 ft 11 in / 3.02 m | |
| Track gauge | 6 ft 6 in / 1.98 m | |
| Blade width | 11 ft 11 in / 3.64 m | standard blade; wider than the tracks, comes off to ship |
| Ground clearance | 1 ft 5 in / 0.44 m | |
| Machine type | Track-type tractor (dozer) | |
| Configuration | 9.7 yd³ (7.42 m³) semi-u blade, 24 in (610 mm) shoes, multi-shank ripper. Weight includes the ripper; the length is without it. Shipping weight 59,600 lb (27,018 kg). | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a CAT D7, best first
Loaded by Seaway
How we load the CAT D7
We have dismantled and loaded the CAT D7 for export before. It goes in 2 × 40 ft high cube.
- 2 × 40 ft high cubeOr: 1 × 40 ft high cube
- Before loading, as on every dozer we put in containers: blade off, ripper off, cab or ROPS removed and crated, track chains and shoes off. Our loading sheet does not list the steps for this one, so the survey confirms them.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 2 × 40 ft high cubeBest fit | From our loading records | blade off, ripper off, cab or ROPS removed and crated, and track chains and shoes off (typical) |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (1 ft 3 in / 0.39 m over width, 4 ft 10 in / 1.48 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
CAT D7 generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| D7G | — | 1 × 40 ft high cube1 machine on record: CAT D7G |
| D7H | — | 2 × 40 ft high cube1 machine on record: CAT D7 H |
| D7R | — | 2 × 40 ft high cube1 machine on record: CAT D7R |
| D7E | 2008 | 2 × 40 ft high cube1 machine on record: CAT D7E |
| D7current | — | 2 × 40 ft high cube1 machine on record: CAT D7 |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable dozers from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| CAT D7 | 19 ft × 9 ft 2 in × 11 ft 3 in (5.79 × 2.79 × 3.43 m) | 67,800 lb / 30,731 kg | 2 × 40 ft high cube |
| Komatsu D85EXi-18 | 24 ft × 8 ft 9 in × 10 ft 11 in (7.33 × 2.66 × 3.32 m) | 68,300 lb / 31,000 kg | 2 × 40 ft high cube |
| John Deere 950 P-Tier | 20 ft 11 in × 10 ft 7 in × 11 ft 3 in (6.39 × 3.23 × 3.43 m) | 65,300 lb / 29,606 kg | 40 ft flat rack |
| Liebherr PR 746 | 20 ft 1 in × 9 ft 10 in × 11 ft 3 in (6.12 × 3 × 3.44 m) | 57,800 lb / 26,240 kg | 40 ft flat rack |
| Liebherr PR 756 | 21 ft 2 in × 10 ft 4 in × 11 ft 10 in (6.45 × 3.15 × 3.61 m) | 78,500 lb / 35,628 kg | 40 ft flat rack |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the CAT D7 go
NigeriaTransit 21-30 daysImport duty 5%HS 8429.11 · 2023
Form M must be opened through a Nigerian bank before the machine ships.
Quote to Nigeria
Saudi ArabiaTransit 18-25 daysImport duty 5%HS 8429.11 · 2023
Shipments need SABER conformity certificates arranged before arrival.
Quote to Saudi Arabia
AustraliaTransit 28-35 daysImport duty 0%HS 8429.11 · 2023
Strict biosecurity cleaning; dirty undercarriages are re-cleaned at the importer's cost.
Quote to Australia
ChileTransit 21-28 daysImport duty 6%HS 8429.11 · 2023
Quote to Chile
Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff
Preparing a CAT D7 for export
- Tier 4 Final and Stage V engines need ultra-low-sulfur diesel (15 ppm or less) and DEF. Where only high-sulfur diesel is sold, the after-treatment clogs, so check fuel quality or source a lower-tier export machine.
- Telematics (such as Cat Product Link, Komtrax or JDLink) may stop working abroad; the dealer can transfer or end the subscription before export.
CAT D7 shipping questions
Does a CAT D7 fit in a shipping container?
Not in one piece: at 67,800 lb (30,731 kg) it is heavier than one container carries. Taken apart, it goes in 2 × 40 ft high cube, the plan from our loading records.
How much does a CAT D7 weigh for shipping?
Caterpillar lists the CAT D7 at 67,800 lb (30,731 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a CAT D7?
19 ft × 9 ft 2 in × 11 ft 3 in (5.79 × 2.79 × 3.43 m) (length × width × height) in transport position, from Caterpillar's published specifications for the CAT D7.
What has to come off a CAT D7 to ship it?
For 2 × 40 ft high cube, typically: blade off, ripper off, cab or ROPS removed and crated, and track chains and shoes off. That is what comes off every dozer we put in containers; the survey confirms it for your machine. Our crew does the work, crates and labels the loose parts and documents everything for reassembly.
Can a CAT D7 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
