Motor grader · Caterpillar

CAT 14: transport dimensions, weight and how it ships overseas

The CAT 14 usually goes in 1 × 40 ft high cube, from our loading records for related models (CAT 14G, CAT 14H, CAT 14M). Shipped whole, it goes on a 40 ft flat rack (2 ft 2 in / 0.65 m over width, 5 ft 4 in / 1.62 m over height), or RoRo where a lane serves your port.

Transport length
35 ft 9 in / 10.9 m
Transport width
10 ft / 3.05 m
Transport height
11 ft 8 in / 3.57 m
Weight
57,200 lb / 25,968 kg
Quote my CAT 14Call Specialist

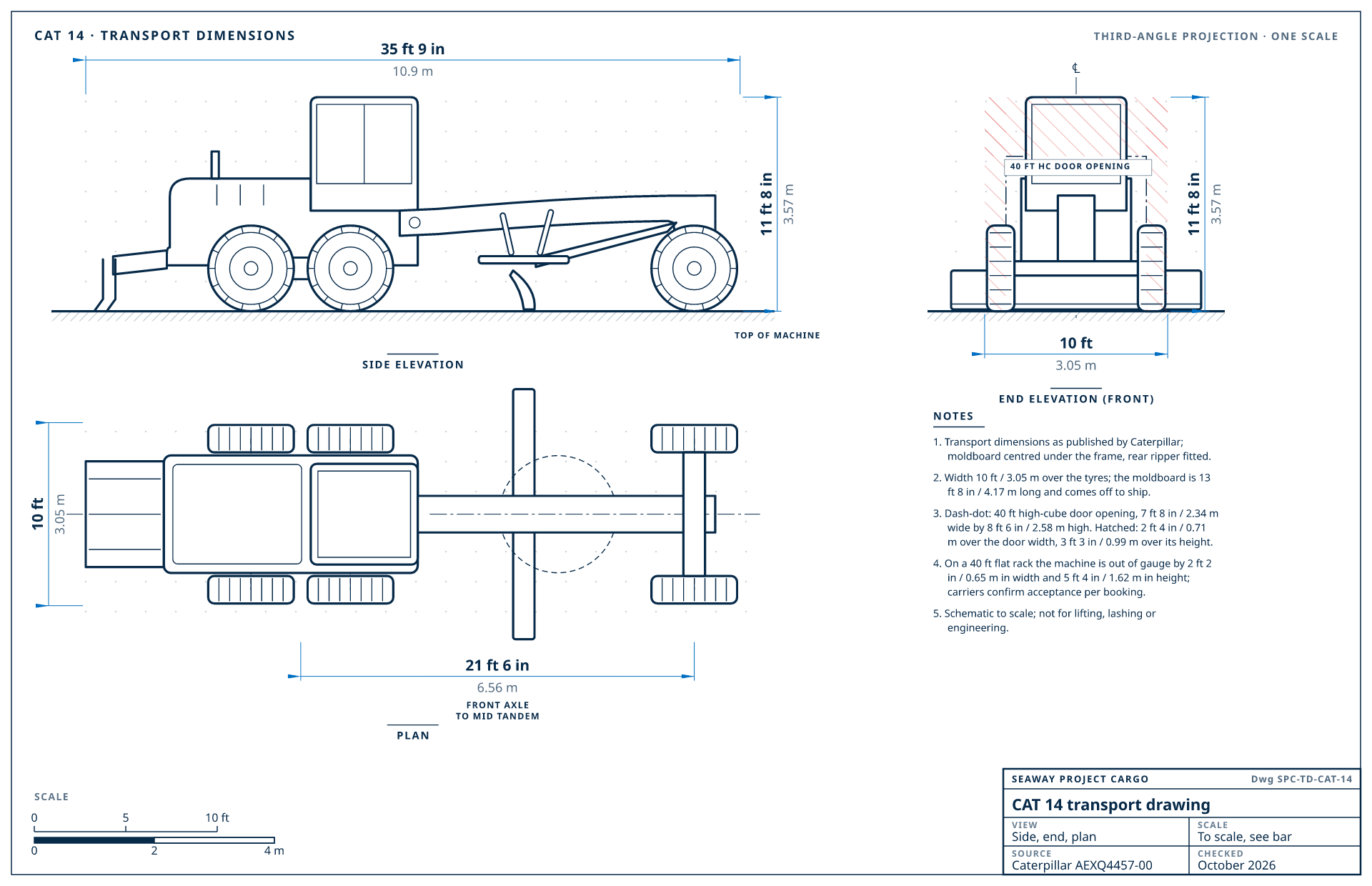

CAT 14 transport drawing

CAT 14 transport drawingSide elevation, end elevation and plan of the CAT 14, drawn to scale from the manufacturer's transport dimensions: 35 ft 9 in / 10.9 m long, 10 ft / 3.05 m wide, 11 ft 8 in / 3.57 m high, 57,200 lb (25,968 kg).CAT 14 · TRANSPORT DIMENSIONSTHIRD-ANGLE PROJECTION · ONE SCALE35 ft 9 in10.9 m11 ft 8 in3.57 mTOP OF MACHINESIDE ELEVATION℄40 FT HC DOOR OPENING10 ft3.05 m11 ft 8 in3.57 mEND ELEVATION (FRONT)10 ft3.05 m21 ft 6 in6.56 mFRONT AXLETO MID TANDEMPLANNOTES1. Transport dimensions as published by Caterpillar;moldboard centred under the frame, rear ripper fitted.2. Width 10 ft / 3.05 m over the tyres; the moldboard is 13ft 8 in / 4.17 m long and comes off to ship.3. Dash-dot: 40 ft high-cube door opening, 7 ft 8 in / 2.34 mwide by 8 ft 6 in / 2.58 m high. Hatched: 2 ft 4 in / 0.71m over the door width, 3 ft 3 in / 0.99 m over its height.4. On a 40 ft flat rack the machine is out of gauge by 2 ft 2in / 0.65 m in width and 5 ft 4 in / 1.62 m in height;carriers confirm acceptance per booking.5. Schematic to scale; not for lifting, lashing orengineering.SCALE0510 ft024 mSEAWAY PROJECT CARGODwg SPC-TD-CAT-14CAT 14 transport drawingVIEWSide, end, planSCALETo scale, see barSOURCECaterpillar AEXQ4457-00CHECKEDOctober 2026

Scroll sideways to read the drawing, or turn your phone.

CAT 14 transport drawing
Download the CAT 14 drawing (PNG)

1920 × 1240 px. Free to use with a link to this page.

Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Caterpillar's published transport dimensions (AEXQ4457-00, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.

CAT 14 transport specifications

SpecificationValueBasis
Transport length35 ft 9 in / 10.9 mmoldboard centred under the frame, rear ripper fitted
Transport width10 ft / 3.05 mover the tyres
Transport height11 ft 8 in / 3.57 mto the top of the cab or ROPS
Weight57,200 lb / 25,968 kgoperating weight
Moldboard length13 ft 8 in / 4.17 mstandard moldboard; comes off its circle to ship
Wheelbase21 ft 6 in / 6.56 mfront axle to the middle of the tandem
Tandem axle spacing5 ft 5 in / 1.66 mrear tandem axle centre to centre
Front axle to moldboard9 ft 4 in / 2.84 m
Tread8 ft 3 in / 2.52 mtyre centre to tyre centre
Ground clearance1 ft 3 in / 0.37 m
Machine typeMotor grader
Configuration13 ft 8 in (4.17 m) moldboard, 20.5R25 tyres. Length push plate to ripper; weight as Cat prints it, typically equipped. 12 ft 9 in (3.89 m) to the top of the attachments.

Manufacturer documents

Links and figures checked October 2026. Linked from the manufacturer; we do not host them.

Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.

Every way to ship a CAT 14, best first

Loaded by Seaway

How we load the CAT 14

Our loading records list earlier and sister models of the CAT 14 (CAT 14G, CAT 14H, CAT 14M). The usual plan is 1 × 40 ft high cube.

  • 1 × 40 ft high cube
  • Before loading: drive shaft disconnected.
40' high cube container · Isometric viewDoor end of the 40' high cube container, left half closed, right half cut through the door opening: inside width 7 ft 8 in (2.34 m), inside height 8 ft 10 in (2.7 m), door opening 7 ft 8 in (2.34 m) wide and 8 ft 6 in (2.6 m) high.MAIN MACHINE39 ft 6 in12.03 m40' high cube containerISOMETRIC VIEW · SEAWAY PROJECT CARGO
1 × 40 ft high cube: main machine

From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.

Get a quote with this planSee every model in this series

Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.

#Best methodFitPreparation
1Our usual plan: 1 × 40 ft high cubeBest fitFrom our loading recordsdrive shaft disconnected
240 ft flat rackOut-of-gaugeShips assembled, blocked and lashed; out-of-gauge surcharge applies (2 ft 2 in / 0.65 m over width, 5 ft 4 in / 1.62 m over height).
3RoRoWhere a RoRo lane serves the destinationDrives on assembled where a RoRo lane serves the destination.
4BreakbulkFits as isLifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port.

See how we containerize heavy equipment

CAT 14 generations and how each has shipped

GenerationYears (approx.)How Seaway has loaded it
14 M/M3 series—1 × 40 ft high cube1 machine on record: CAT 14M
14current—No record yet; measured at pickup and quoted both ways

Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.

Comparable motor graders from other brands

MachineL × W × H (transport)WeightShips
CAT 1435 ft 9 in × 10 ft × 11 ft 8 in (10.9 × 3.05 × 3.57 m)57,200 lb / 25,968 kg1 × 40 ft high cube
Volvo G99031 ft 11 in × 9 ft 2 in × 10 ft 9 in (9.73 × 2.8 × 3.28 m)48,700 lb / 22,100 kg40 ft high-cube container

Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.

Where machines like the CAT 14 go

  • NigeriaTransit 21-30 days

    Import duty 5%HS 8429.20 · 2023

    Form M must be opened through a Nigerian bank before the machine ships.

    Quote to Nigeria
  • Saudi ArabiaTransit 18-25 days

    Import duty 5%HS 8429.20 · 2023

    Shipments need SABER conformity certificates arranged before arrival.

    Quote to Saudi Arabia
  • AustraliaTransit 28-35 days

    Import duty 5%HS 8429.20 · 2023

    Strict biosecurity cleaning; dirty undercarriages are re-cleaned at the importer's cost.

    Quote to Australia
  • ChileTransit 21-28 days

    Import duty 6%HS 8429.20 · 2023

    Quote to Chile

Duty rates (most-favoured-nation, averaged across the HS lines of the machine class): UNCTAD TRAINS via World Bank WITS: MFN applied tariff

Preparing a CAT 14 for export

  • Tier 4 Final and Stage V engines need ultra-low-sulfur diesel (15 ppm or less) and DEF. Where only high-sulfur diesel is sold, the after-treatment clogs, so check fuel quality or source a lower-tier export machine.
  • Telematics (such as Cat Product Link, Komtrax or JDLink) may stop working abroad; the dealer can transfer or end the subscription before export.

CAT 14 shipping questions

Does a CAT 14 fit in a shipping container?

Not in one piece: at 10 ft (3.05 m) wide it is wider than a 40 ft high-cube door (7 ft 8 in / 2.34 m). Taken apart, it goes in 1 × 40 ft high cube, the plan from our loading records.

How much does a CAT 14 weigh for shipping?

Caterpillar lists the CAT 14 at 57,200 lb (25,968 kg) (operating weight); the bill of lading uses your machine's own weight.

What are the shipping dimensions of a CAT 14?

35 ft 9 in × 10 ft × 11 ft 8 in (10.9 × 3.05 × 3.57 m) (length × width × height) in transport position, from Caterpillar's published specifications for the CAT 14.

What has to come off a CAT 14 to ship it?

For 1 × 40 ft high cube: drive shaft disconnected. Our crew does the work, crates and labels the loose parts and documents everything for reassembly.

Can a CAT 14 ship RoRo?

Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
