Snorkel TB126J: transport dimensions, weight and how it ships overseas
We load the Snorkel TB126J in 1 × 40 ft open top, from our own loading records. Shipped whole, it goes RoRo where a lane serves your port.
- Transport length
- 44 ft 9 in / 13.64 m
- Transport width
- 8 ft 6 in / 2.59 m
- Transport height
- 10 ft 5 in / 3.17 m
- Weight
- 41,800 lb / 18,960 kg

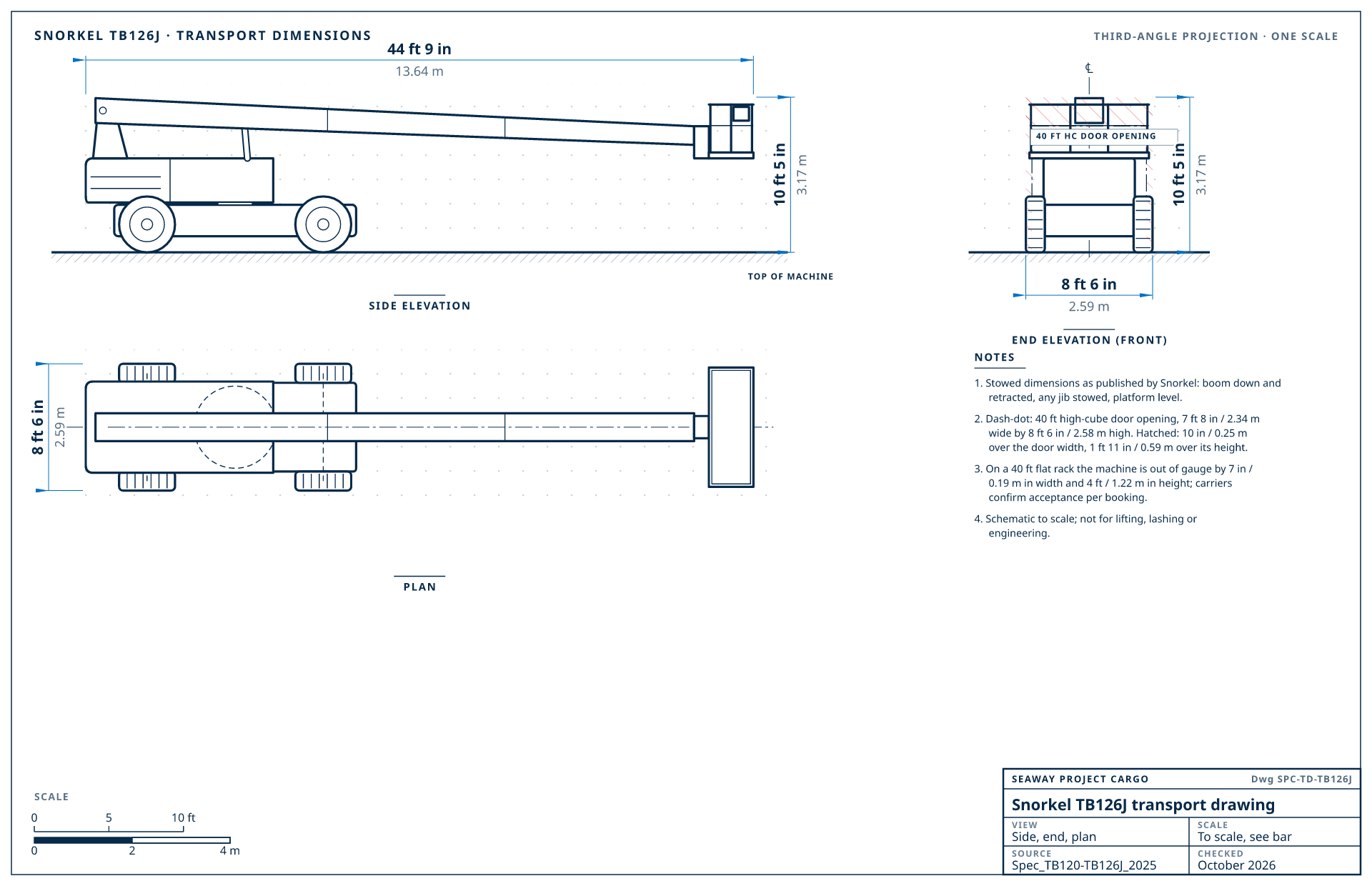

Snorkel TB126J transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Snorkel's published transport dimensions (Spec_TB120-TB126J_2025, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Snorkel TB126J transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 44 ft 9 in / 13.64 m | stowed: boom down and retracted, platform level |
| Transport width | 8 ft 6 in / 2.59 m | over the tyres |
| Transport height | 10 ft 5 in / 3.17 m | stowed, to the top of the boom or the platform rails |
| Weight | 41,800 lb / 18,960 kg | operating weight |
| Platform height | 126 ft / 38.4 m | maximum, to the platform floor |
| Horizontal outreach | 62 ft 11 in / 19.17 m | |
| Platform | 8 ft / 2.44 m | standard platform, 3 ft / 0.91 m deep |
| Tail swing radius | 6 ft 8 in / 2.04 m | turntable tail swing, as the manufacturer prints it |
| Ground clearance | 1 ft 1 in / 0.33 m | |
| Machine type | Boom lift | |
| Configuration | Telescopic boom, jib, 8 ft × 3 ft (2.44 × 0.91 m) platform, 4WD, foam-filled tyres. Width with the axles retracted. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Snorkel TB126J, best first
Loaded by Seaway
How we load the Snorkel TB126J
We have dismantled and loaded the Snorkel TB126J for export before. It goes in 1 × 40 ft open top, 1 ft / 0.3 m over the side walls.
- 1 × 40 ft open top, 1 ft / 0.3 m over the side walls
- Before loading, as on every boom lift wider than the box: platform off, wheels off. Our loading sheet does not list the steps for this one, so the survey confirms them.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft open top, 1 ft / 0.3 m over the side wallsBest fit | From our loading records | platform off and wheels off (typical) |
| 2 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 3 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Comparable aerial lifts from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Snorkel TB126J | 44 ft 9 in × 8 ft 6 in × 10 ft 5 in (13.64 × 2.59 × 3.17 m) | 41,800 lb / 18,960 kg | 1 × 40 ft open top, 1 ft / 0.3 m over the side walls |
| JLG 1200SJP | 34 ft 11 in × 8 ft 2 in × 10 ft (10.64 × 2.49 × 3.04 m) | 41,100 lb / 18,650 kg | 1 × 40 ft open top, 1 ft / 0.3 m over the side walls |
| JLG 120SXJ | 35 ft 11 in × 8 ft 2 in × 10 ft (10.95 × 2.49 × 3.05 m) | 43,500 lb / 19,732 kg | 1 × 40 ft high cube |
| JLG 1250AJP | 37 ft 7 in × 8 ft 2 in × 9 ft 11 in (11.45 × 2.49 × 3.02 m) | 44,000 lb / 19,958 kg | 1 × 40 ft open top, 1 ft / 0.3 m over the side walls |
| Genie S-120 | 42 ft 8 in × 8 ft 1 in × 10 ft 1 in (13 × 2.46 × 3.07 m) | 44,300 lb / 20,112 kg | 1 × 40 ft open top, 1 ft / 0.3 m over the side walls |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Snorkel TB126J go
MexicoTransit 5-14 daysBoom lifts by truck across the border or in containers to Manzanillo.
Quote to Mexico
AustraliaTransit 28-35 daysStrict biosecurity cleaning; tyres, turntable and chassis pockets are washed before loading.
Quote to Australia
ChileTransit 21-28 daysBooms for mining and industrial maintenance, in containers to San Antonio.
Quote to Chile
Preparing a Snorkel TB126J for export
- The boom is stowed and retracted and the platform controls covered.
- Batteries are disconnected and the machine is chocked and lashed through its tie-down points.
Snorkel TB126J shipping questions
Does a Snorkel TB126J fit in a shipping container?
Not in one piece: at 8 ft 6 in (2.59 m) wide it is wider than a 40 ft high-cube door (7 ft 8 in / 2.34 m). Taken apart, it goes in 1 × 40 ft open top, 1 ft / 0.3 m over the side walls, the plan from our loading records.
How much does a Snorkel TB126J weigh for shipping?
Snorkel lists the Snorkel TB126J at 41,800 lb (18,960 kg) (operating weight); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Snorkel TB126J?
44 ft 9 in × 8 ft 6 in × 10 ft 5 in (13.64 × 2.59 × 3.17 m) (length × width × height) in transport position, from Snorkel's published specifications for the Snorkel TB126J.
What has to come off a Snorkel TB126J to ship it?
For 1 × 40 ft open top, typically: platform off and wheels off. A boom lift wider than the box comes in with the platform and wheels off; the survey confirms it for your machine. Our crew does the work, crates and labels the loose parts and documents everything for reassembly.
Can a Snorkel TB126J ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
