Vögele SUPER 2100-3i: transport dimensions, weight and how it ships overseas
The Vögele SUPER 2100-3i usually goes in 1 × 40 ft open top + 1 × 40 ft high cube, from our loading records for related models (Vögele Super 2100-2). Shipped whole, it goes on a 40 ft flat rack (6 in / 0.15 m over width, 3 ft 9 in / 1.15 m over height), or RoRo where a lane serves your port.
- Transport length
- 21 ft 10 in / 6.65 m
- Transport width
- 8 ft 4 in / 2.55 m
- Transport height
- 10 ft 2 in / 3.1 m
- Weight
- 48,400 lb / 21,950 kg

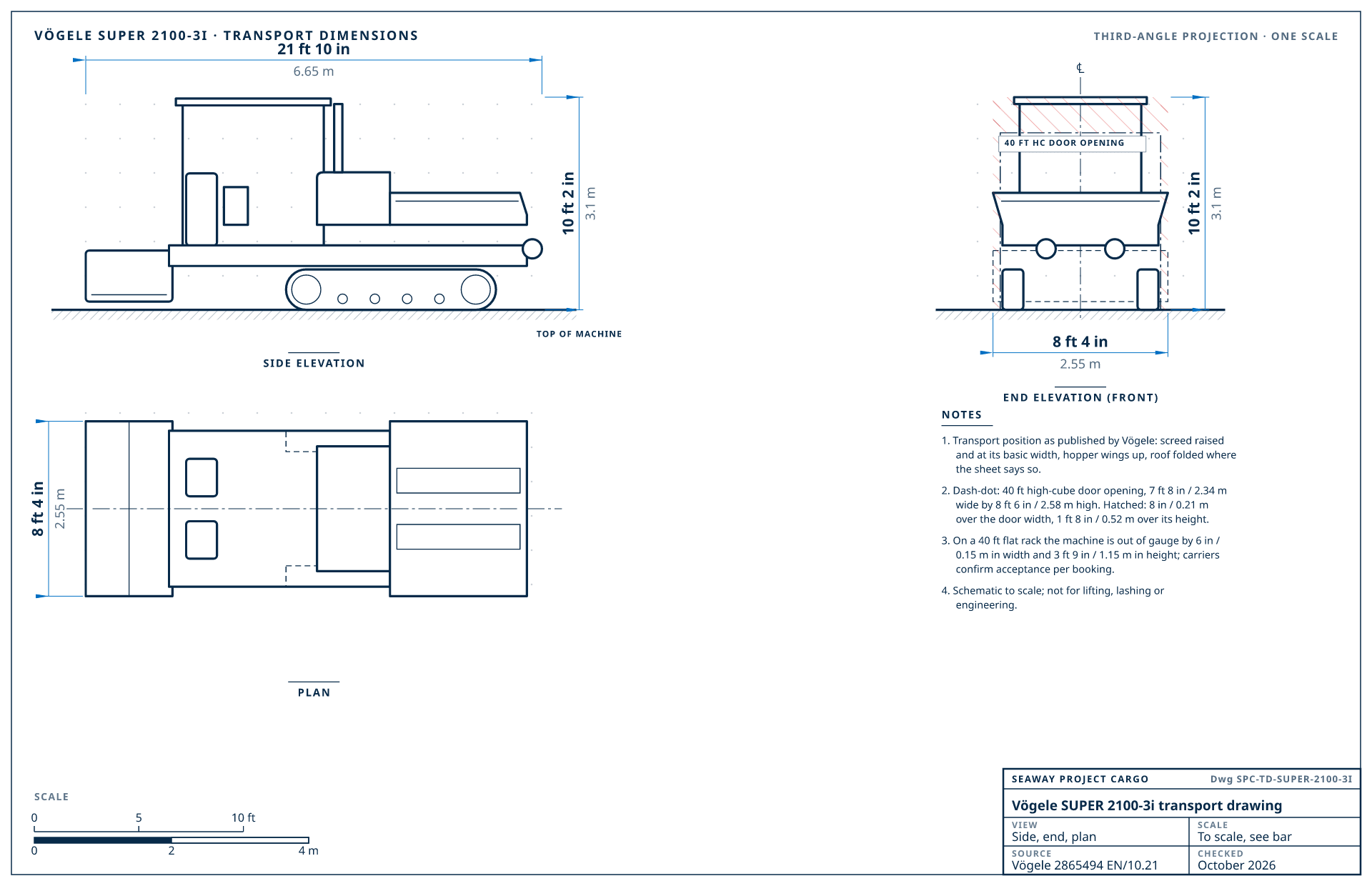

Vögele SUPER 2100-3i transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Vögele's published transport dimensions. Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Vögele SUPER 2100-3i transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 21 ft 10 in / 6.65 m | transport position, with the standard screed |
| Transport width | 8 ft 4 in / 2.55 m | hopper wings up |
| Transport height | 10 ft 2 in / 3.1 m | travel height: roof folded or exhaust, as the manufacturer prints it |
| Weight | 48,400 lb / 21,950 kg | weight with the standard screed |
| Basic paving width | 8 ft 4 in / 2.55 m | standard screed, no extensions |
| Maximum paving width | 42 ft 8 in / 13 m | with screed extensions; the extensions ship crated |
| Hopper capacity | 14 t | |
| Track length | 10 ft / 3.06 m | |
| Track gauge | 6 ft 6 in / 1.97 m | |
| Machine type | Tracked asphalt paver | |
| Configuration | Rubber crawler tracks, with the AB 500 TV extending screed at its 8 ft 4 in (2.55 m) basic width. Width with the hopper wings folded; height with the operator's roof folded down, 12 ft 8 in (3.86 m) with it up. | |
Manufacturer documents
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Vögele SUPER 2100-3i, best first
Loaded by Seaway
How we load the Vögele SUPER 2100-3i
Our loading records list earlier and sister models of the Vögele SUPER 2100-3i (Vögele Super 2100-2). The usual plan is 1 × 40 ft open top + 1 × 40 ft high cube.
- 1 × 40 ft open top + 1 × 40 ft high cube
- Before loading, as on every paver we put in containers: screed off. Our loading sheet does not list the steps for this one, so the survey confirms them.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft open top + 1 × 40 ft high cubeBest fit | From our loading records | screed off (typical) |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (6 in / 0.15 m over width, 3 ft 9 in / 1.15 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
Vögele publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 21 ft 10 in × 8 ft 4 in × 10 ft 2 in (6.65 × 2.55 × 3.1 m)48,400 lb (21,950 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 6 in / 0.15 m over width, 3 ft 9 in / 1.15 m over height
- 40 ft high-cube door
- 8 in / 0.21 m over the door width, 1 ft 8 in / 0.52 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Vögele SUPER 2100-3i generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| SUPER 2100-2 | — | 1 × 40 ft open top + 1 × 40 ft high cube1 machine on record: Vögele Super 2100-2 |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable asphalt pavers from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Vögele SUPER 2100-3i | 21 ft 10 in × 8 ft 4 in × 10 ft 2 in (6.65 × 2.55 × 3.1 m) | 48,400 lb / 21,950 kg | 1 × 40 ft open top + 1 × 40 ft high cube |
| Roadtec RP-195 | 20 ft 8 in × 10 ft 2 in × 10 ft 2 in (6.29 × 3.11 × 3.11 m) | 45,400 lb / 20,593 kg | 1 × 40 ft open top + 3 × 40 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Vögele SUPER 2100-3i go
MexicoTransit 5-14 daysPavers by truck across the border or in open tops to Manzanillo.
Quote to Mexico
ColombiaTransit 12-18 daysRoad-building fleets, in open tops and high cubes to Cartagena or Buenaventura.
Quote to Colombia
PhilippinesTransit 18-28 daysRoad-building fleets, in open tops and high cubes to Manila.
Quote to Philippines
Preparing a Vögele SUPER 2100-3i for export
- The hopper wings are folded, the operator's roof lowered, the screed raised and locked or taken off, and the conveyors, augers and screed plates cleaned of asphalt.
- Batteries are disconnected and the machine is chocked and lashed through its tie-down points.
Vögele SUPER 2100-3i shipping questions
Does a Vögele SUPER 2100-3i fit in a shipping container?
Not in one piece: at 8 ft 4 in (2.55 m) wide it is wider than a 40 ft high-cube door (7 ft 8 in / 2.34 m). Taken apart, it goes in 1 × 40 ft open top + 1 × 40 ft high cube, the plan from our loading records.
How much does a Vögele SUPER 2100-3i weigh for shipping?
Vögele lists the Vögele SUPER 2100-3i at 48,400 lb (21,950 kg) (weight with the standard screed); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Vögele SUPER 2100-3i?
21 ft 10 in × 8 ft 4 in × 10 ft 2 in (6.65 × 2.55 × 3.1 m) (length × width × height) in transport position, from Vögele's published specifications for the Vögele SUPER 2100-3i.
What has to come off a Vögele SUPER 2100-3i to ship it?
For 1 × 40 ft open top + 1 × 40 ft high cube, typically: screed off. The screed comes off every paver we put in containers and travels crated with its extensions; the survey confirms the rest for your machine. Our crew does the work, crates and labels the loose parts and documents everything for reassembly.
Can a Vögele SUPER 2100-3i ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
