Roadtec RP-195: transport dimensions, weight and how it ships overseas
We load the Roadtec RP-195 in 1 × 40 ft open top + 3 × 40 ft high cube, from our own loading records. Shipped whole, it goes on a 40 ft flat rack (2 ft 4 in / 0.71 m over width, 3 ft 10 in / 1.16 m over height), or RoRo where a lane serves your port.
- Transport length
- 20 ft 8 in / 6.29 m
- Transport width
- 10 ft 2 in / 3.11 m
- Transport height
- 10 ft 2 in / 3.11 m
- Weight
- 45,400 lb / 20,593 kg

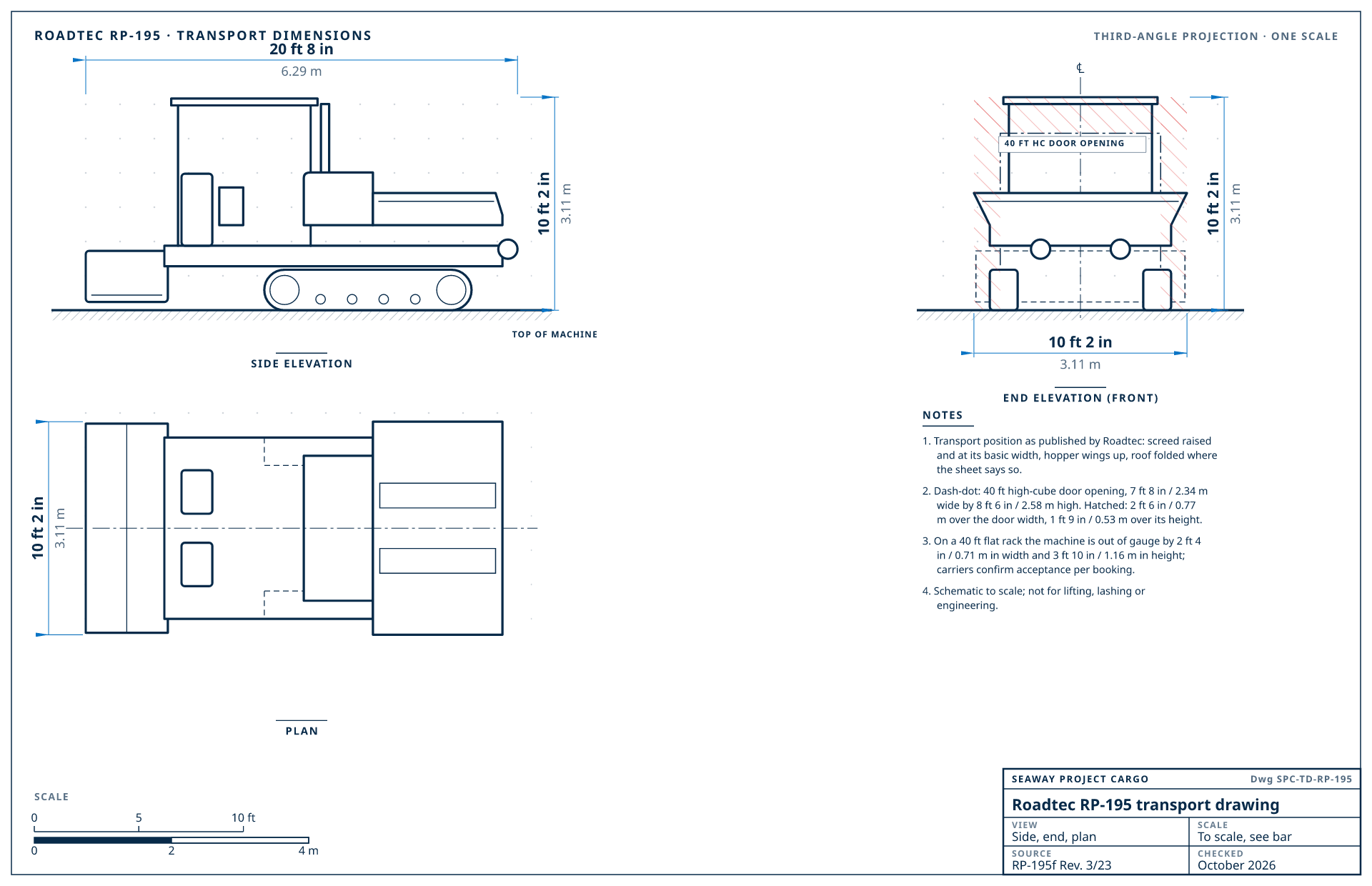

Roadtec RP-195 transport drawing
Scroll sideways to read the drawing, or turn your phone.
1920 × 1240 px. Free to use with a link to this page.
Side elevation, end elevation against a 40 ft high-cube door opening, and plan, all at one scale from Roadtec's published transport dimensions (RP-195f Rev. 3/23, checked October 2026). Red hatching marks what stands outside the door opening. Schematic; not for lifting or engineering.
Roadtec RP-195 transport specifications
| Specification | Value | Basis |
|---|---|---|
| Transport length | 20 ft 8 in / 6.29 m | transport position, with the standard screed |
| Transport width | 10 ft 2 in / 3.11 m | hopper wings up |
| Transport height | 10 ft 2 in / 3.11 m | travel height: roof folded or exhaust, as the manufacturer prints it |
| Weight | 45,400 lb / 20,593 kg | weight with the standard screed |
| Basic paving width | 10 ft / 3.05 m | standard screed, no extensions |
| Maximum paving width | 30 ft / 9.14 m | with screed extensions; the extensions ship crated |
| Hopper capacity | 12.5 t | |
| Machine type | Tracked asphalt paver | |
| Configuration | Rubber tracks, with the standard S-10 fixed-width 10 ft (3.05 m) (10 ft) screed. Length, width and height as Roadtec prints them for shipping. | |
Manufacturer documents
- Technical specifications (PDF, RP-195f Rev. 3/23)
- Technical specifications (PDF, RP-195 Rev. 11/21)
- Roadtec product page
Links and figures checked October 2026. Linked from the manufacturer; we do not host them.
Published figures for the configuration shown. Shoes, tyres, buckets, counterweights and options change them, so we confirm the dimensions on your machine before booking.
Every way to ship a Roadtec RP-195, best first
Loaded by Seaway
How we load the Roadtec RP-195
We have dismantled and loaded the Roadtec RP195 for export before. It goes in 1 × 40 ft open top + 3 × 40 ft high cube.
- 1 × 40 ft open top + 3 × 40 ft high cube
- Before loading, as on every paver we put in containers: screed off. Our loading sheet does not list the steps for this one, so the survey confirms them.
From our dismantling and loading records, checked July 2026. Your machine's year, attachments and options can change the boxes; we confirm before booking.
Our loading records come first. The rest is worked out from the dimensions above against container, flat rack and RoRo limits; RoRo depends on a regular sailing to your port.
| # | Best method | Fit | Preparation |
|---|---|---|---|
| 1 | Our usual plan: 1 × 40 ft open top + 3 × 40 ft high cubeBest fit | From our loading records | screed off (typical) |
| 2 | 40 ft flat rack | Out-of-gauge | Ships assembled, blocked and lashed; out-of-gauge surcharge applies (2 ft 4 in / 0.71 m over width, 3 ft 10 in / 1.16 m over height). |
| 3 | RoRo | Where a RoRo lane serves the destination | Drives on assembled where a RoRo lane serves the destination. |
| 4 | Breakbulk | Fits as is | Lifted aboard by crane as breakbulk; used when no flat rack or RoRo option suits the port. |
Will it fit? Published configurations
Roadtec publishes the transport dimensions for more than one configuration; pick yours and the verdict updates.
- Transport envelope
- 20 ft 8 in × 10 ft 2 in × 10 ft 2 in (6.29 × 3.11 × 3.11 m)45,400 lb (20,593 kg)
- Best fit
- 40 ft flat rackOut-of-gauge · 2 ft 4 in / 0.71 m over width, 3 ft 10 in / 1.16 m over height
- 40 ft high-cube door
- 2 ft 6 in / 0.77 m over the door width, 1 ft 9 in / 0.53 m over its heightAfter disassembly, across containers
Only configurations the manufacturer publishes; the survey at pickup confirms the figures before booking.
Roadtec RP-195 generations and how each has shipped
| Generation | Years (approx.) | How Seaway has loaded it |
|---|---|---|
| RP-195e | — | No record yet; measured at pickup and quoted both ways |
Production years are approximate; the serial plate settles the generation, and transport dimensions differ a little between them.
Comparable asphalt pavers from other brands
| Machine | L × W × H (transport) | Weight | Ships |
|---|---|---|---|
| Roadtec RP-195 | 20 ft 8 in × 10 ft 2 in × 10 ft 2 in (6.29 × 3.11 × 3.11 m) | 45,400 lb / 20,593 kg | 1 × 40 ft open top + 3 × 40 ft high cube |
| Vögele SUPER 2100-3i | 21 ft 10 in × 8 ft 4 in × 10 ft 2 in (6.65 × 2.55 × 3.1 m) | 48,400 lb / 21,950 kg | 1 × 40 ft open top + 1 × 40 ft high cube |
| Blaw-Knox PF-5510 | 19 ft 6 in × 10 ft × 9 ft 7 in (5.94 × 3.05 × 2.92 m) | 36,900 lb / 16,760 kg | 1 × 40 ft open top + 1 × 40 ft high cube |
Same machine type within 20% of the weight. Each links to its own page with its published dimensions and verdict.
Where machines like the Roadtec RP-195 go
MexicoTransit 5-14 daysPavers by truck across the border or in open tops to Manzanillo.
Quote to Mexico
AustraliaTransit 28-35 daysStrict biosecurity cleaning; tracks, hopper and screed are washed of soil and asphalt before loading.
Quote to Australia
Saudi ArabiaTransit 18-25 daysHighway pavers for road programmes, in open tops to Dammam or Jeddah.
Quote to Saudi Arabia
Preparing a Roadtec RP-195 for export
- The hopper wings are folded up, the screed raised and locked or taken off, and the conveyors, augers and screed plates cleaned of asphalt.
- Batteries are disconnected and the machine is chocked and lashed through its tie-down points.
Roadtec RP-195 shipping questions
Does a Roadtec RP-195 fit in a shipping container?
Not in one piece: at 10 ft 2 in (3.11 m) wide it is wider than a 40 ft high-cube door (7 ft 8 in / 2.34 m). Taken apart, it goes in 1 × 40 ft open top + 3 × 40 ft high cube, the plan from our loading records.
How much does a Roadtec RP-195 weigh for shipping?
Roadtec lists the Roadtec RP-195 at 45,400 lb (20,593 kg) (weight with the standard screed); the bill of lading uses your machine's own weight.
What are the shipping dimensions of a Roadtec RP-195?
20 ft 8 in × 10 ft 2 in × 10 ft 2 in (6.29 × 3.11 × 3.11 m) (length × width × height) in transport position, from Roadtec's published specifications for the Roadtec RP-195.
What has to come off a Roadtec RP-195 to ship it?
For 1 × 40 ft open top + 3 × 40 ft high cube, typically: screed off. The screed comes off every paver we put in containers and travels crated with its extensions; the survey confirms the rest for your machine. Our crew does the work, crates and labels the loose parts and documents everything for reassembly.
Can a Roadtec RP-195 ship RoRo?
Yes, where a RoRo lane serves your destination port. It drives on under its own power. RoRo from the U.S. reaches fewer countries than containers and flat racks, so we check your port first.
